CD-151Fe/PT Compression driver with DEPLOCEX technology

Beyma
Your price:
€ 102,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
140 Watt
RMS Power
70 Watt
Frequency Response
900 - 20000 Hertz
Sensitivity
110 dB
Impedance
8 Ohm
Voice Coil Diameter
38 mm

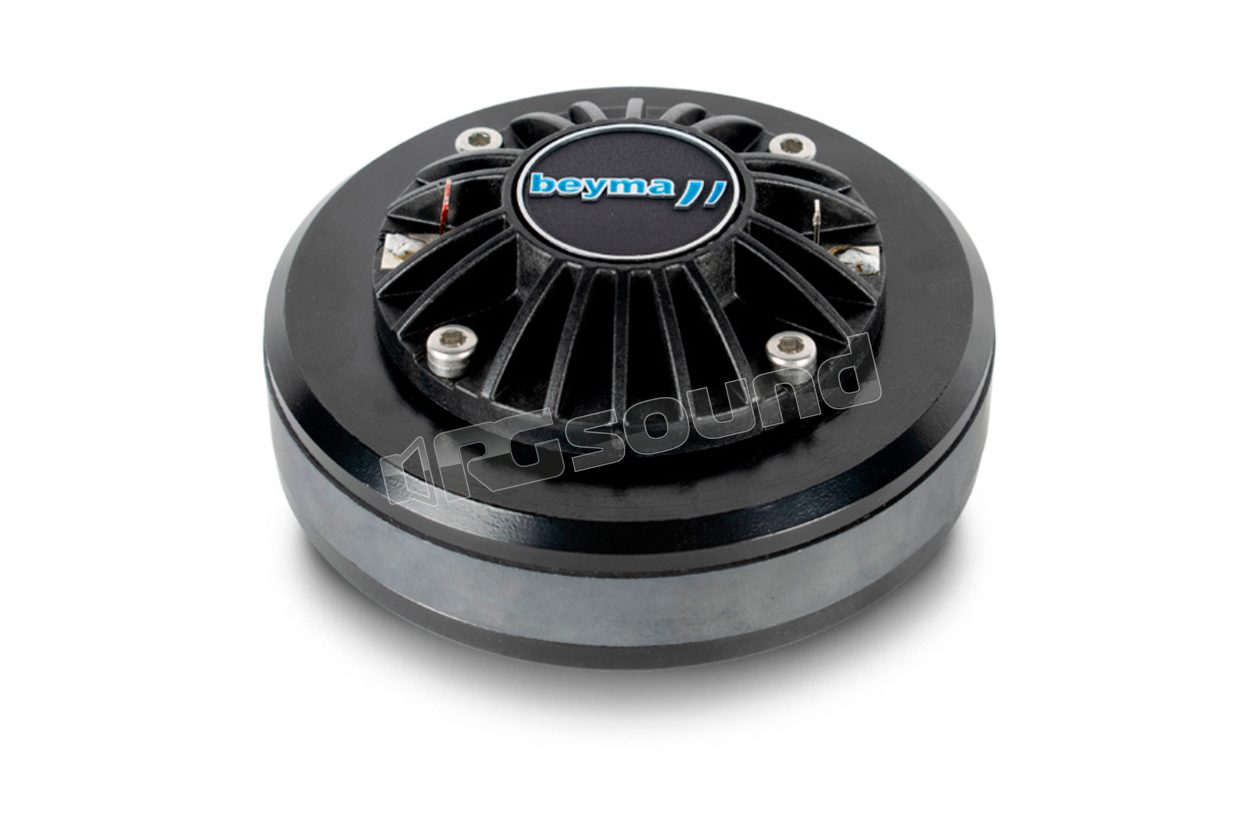

Beyma CD-151Fe/PT Compression Driver

The CD-151Fe/PT are designed for applications in high-quality audio systems where medium-high SPL and minimal distortion are desired. The speakers have a 1" exit throat and a 1.5" voice coil diameter. These speakers are the first to include the Beyma annular diaphragm design with VPEQ technology (patent pending), which allows the driver to operate more linearly and efficiently.

They also include the brand new DEPLOCEX technology which makes them more efficient and resistant to the power compression phenomenon. The Advanced Polyester diaphragm of the CD-151Fe/PT has a softer and more musical sound, thanks to the slight boost in high frequencies as well as high efficiency and excellent transient response thanks to the use of very light materials.

Scheda prodotto

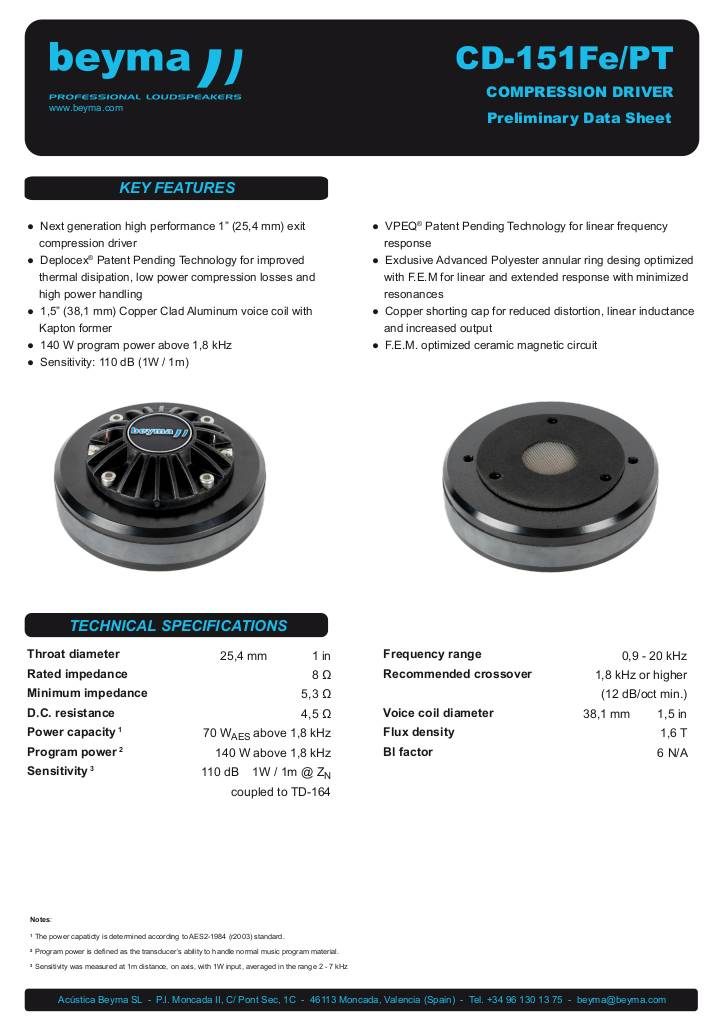

n-20230721124448-cd-151fe-pt-8-oh.pdf

Beyma CD-151Fe/PT Technical Specifications

  • Throat diameter: 1"
  • Nominal impedance: 8 Ohm
  • Minimum impedance: 5.3 ohm
  • Item: 4.5 ohm
  • Permitted power: 70 W AES above 1.8 kHz
  • Program power: 140 W above 1.8 kHz
  • Sensitivity: 110 dB 1W / 1m @ ZN coupled to TD-164 horn
  • Frequency range: 900-20000 Hz
  • Recommended crossover frequency: 1.8 kHz or higher (12 dB/oct min. slope)
  • Voice coil diameter: 38.1 mm 1.5"
  • Flux density: 1.6 T
  • Diaphragm material: advanced polyester
  • External diameter: 102 mm 4.01"
  • Depth: 44.4 mm 1.75"
  • Mounting: 3 threaded M5 holes at 120º with a central diameter of 57 mm (2.24") 2 threaded M5 holes at 180º with a central diameter of 76.2 mm (3").
  • Net weight: 1.3 kg
  • Overall weight: 1.4 kg
  • Magnet: Ferrite
€ 102,00 Price incl. VAT
