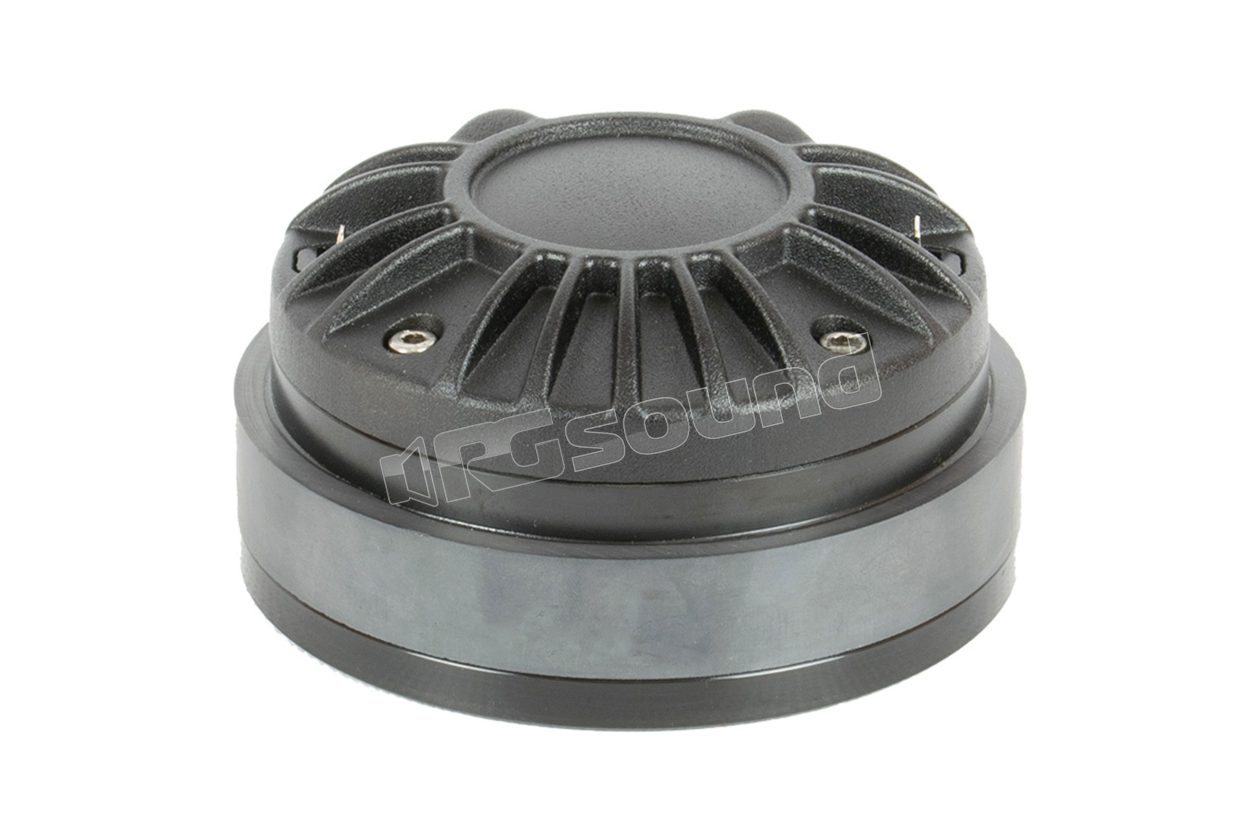

CD-1114Fe 36mm compression driver

Beyma
Your price:
€ 101,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
Other sizes
MAX Power
140 Watt
RMS Power
70 Watt
Frequency Response
700-19000 Hertz
Sensitivity
109 dB
Impedance
8 Ohm
Weight
2 Kg
Installation Depth
58 mm
Voice Coil Diameter
44 mm

Beyma CD-1114Fe 36mm compression driver with 8 Ohm impedance, 110 mm external diameter

Beyma CD-1114Fe technical specifications

Throat diameter 36 mm 1.4 inches
Nominal impedance 8 Ohm
Minimum impedance 5.5 ohm
Ri 4.4 ohm
Power handling 70 W AES above 1.5 kHz
Program power 140 W above 1.5 kHz
Sensitivity 109 dB 1W / 1m @ ZN coupled to TD-365
Frequency range 700-19000 Hz
Recom. crossover frequency 1.5 kHz or above (minimum slope of 12 dB / oct)
Voice coil diameter 44.4 mm / 1.75 inches
Flux density 1.5 T
BL factor 6.6 N / A
Diaphragm material PM4

External diameter 110 mm 4.3 inches
Depth 58 mm 2.3 inches
Mounting quattro threaded holes M6. At 90º distance
Circle with diameter of 101.6 mm (4 inches)
Net weight 1.9 kg 4.18 pounds
Total weight 2 kg 4.4 pounds
Ferrite magnet

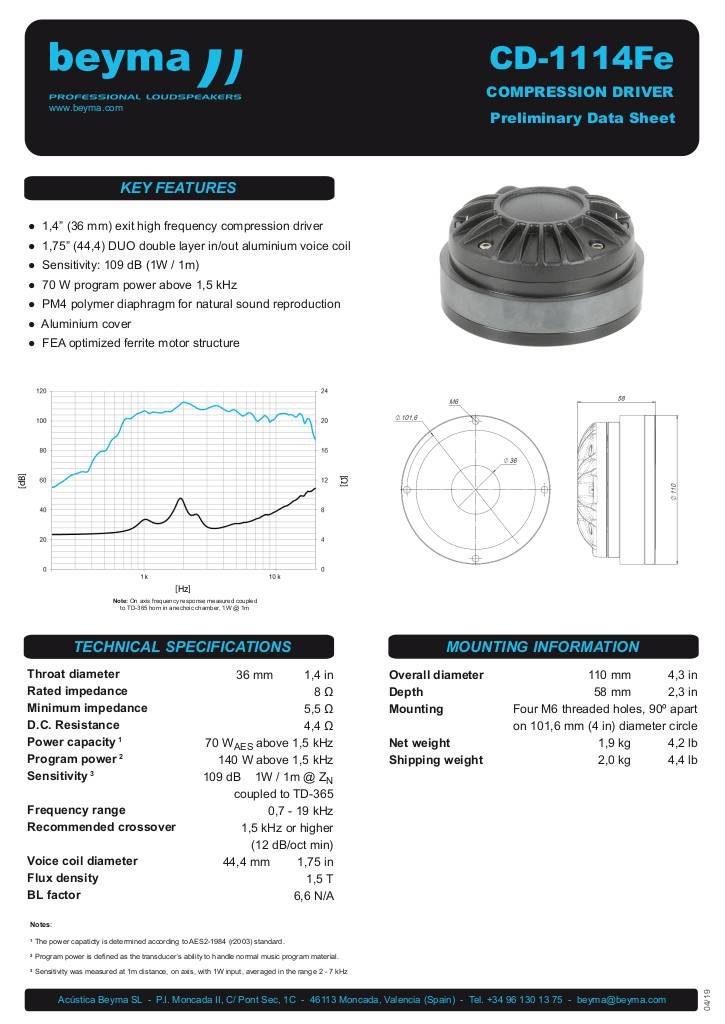

Scheda tecnica

n-20200716160708-beyma-speakers-data-sheet-compression-driver-cd-1114fe.pdf
