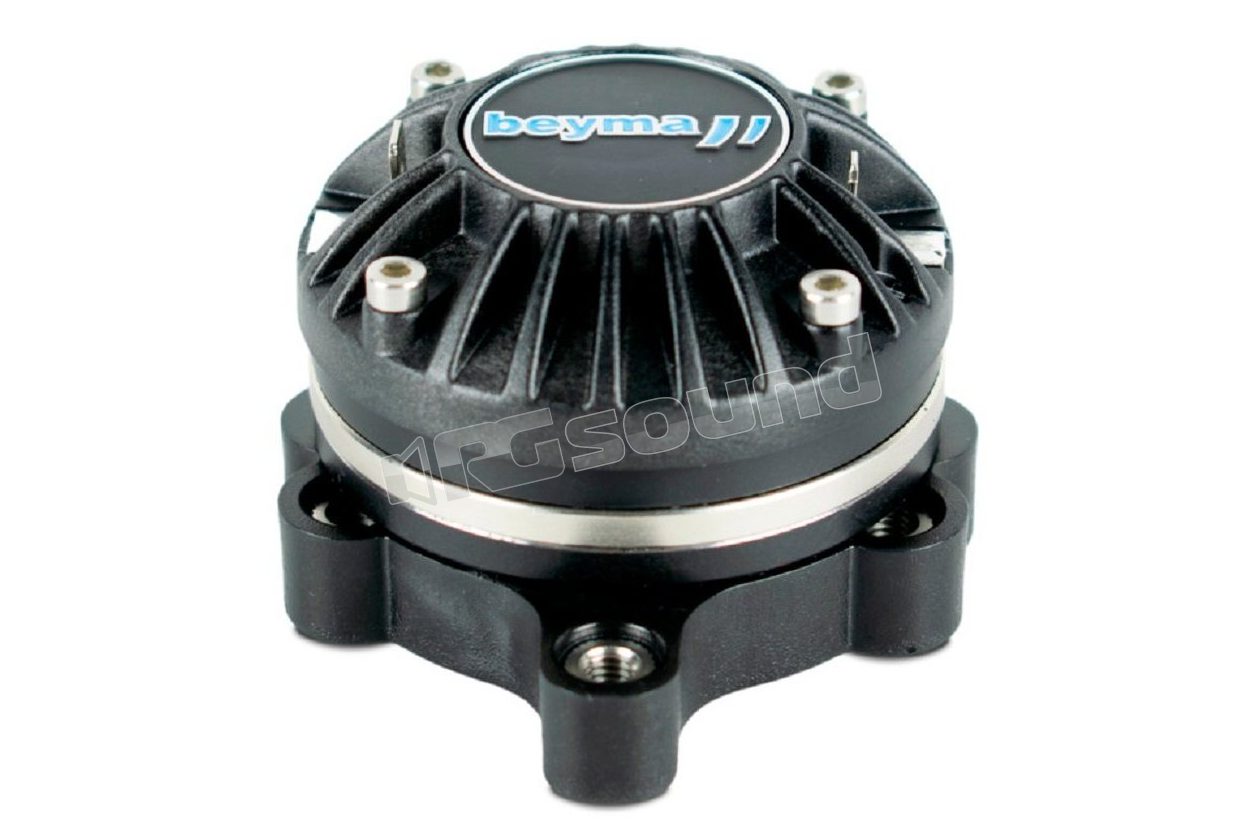

Beyma CD-101ND/PT 1" 8ohm 110dB Neodymium Compression Driver

New generation high performance compression driver with 1" (25.4 mm) output


CD-101ND/PT Features

  • Deplocex® Technology (patent pending) for better heat dissipation, low compression losses at low power and
  • high rated power
  • 1.1" (28 mm) copper-coated aluminum voice coil
  • Program power of 80 W above 2 kHz
  • Sensitivity: 110 dB (1 W / 1 m)

Scheda tecnica

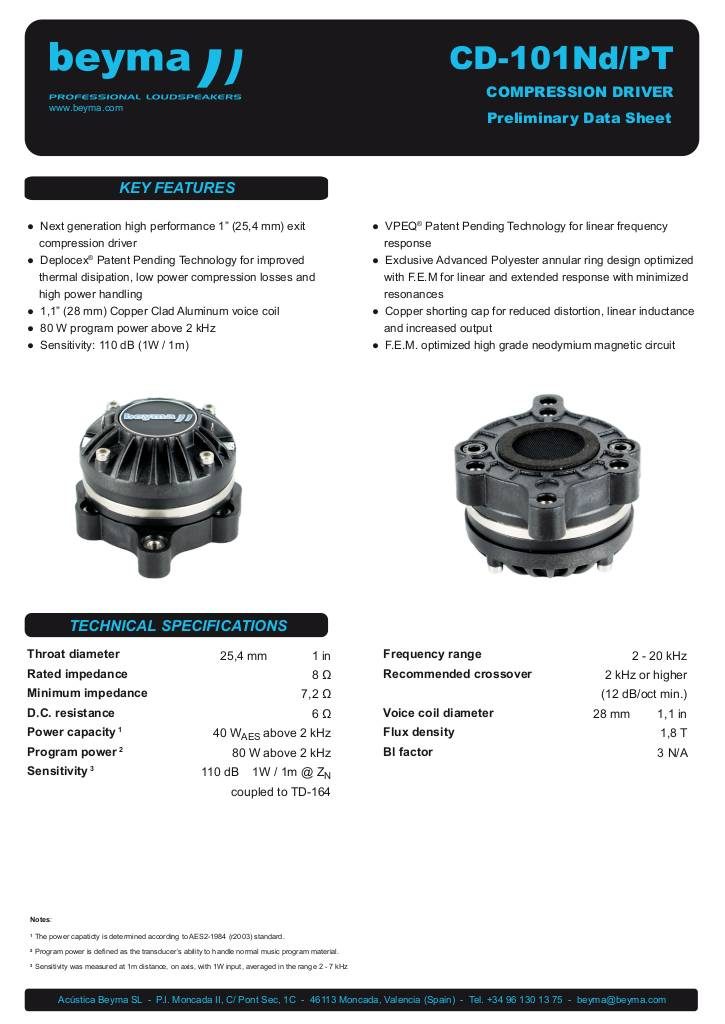

n-20260623103155-cd-101nd-pt.pdf

Beyma CD-101ND/PT Technical Specifications

  • Nominal impedance 8 Ohm
  • Throat diameter 25.4 mm
  • Minimum impedance 7.2 ohm Re 6 ohm
  • Rated power 40 W AES above 2 kHz
  • Program power 80 W above 2 kHz
  • Sensitivity 110 dB 1 W / 1 m @ ZN coupled to horn TD-164
  • Frequency range 2000-20000 Hz
  • Recommended crossover frequency 2 kHz or higher (minimum slope 12 dB/octave)
  • Voice coil diameter 28 mm 1.1 inches
  • Flux density 1.8 T
  • BL factor 3 N/A
  • Diaphragm material: advanced polyester
  • Construction details
  • Outer diameter: 90.4 mm
  • Depth: 44 mm
  • Mounting: three M5 threaded holes, spaced 120° on
  • a circle of 57 mm (2.24 inches) diameter.
  • Two M5 threaded holes, spaced 180° on a circle of 76.2 mm (3 inches) diameter.
  • Net weight 0.3 kg 0.7 lb
  • Total weight 0.6 kg 1.32 lb
  • Neodymium magnet
