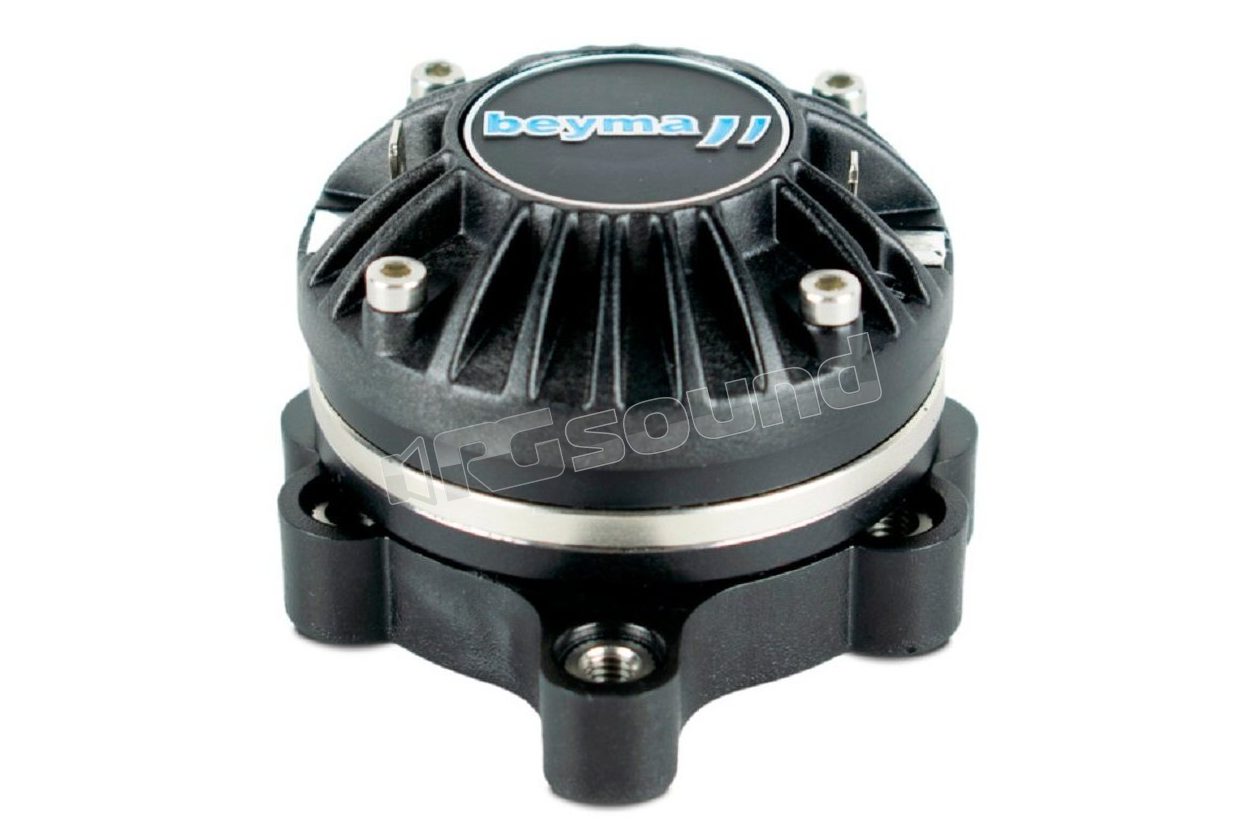

CD-101ND/PK 1" Neodymium Compression Driver 8ohm 110dB

Beyma
Your price:
€ 102,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Beyma CD-101ND/PK 1" 8ohm 110dB Neodymium Compression Driver

New generation high-performance compression driver with 1" (25.4 mm) output


CD-101ND/PK Features

  • Deplocex® Technology (patent pending) for improved
  • thermal dissipation, low compression losses at low power and high power rating
  • 1.1" (28 mm) copper-coated aluminum voice coil
  • Program power of 80 W above 2 kHz
  • Sensitivity: 110 dB (1 W / 1 m)

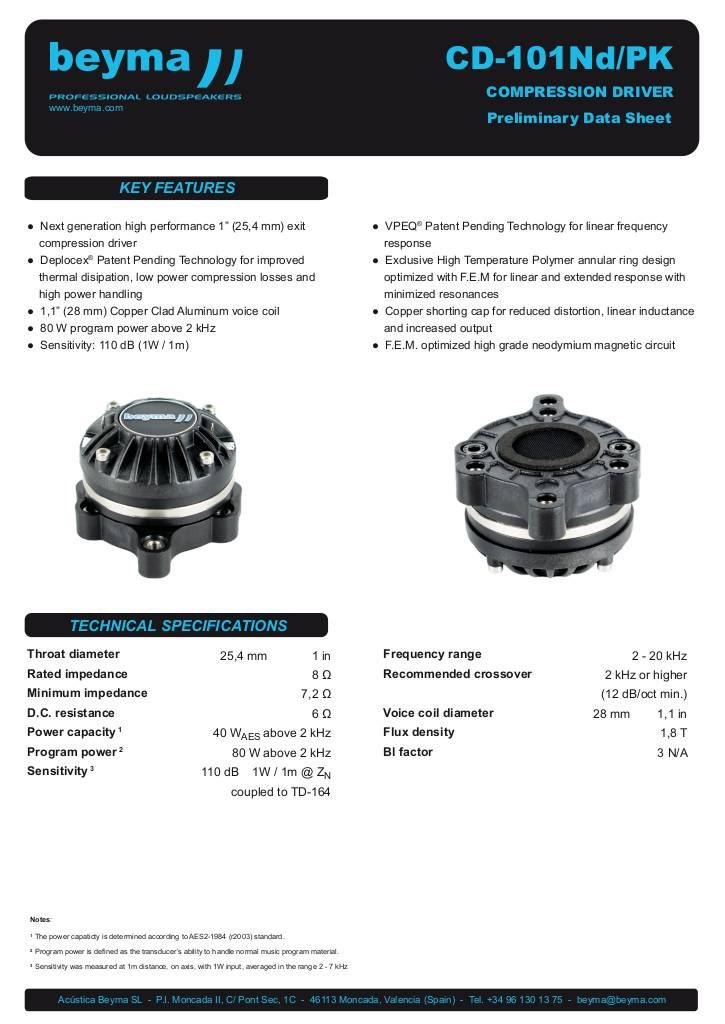

Scheda tecnica

n-20260623103329-cd-101nd-pk.pdf

Beyma CD-101ND/PK Technical Specifications

  • Throat diameter: 25.4 mm
  • Nominal impedance: 8 ohm
  • Minimum impedance: 7.2 ohm (Re 6 ohm)
  • Rated power: 40 W AES above 2 kHz
  • Program power: 80 W above 2 kHz
  • Sensitivity 110 dB 1 W / 1 m @ ZN coupled to TD-164 horn
  • Frequency range 2000-20000 Hz
  • Recommended crossover frequency 2 kHz or higher (minimum slope 12 dB/octave)
  • Voice coil diameter 28 mm
  • Flux density 1.8 T
  • BL factor 3 N/A
  • Diaphragm material: HT polymer
  • Outer diameter: 90.4 mm
  • Depth: 44 mm
  • Mounting: three M5 threaded holes, spaced 120° on
  • a 57 mm (2.24 inch) diameter circle. Two M5 threaded holes, spaced 180° on a 76.2 mm (3 inch) diameter circle.
  • Net weight 0.3 kg
  • Total weight 0.6 kg
  • Neodymium magnet
€ 102,00 Price incl. VAT
