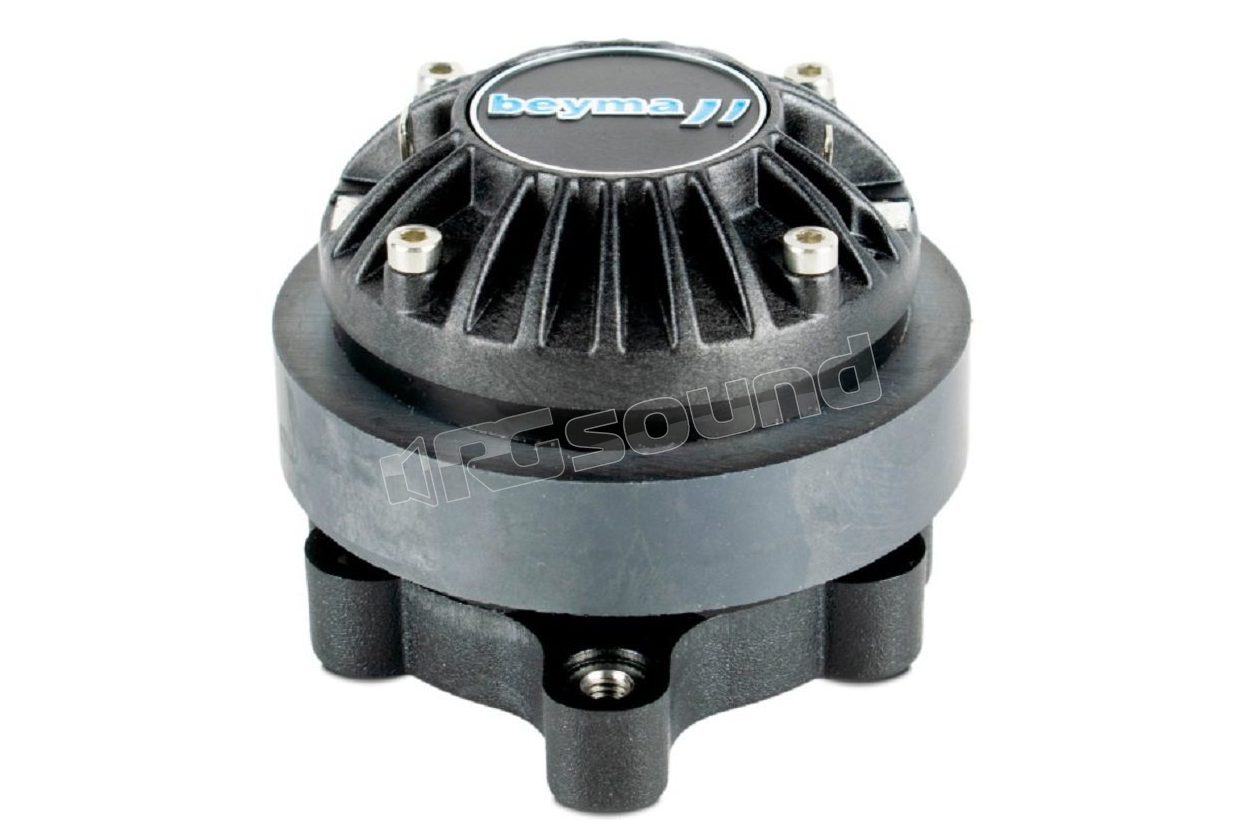

CD-101FE/PK 1" Compression Driver 8ohm 108dB Ferrite

Beyma
Your price:
€ 79,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Beyma CD-101FE/PK 1" 8ohm 108dB Ferrite Compression Driver

New generation high-performance compression driver with 1" (25.4 mm) output

CD-101FE/PK Features

  • Deplocex® Technology (patent pending) for better thermal dissipation, low compression losses at low power and high rated power
  • 1.1" (28 mm) copper-coated aluminum voice coil
  • Program power of 80 W above 2 kHz
  • Sensitivity: 108 dB (1 W / 1 m)
  • VPEQ® Technology (patent pending) for linear frequency response
  • Exclusive high-temperature resistant polymer annular ring design, optimized with F.E.M. for linear and extended response with minimized resonances
  • Copper short circuit cap for reduced distortion, linear inductance and greater output power
  • Ceramic magnetic circuit optimized with F.E.M.

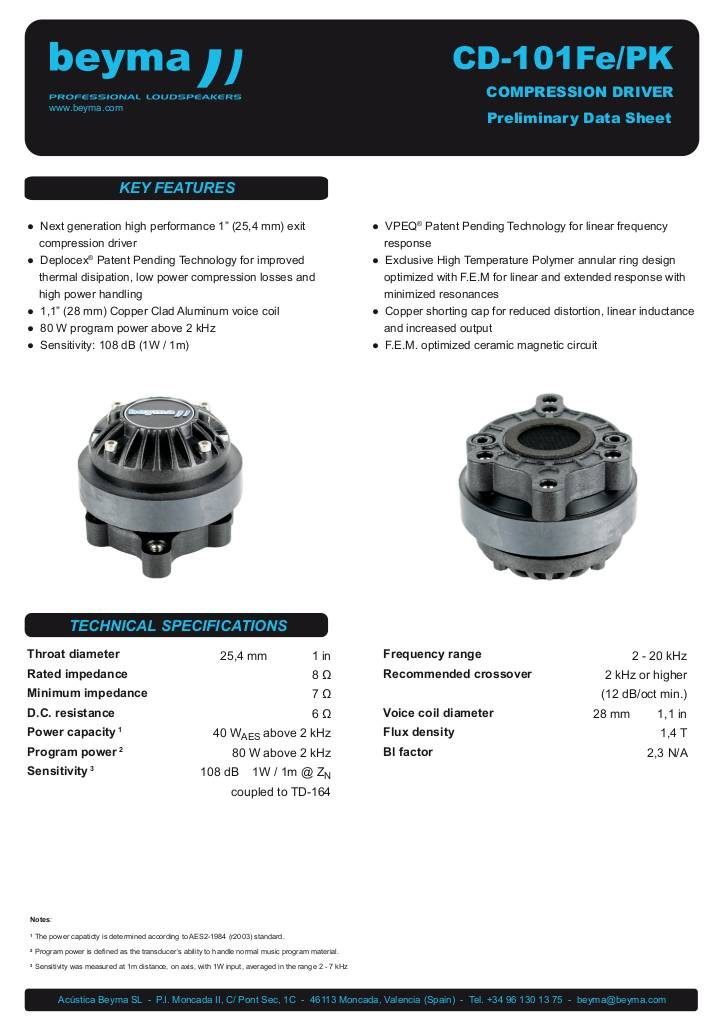

Scheda tecnica

n-20260623112235-cd-101fe-pk.pdf

Beyma CD-101FE/PK Technical Specifications

  • Throat diameter 25.4 mm
  • Nominal impedance 8 Ohm
  • Minimum impedance 7 ohm Re 6 ohm
  • Rated power 40 W AES above 2 kHz
  • Program power 80 W above 2 kHz
  • Sensitivity 108 dB 1 W / 1 m @ ZN coupled to TD-164 horn
  • Frequency range 2000-20000 Hz
  • Recommended crossover frequency 2 kHz or higher (minimum slope 12 dB/octave)
  • Voice coil diameter 28 mm 1.1 inches
  • Flux density 1.4 T
  • BL factor 2.3 N/A
  • Diaphragm material: HT polymer
  • External diameter: 90.4 mm
  • Depth: 55 mm
  • Mounting: three M5 threaded holes, spaced 120° on a 57 mm (2.24 inches) diameter circle. Two M5 threaded holes, spaced 180° on a 76.2 mm (3 inches) diameter circle.
  • Net weight 0.5 kg
  • Total weight 0.8 kg
  • Magnet: ferrite
€ 79,00 Price incl. VAT
