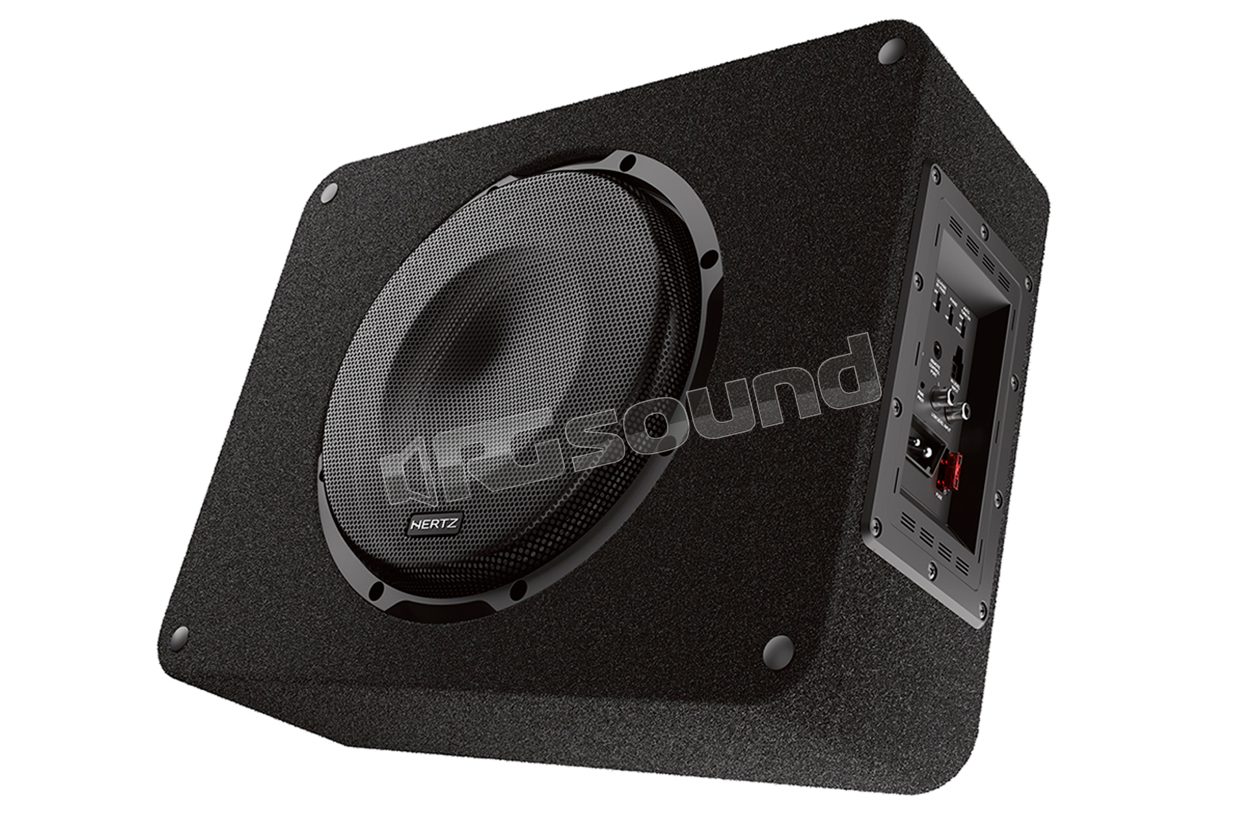

CBA 250 Cento series active subwoofer, ultra-compact size

Hertz
Your price:
€ 449,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
20-200 Hertz
Impedance
4 Ohm
Enclosure Size
440x334x158 mm
Enclosure Type
Sealed Enclosure

HERTZ CBA 250 Active Subwoofer Cento series ultracompact dimensions

The active subwoofer Hertz CBA 250 with 10 inches, is equipped with a high-performance amplification module that enhances all the technologies of the passive enclosure, such as the 2S² (2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultracompact dimensions. The SSP (Sub Smart Plug) terminal block is equipped with a single Plug & Play connector to be able to disconnect the enclosure in a simple and safe way. The amplification module, with power of 250W RMS, is developed with he-li technology (high efficiency/low impedance), which thanks to the absence of the DC-DC voltage booster reaches an efficiency level of 90%.
The 12dB/Oct. Butterworth low pass filter with variable cutoff frequency (50-200 Hz) can be bypassed, if used with an external processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response on the lower side of the spectrum and the Phase control (0 - 180°) completes the equipment. The high-level speaker-in input on the multipolar connector facilitates integration with OEM audio systems, while the low-level input on RCA is dedicated to connection with after-market sources.
CBA 250 Features
  • 12dB/Oct. Butterworth low pass filter with variable cutoff frequency (50-200 Hz), subsonic filter, phase control (0 - 180°) and adjustable bass-boost 0÷6 db @ 45Hz.
  • High-level audio input on multi-pin connector for maximum OEM integration and low-level on RCA for aftermarket sources.
  • ART (Automatic Remote Turn-On) turn-on function selectable between: Remote-in, Hi-level, audio signal.
  • Ultra-low profile enclosure (6.22" / 158 mm) in pneumatic suspension, designed to fully exploit the performance of the 10 inch high impedance driver.
  • Leveling feet with velcro inserts included for a secure grip with the carpet.
  • HRC AP remote control included.
  • Metal grille, for total protection of the subwoofer driver, included.

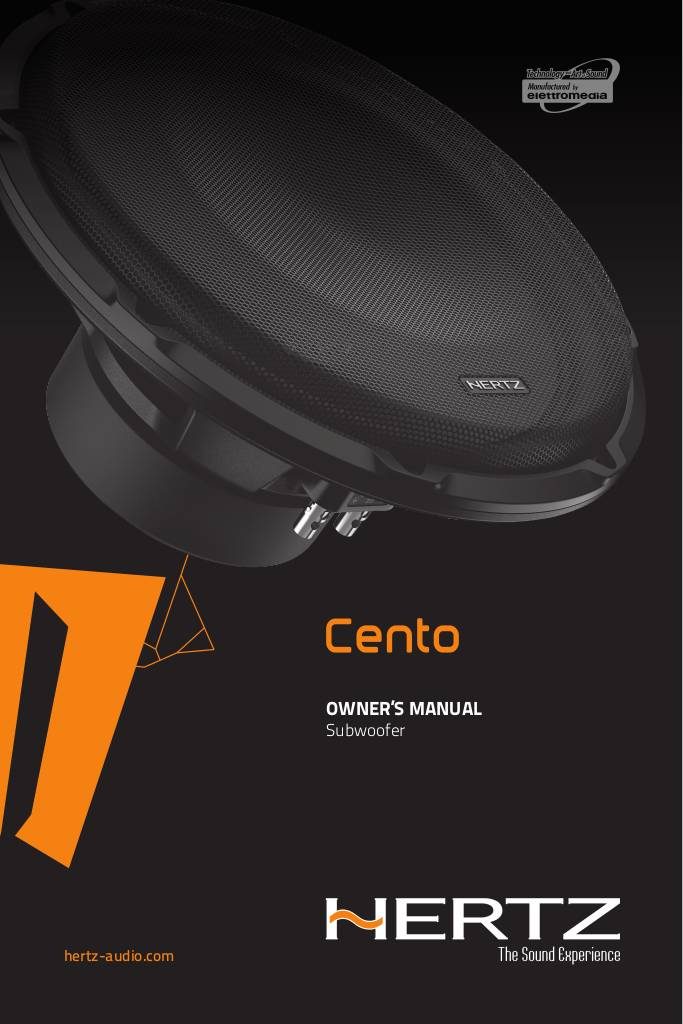

Manuale d'uso

n-20230404093148-manuale-uso-hertz.pdf

HERTZ CBA 250 Technical specifications

  • Dimensions mm (in.) 250 (10)
  • Power handling - continuous W 250
  • Power handling - Peak W 500
  • Impedance Ohm 0.4
  • Active sealed subwoofer enclosure design
  • Voice coil Ø 60 (2.36)
  • Frequency response Hz 20 - 200
  • Magnet dimensions D x d x h mm (in.) 140 x 70 x 30 (5.51 x 2.76 x 1.81)
  • Magnet High flux density Ferrite
  • Cone Pressed paper
  • Xmech mm (in.) 14.75
  • Voice coil Copper
