CB-Z315 D0.7 Dual 0.7 ohm voice coil

DD Audio Digital Designs

Discontinued

Your price:
€ 3190,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
8.000 Watt
RMS Power
1.000 - 4.000 Watt
Impedance
0.7 + 0.7 Ohm
Weight
32,5 Kg
Installation Depth
308 mm

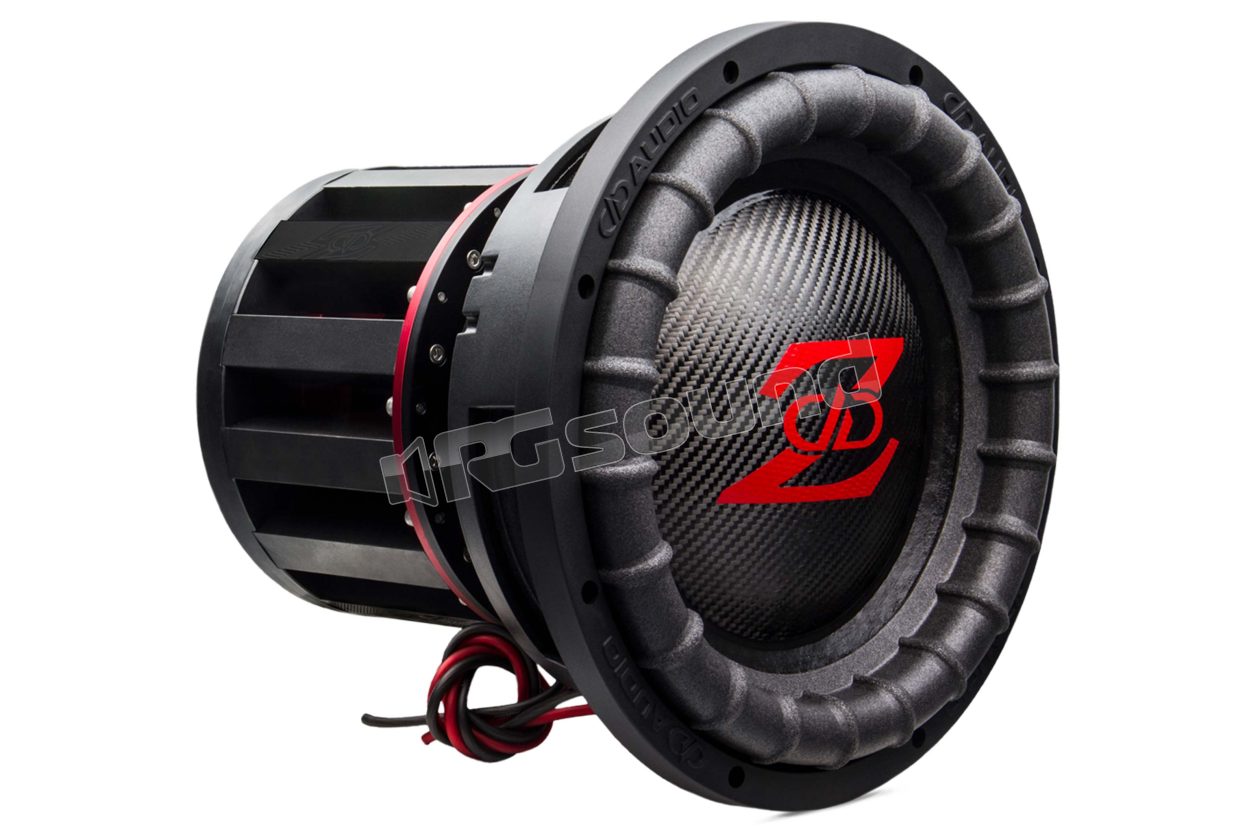

Audio Digital Design CB-Z315 38cm dual voice coil 0.7 Ohm subwoofer

Evolution is not so much a goal as it is a process; one that generally occurs on imperceptible levels, over countless generations, without the guidance of unnatural forces. There are, however, exceptions in which scientists arrange natural influences and break the natural order to force evolution where necessary. As for the future of sound, the finest engineers at DD Audio are pushing such an evolution on their already superb designs, in the form of the Evolution subwoofer line. Every ESP sub is a performance and resilience upgrade like no other.

Since its launch in 2014, the ESP line has been a game changer, thanks to features and components such as:

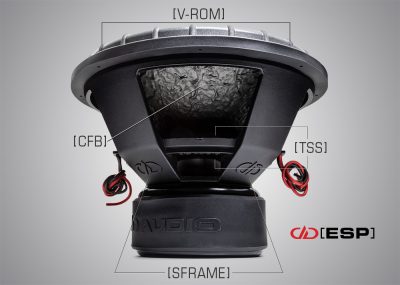

- Carbon Fiber Blend Cone (CFB) - The CFB composition employs a powerful carbon fiber-based mix to give you the highest strength-to-weight ratio of any cellulose cone.

- Vario-density Extended Range Of Motion Surround (V-ROM) - Offers maximum linear control at high excursion while allowing dynamic sounding bass reproduction. The control ribs are compressed to a lower density than the main surround body to enable a continuously varying control system. The more you drive it the more control you get.

- Tuned Spider System (TSS) - Every suspension is tuned for specific performance traits, e.g. High definition, power handling, X-Stiff control.

- Super Frame (SFrame) - Maximizes spider diameter, cone diameter, suspension excursion, acts as a secondary shorting ring and provides additional heat dissipation for better heat flow from the voice coil.

Audio Digital Design CB-Z315 technical specifications

Diameter 380 mm

Voice coil diameter 85 mm

RMS power 1,000 - 4,000 W

Maximum power 8,000 W

Impedance 0.7 + 0.7 Ohm

Installation hole diameter 386 mm

Installation depth 308 mm

Weight 32.5 Kg

Discontinued
