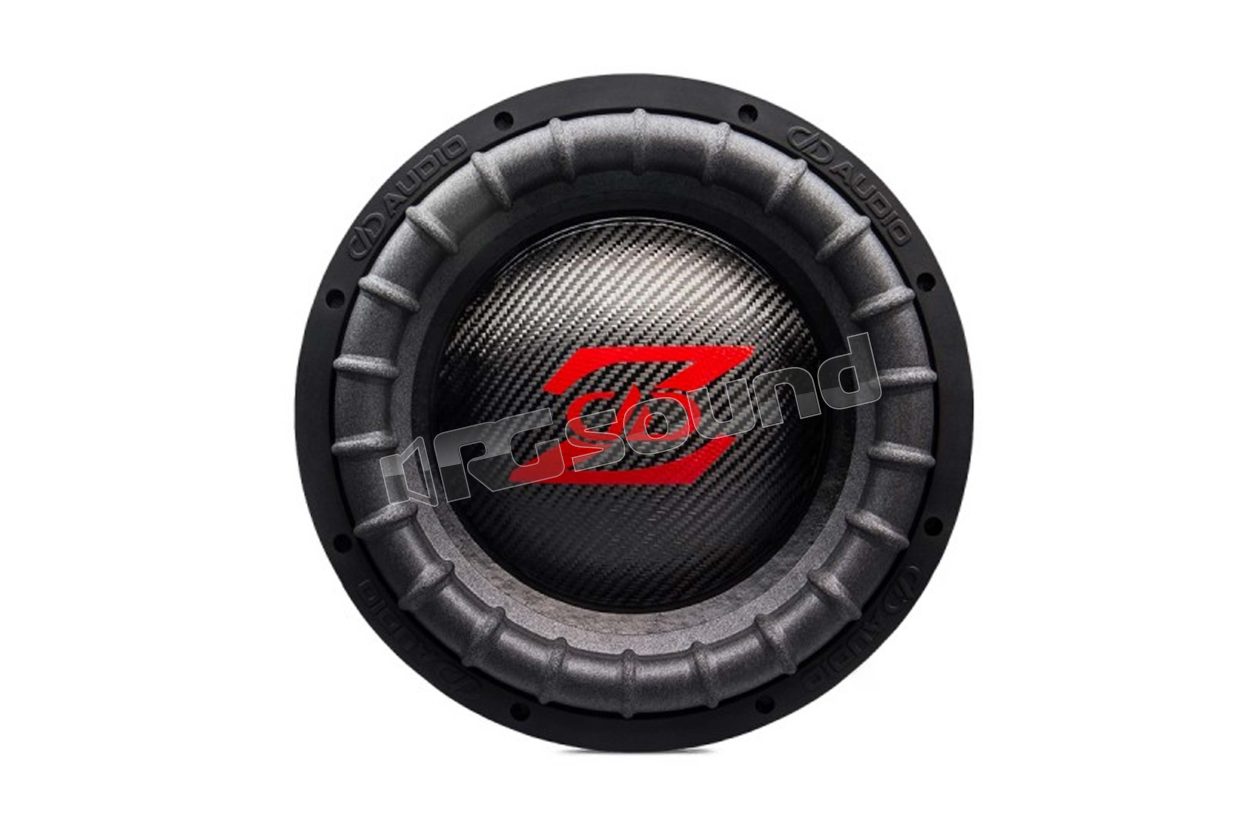

CB-Z312 D1.5 dual 1.5 ohm voice coil

DD Audio Digital Designs

Discontinued

Your price:
€ 2990,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
8.000 Watt
RMS Power
1.000 - 4.000 Watt
Impedance
1.5 + 1.5 Ohm
Weight
31,5 Kg
Installation Depth
292 mm

Audio Digital Design CB-Z312 30cm dual voice coil 1.5 Ohm subwoofer

Evolution is not so much a goal as it is a process; one that generally occurs on imperceptible levels, over countless generations, without the guidance of unnatural forces. There are, however, exceptions where scientists arrange natural influences and break the natural order to force evolution where necessary. As for the future of sound, the best engineers at DD Audio are pushing such an evolution on their already superb designs, in the form of the Evolution subwoofer line. Every ESP sub is a performance and resilience upgrade like no other.

Since its release in 2014, the ESP line has been a game changer, thanks to features and components such as:

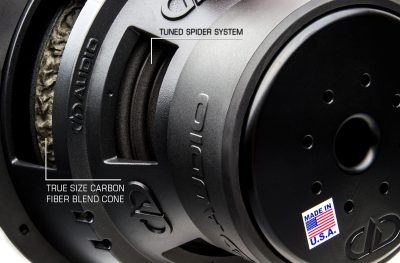

- Carbon Fiber Blend Cone (CFB) - The CFB composition employs a powerful carbon fiber-based blend to give you the highest strength-to-weight ratio of any cellulose cone.

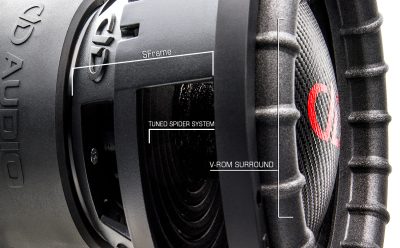

- Vario-density Extended Range Of Motion Surround (V-ROM) - Offers maximum linear control at high excursion while allowing dynamic sounding bass reproduction. The control ribs are compressed to a lower density than the main surround body to allow for a continuously variable control system. The more you push it, the more control you get.

- Tuned Spider System (TSS) - Each suspension is tuned for specific performance traits, e.g. High definition, power handling, X-Stiff control.

- Super Frame (SFrame) - Maximizes spider diameter, cone diameter, suspension excursion, functions as a secondary shorting ring, and provides additional heat dissipation for better heat flow from the coil.

Audio Digital Design CB-Z312 technical specifications

Diameter 300 mm

Voice coil diameter 85 mm

RMS power 1,000 - 4,000 W

Maximum power 8,000 W

Impedance 1.5+1.5 Ohm

Installation hole diameter 309 mm

Installation depth 292 mm

Weight 31.5 Kg

Discontinued
