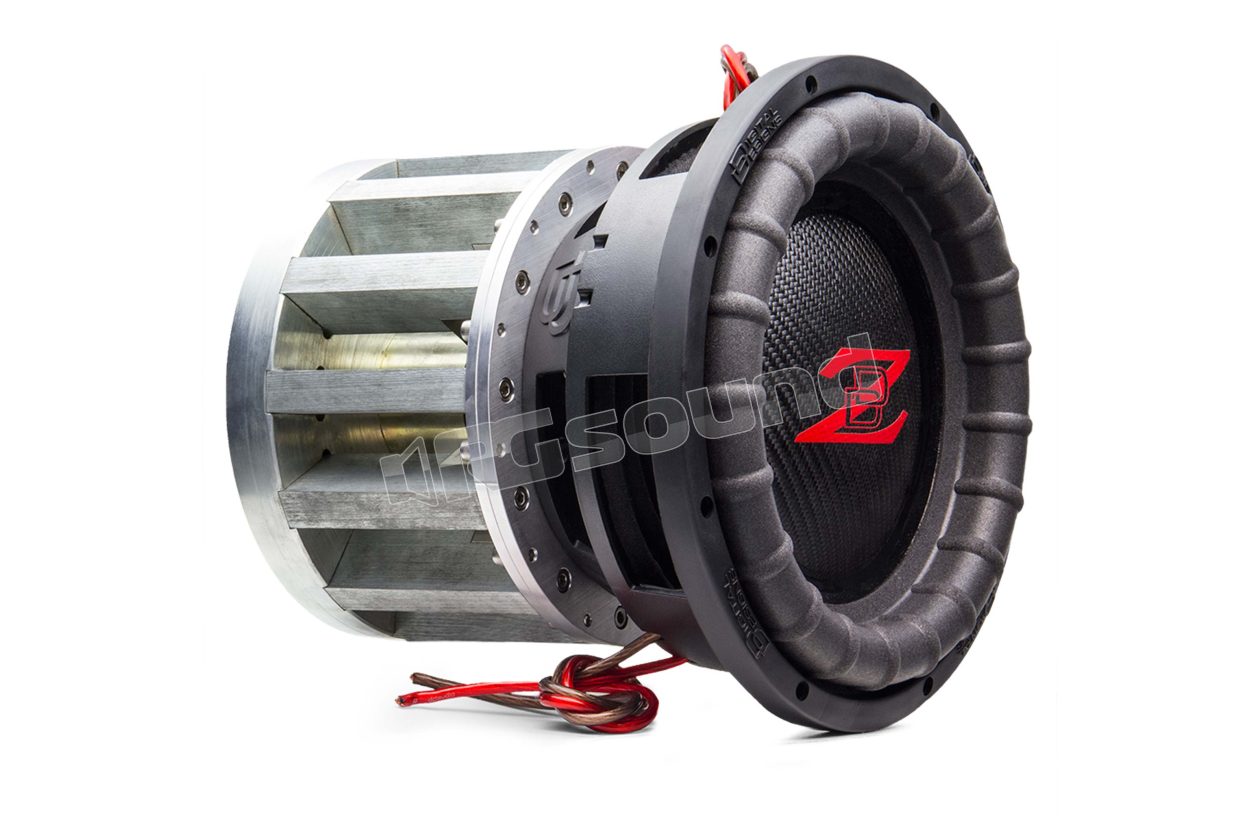

CB-Z310 (ESP) D0.5 Dual 0.5 ohm voice coil

DD Audio Digital Designs

Discontinued

Your price:
€ 2890,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
8.000 Watt
RMS Power
1.000 - 4.000 Watt
Impedance
0.5 + 0.5 Ohm
Weight
31 Kg
Installation Depth
269 mm

Audio Digital Design CB-Z310 (ESP) D0.5 subwoofer 25cm dual voice coil 0.5 Ohm

Since its release in 2014, the ESP line has been a turning point, thanks to features and components such as:

- Carbon Fiber Blend Cone (CFB) - The CFB composition employs a powerful carbon fiber-based mix to give you the highest strength/weight ratio of any cellulose cone.

- Vario-density Extended Range Of Motion Surround (V-ROM) - Offers maximum linear control at high excursion while allowing dynamic-sounding bass reproduction. The control ribs are compressed to a lower density than the main surround body to allow a continuously varying control system. The more you drive it the more control you get.

- Tuned Spider System (TSS) - Each suspension is tuned for specific performance traits, e.g. High definition, power handling, X-Stiff control.

- Super Frame (SFrame) - Maximizes spider diameter, cone diameter, suspension excursion, functions as a secondary shorting ring and provides additional heat dissipation for better heat flow from the coil.

Audio Digital Design CB-Z310 technical specifications

Diameter 250 mm

Voice coil diameter 85 mm

RMS Power 1,000 - 4,000 W

Maximum Power 8,000 W

Impedance 0.5 + 0.5 Ohm

Installation hole diameter 259 mm

Installation depth 269 mm

Weight 31 kg

Discontinued
