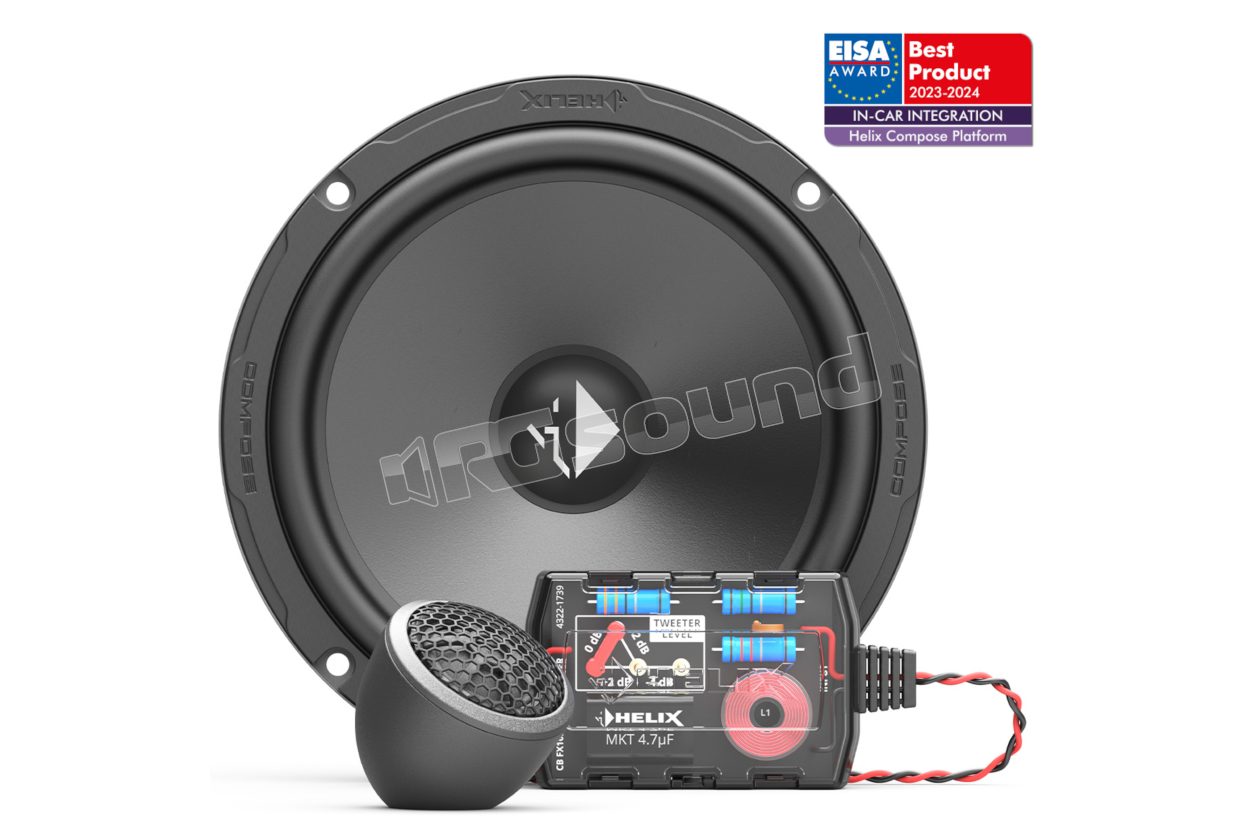

CB K165.2-S3 Compose Basic - 165 mm 2-way speaker kit

Helix
Your price:
€ 187,00
Price per pack (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
60 - 22.000 Hertz
Woofer Size
165 mm
Tweeter Size
20 millimetri
MAX Power
120 Watt
RMS Power
80 Watt
Sensitivity
92 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

HELIX CB K165.2-S3 Compose Basic - 165 mm 2-way speaker kit

Revolutionize your musical experience in your car with the Helix CB K165.2-S3 Kit, the speaker that brings sound perfection to every composition. This kit represents the pinnacle of evolution in universal speaker systems. With innovative materials, advanced technologies and intelligent engineering, the kit offers high efficiency, exceptional sound quality and surprising dynamics, all perfectly adapted to your vehicle. HELIX COMPOSE is the future of car audio.

The BASIC component system is your gateway to the world of HELIX COMPOSE. Each component is designed for perfect harmony and works with HELIX and MATCH amplifiers to ensure maximum performance. The BASIC tweeter integrates intelligent mechanical technologies, ensuring secure connection and professional installation. HELIX COMPOSE is synonymous with intelligent technology, with extraordinary efficiency thanks to 3 Ohm technology. This technology integrates perfectly with HELIX and MATCH amplifiers, offering a tangible advantage in terms of efficiency and sound pressure. Some models are also available in optional 2 Ohm variants, ensuring optimal performance in combination with the appropriate amplifier.

The COMPOSE woofer-midrange of the BASIC series combines high efficiency with exceptional sound quality. The lightweight yet resistant polypropylene cone delivers outstanding performance, while the robust basket is designed with ventilation holes for optimal cooling. Powerful magnets ensure ideal impulse response, while the soft polyurethane dust cap optimizes frequency response. The compact design fits perfectly in tight spaces. In the sonic world of HELIX COMPOSE, precise highs are essential. The BASIC tweeter uses a silk-coated dome and a high-efficiency neodymium magnet for crystal-clear reproduction and unique dynamics in the high frequencies.

The crossover offers 4-stage tweeter level adjustment with 12 dB slope for optimal adaptation to installation. Integrated tweeter protection ensures safety and reliability. The crossover provides optimal frequency distribution, ensuring harmonious sound imaging and an engaging experience.

FlexMount20 is the adapter ring that makes it possible to install FlexMount COMPOSE speakers in a wide range of vehicles. The universal tweeter thus becomes a specific component for your vehicle, guaranteeing optimized installation and superb acoustic experience.

Compatibility

  • FlexMount20

CB K165.2-S3 Features

  • 2-way speaker kit that combines high efficiency and exceptional sound performance
  • 3 Ohm technology to maximize amplifier power
  • Compact design for seamless installation even in tight spaces
  • 0.75" / 20 mm tweeter with silk dome for bright and clear high response
  • Very efficient neodymium magnet for high linearity of magnetic flux
  • Compact design and various mounting options to meet numerous installation needs
  • Mounting brackets for flush and angled installation are included with delivery
  • Designed for FlexMount20 adapters, available as optional, which allow acoustically optimized and professional integration into the vehicle's original mounting locations.
  • 6.5" / 165 mm midbass with lightweight polypropylene cone that provides essential rigidity for exceptional sound performance.
  • Robust steel basket with additional ventilation holes for better cooling of the voice coil and high power handling
  • Powerful magnet system for optimal impulse control
  • Polyurethane dust cap for optimized frequency response in the upper midrange area
  • Separate high-quality crossover with compact dimensions for easy integration
  • 4-stage tweeter level adjustment with integrated tweeter protection for optimal adaptation of highs to mounting position
  • Extended fine tuning - with 12 dB slope for the tweeter

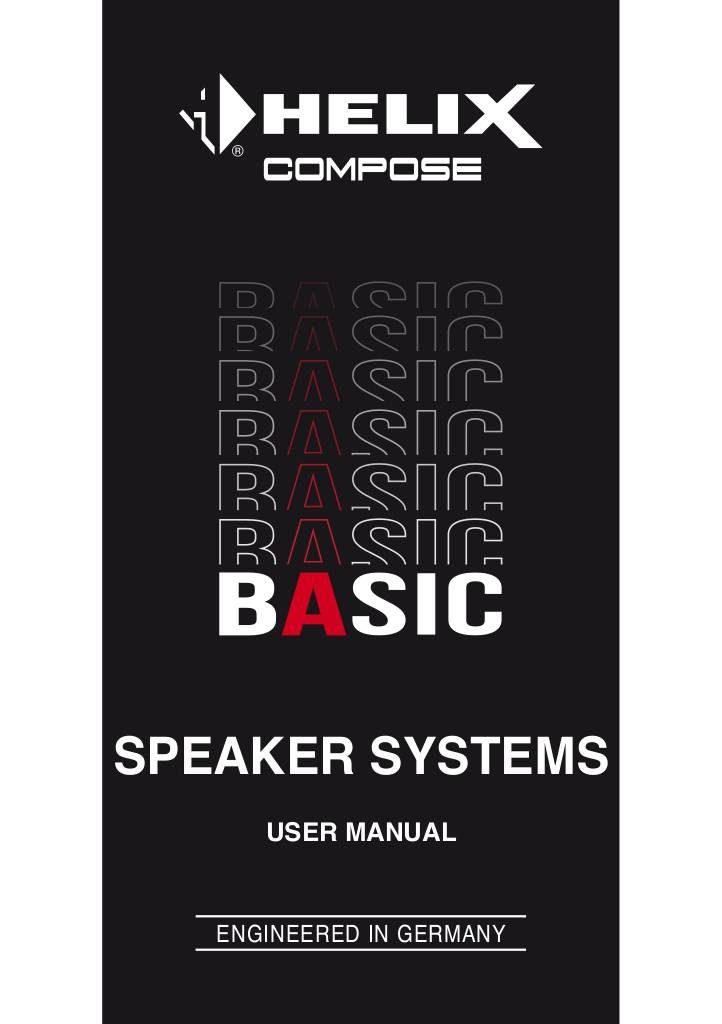

Manuale d'uso

n-20230831100032-manuale-cb-k165-2-s3.pdf

2 CB T20FM-S Tweeters 2 CB W165-S3 Midbass 2 CB FX165.2 Crossovers 2 tweeter mounting accessories Mounting material

HELIX CB K165.2-S3 Technical Specifications

  • RMS / Max power handling P 80 / 120 Watt
  • Frequency response 60 Hz - 22,000 Hz
  • Impedance Z 3 Ω
  • Sensitivity SPL
    • 92 dB @ 2.83V / 1m
    • 88 dB at 1W / 1m
  • Outer diameter ø
    • Tweeter: 32.0 mm / 1.26"
    • Midbass: 166.0 mm / 6.54
  • Installation diameter ø
    • Tweeter: 32.0 mm / 1.26"
    • Midbass: 143.0 mm
  • Installation depth
    • Tweeter: 9.8 mm
    • Midbass: 61.4 mm
  • Crossover dimensions 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"


Midbass

  • Impedance Z 3 Ω
  • DC resistance Re 3.0 Ω
  • Resonance frequency Fs 62 Hz
  • Mechanical Q factor Qms 4.50
  • Electrical Q factor Qes 0.90
  • Total Q factor Qts 0.75
  • Compliance Cms 520 μm/N
  • Equivalent air volume Vas 14.5 L
  • Force factor B*l 4.1 Tm
  • Cone area Sd 141 cm2
  • Moving mass Mms 13.2 g
  • Mechanical resistance Rms 1.10 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil winding height 8.9 mm
  • Maximum linear excursion Xmax +/- 2.5 mm


Tweeter

  • Impedance Z 4 Ω
  • Resonance frequency Fs 2000 Hz
  • Voice coil diameter ø 20 mm


Features

  • Ultra compact tweeter, silk dome, neodymium magnet and FlexMount20
  • Midbass Injected polypropylene cone
  • Crossover Tweeter: 12 dB high-pass, protection and level adjustment
