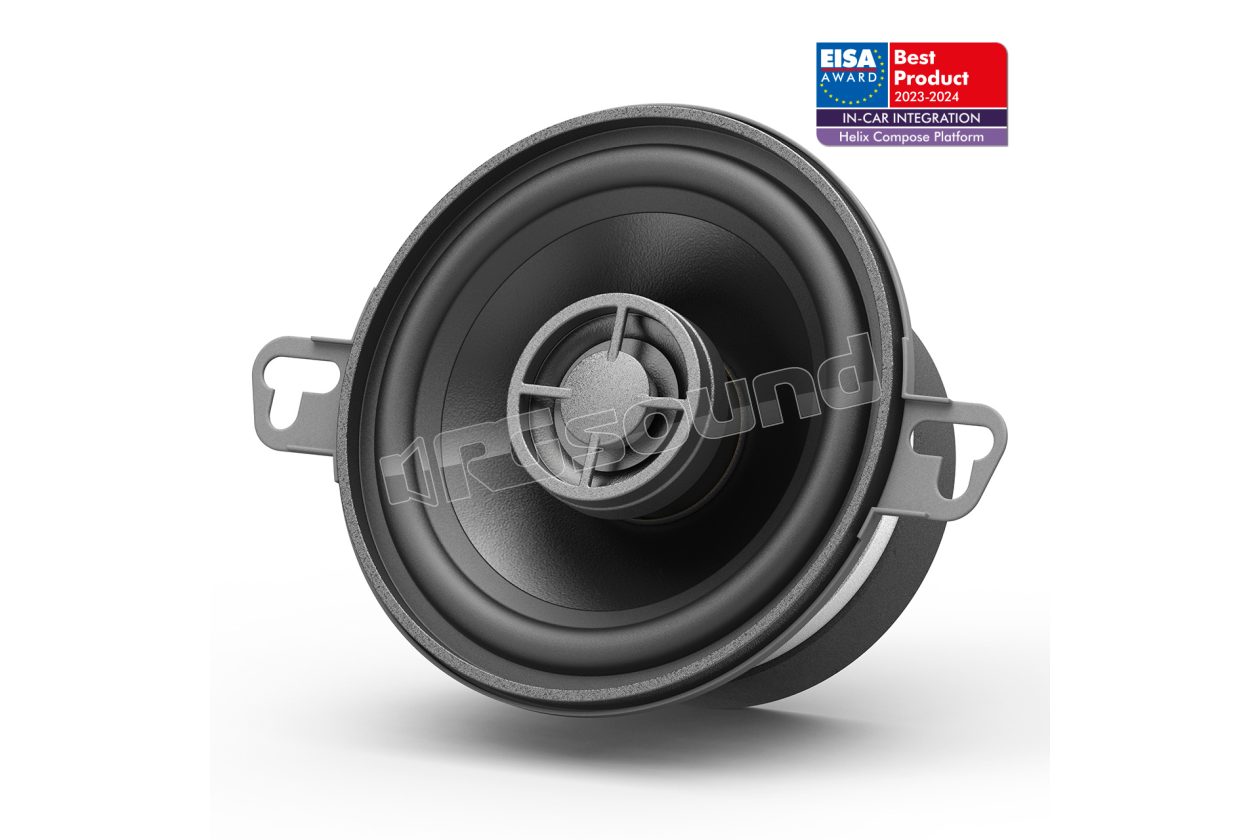

CB C87.2-S3 Compose Basic - 87mm 2-way coaxial system

Helix
Your price:
€ 93,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
4x6''
Coaxial Type
2-way
Frequency Response
110 - 22.000 Hertz
MAX Power
60 Watt
RMS Power
40 Watt
Sensitivity
88 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

HELIX CB C87.2-S3 Compose Basic - 87mm 2-way coaxial system

The Helix CB C87.2-S3 series was born from the commitment to tackle the increasingly challenging demands of modern automotive technology, combined with HELIX's constant pursuit of intelligent solutions. This series represents the evolution of proven universal speaker systems, integrating innovative materials, cutting-edge technologies and intelligent engineering. The goal is to provide an exceptional sound experience inside the vehicle, combining the advantages of universal loudspeakers with those of vehicle-specific systems. All components are designed to work in harmony with HELIX and MATCH amplifiers, ensuring maximum performance and power.
High Efficiency
HELIX COMPOSE adopts a high-efficiency 3 Ohm technology. This technological choice integrates perfectly with HELIX and MATCH amplifiers, offering tangible advantages in terms of efficiency and maximum sound pressure. Some models are also available as optional 2 Ohm variants, optimizing performance in combination with compatible amplifiers.
COMPOSE Midrange Driver
The CB C87.2-S3 series features a COMPOSE midrange driver characterized by a lightweight yet stable polypropylene diaphragm, which delivers exceptional sound performance. The robust basket includes ventilation holes for optimal cooling. The powerful magnet system guarantees ideal impulse response, while the soft polyurethane dust cap optimizes frequency response in the upper midrange area. The compact design is ideal for installations in tight spaces.
PEI Dome Tweeter
For precise reproduction of high frequencies, the CB C87.2-S3 series uses a PEI dome tweeter and a high-efficiency neodymium magnet. The result is a unique dynamic in high-frequency reproduction and crystal-clear sound.
CB C87.2-S3 Features
  • 2-way coaxial loudspeaker system that combines high efficiency with exceptional sound performance
  • 3 Ohm technology to maximize amplifier output power
  • Compact design for seamless installation even in tight spaces
  • 0.5" / 13 mm tweeter with PEI dome for accurate treble response
  • Highly efficient neodymium magnet for high magnetic flux linearity
  • 3.4" / 87 mm midrange with lightweight polypropylene cone that provides essential rigidity for exceptional sound performance
  • Robust steel basket with additional ventilation holes for better voice coil cooling and high power handling
  • Powerful magnet system for optimized impulse response
  • Integrated Crossover with 6 dB slope

Manuale d'uso

n-20230830172128-manuale-cb-c87-2-s3.pdf

2 CB C87.2-S3 1 Mounting material

HELIX CB C87.2-S3 Technical Specifications

  • Power handling RMS / Max. P 40 / 60 Watt
  • Frequency response 110 Hz - 22,000 Hz
  • Impedance Z 3 Ω
  • Sensitivity SPL
    • 88 dB @ 2.83V / 1m
    • 84 dB at 1W / 1m
  • External diameter ø 86.9 mm / 3.43
  • Installation diameter ø 79.0 mm / 3.11"
  • Installation depth 42.0 mm / 1.65


Midrange

  • Impedance Z 3 Ω
  • DC resistance Re 3.0 Ω
  • Resonance frequency Fs 92 Hz
  • Mechanical Q factor Qms 3.80
  • Electrical Q factor Qes 0.74
  • Total Q factor Qts 0.62
  • Compliance Cms 820 μm/N
  • Equivalent air volume Vas 1.5 L
  • Force factor B*l 2.9 Tm
  • Cone area Sd 36 cm2
  • Moving mass Mms 3.6 g
  • Mechanical resistance Rms 0.52 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil winding height 8.3 mm
  • Maximum linear excursion Xmax +/- 2.2 mm


Tweeter

  • Voice coil diameter ø 13 mm


Features

  • Tweeter PEI dome and neodymium magnet
  • Midrange Injected polypropylene cone
  • Integrated Crossover, 6 dB high-pass
