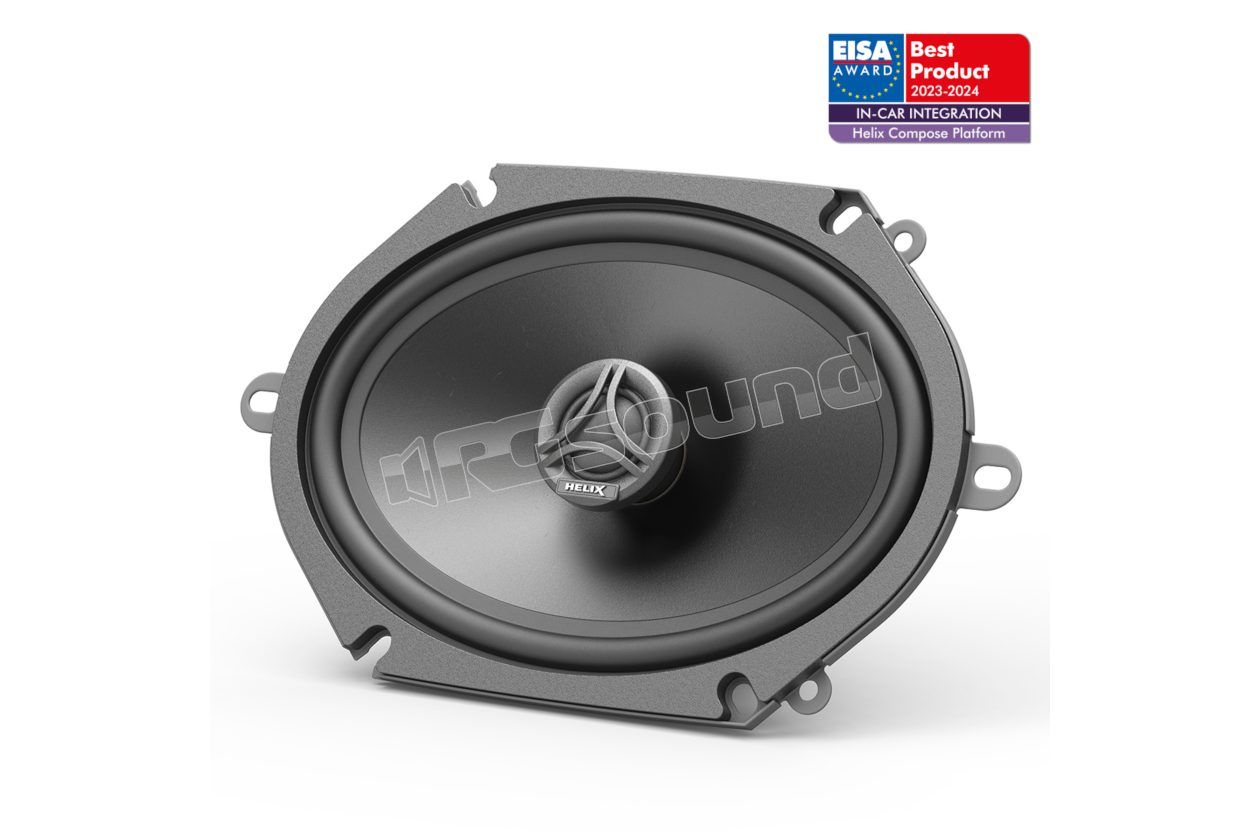

CB C690.2-S3 Compose Basic - 6"x9" 2-way coaxial system

Helix
Your price:
€ 159,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
2-way
Frequency Response
50 - 22.000 Hertz
MAX Power
150 Watt
RMS Power
100 Watt
Sensitivity
94 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

HELIX CB C690.2-S3 Compose Basic - 6"x9" 2-way coaxial system

The Helix CB C690.2-S3 series was born from the commitment to address the increasingly challenging demands of modern automotive technology, combined with HELIX's constant search for intelligent solutions. This series represents the evolution of proven universal speaker systems, integrating innovative materials, cutting-edge technologies and intelligent engineering. The goal is to deliver an exceptional sound experience inside the vehicle, combining the benefits of universal diffusers with those of vehicle-specific systems. All components are designed to work in harmony with HELIX and MATCH amplifiers, guaranteeing maximum performance and power.
High Efficiency
HELIX COMPOSE adopts a high-efficiency 3 Ohm technology. This technological choice integrates perfectly with HELIX and MATCH amplifiers, offering tangible benefits in terms of efficiency and maximum sound pressure. Some models are also available as optional 2 Ohm variants, optimizing performance in combination with compatible amplifiers.
COMPOSE Midwoofer Driver
The CB C690.2-S3 series features a COMPOSE midwoofer driver characterized by a light but stable polypropylene diaphragm, which delivers exceptional sound performance. The robust basket includes ventilation holes for optimal cooling. The powerful magnet system guarantees ideal impulse response, while the soft polyurethane dust cap optimizes frequency response in the upper midrange. The compact design is ideal for installations in tight spaces.
Silk Dome Tweeter
For precise high-frequency reproduction, the CB C690.2-S3 series uses a coated silk dome tweeter and a high-efficiency neodymium magnet. The result is a unique dynamic in high-frequency reproduction and crystal-clear sound.
CB C690.2-S3 Features
  • 2-way coaxial speaker system that combines high efficiency with exceptional sound performance
  • 3 Ohm technology to maximize amplifier output power
  • Compact design for seamless installation even in tight spaces
  • 1" / 25 mm tweeter with silk dome for accurate high-frequency response
  • Highly efficient neodymium magnet for high linear magnetic flux
  • 6 x 9" / 160 x 230 mm woofer with light polypropylene cone that provides essential rigidity for exceptional sound performance.
  • Robust steel basket with additional ventilation holes for better voice coil cooling and high power handling
  • Powerful magnet system for optimized impulse response
  • Integrated Crossover with 6 dB slope

Manuale d'uso

n-20230830170748-manuale-cb-c570-2-s3.pdf

2 CB C690.2-S3 2 Grilles 1 Mounting material

HELIX CB C690.2-S3 Technical Specifications

  • Power handling RMS / Max. P 100 / 150 Watt
  • Frequency response 50 Hz - 22,000 Hz
  • Impedance Z 3 Ω
  • Sensitivity SPL
    • 94 dB @ 2.83V / 1m
    • 90 dB at 1W / 1m
  • Outer diameter ø 235.0 x 164.0 mm / 9.25 x 6.46"
  • Installation diameter ø 218.4 x 150.6 mm / 8.60 x 5.93"
  • Installation depth 74.8 mm (2.95")

Woofer

  • Impedance Z 3 Ω
  • DC resistance Re 3.1 Ω
  • Resonance frequency Fs 56 Hz
  • Mechanical Q factor Qms 3.73
  • Electrical Q factor Qes 0.63
  • Total Q factor Qts 0.54
  • Compliance Cms 420 μm/N
  • Equivalent air volume Vas 24.7 L
  • Force factor B*l 5.7 Tm
  • Cone area Sd 205 cm2
  • Moving mass Mms 19.1 g
  • Mechanical resistance Rms 1.81 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil winding height 9.0 mm
  • Maximum linear excursion Xmax +/- 2.0 mm

Tweeter

  • Voice coil diameter ø 25 mm
€ 159,00 Price incl. VAT
