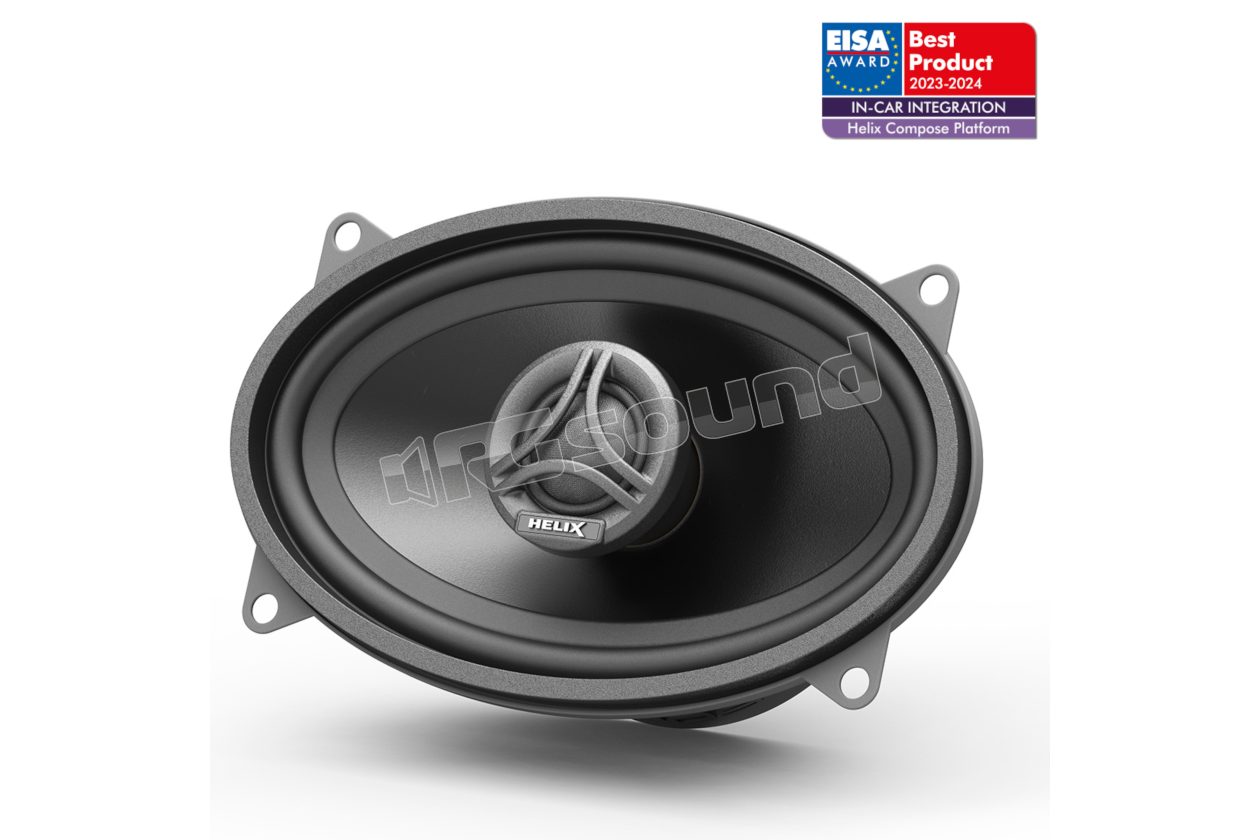

CB C460.2-S3 Compose Basic - 4"x6" 2-way coaxial system

Helix
Your price:
€ 112,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
4x6''
Coaxial Type
2-way
Frequency Response
90 - 22.000 Hertz
MAX Power
75 Watt
RMS Power
50 Watt
Sensitivity
90 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

HELIX CB C460.2-S3 Compose Basic - 4"x6" 2-way coaxial system

The Helix CB C460.2-S3 series was born from the commitment to tackle the increasingly challenging demands of modern automotive technology, combined with HELIX's constant pursuit of intelligent solutions. This series represents the evolution of proven universal speaker systems, integrating innovative materials, cutting-edge technologies and intelligent engineering. The goal is to offer an exceptional sound experience inside the vehicle, combining the advantages of universal diffusers with those of vehicle-specific systems. All components are designed to work in harmony with HELIX and MATCH amplifiers, guaranteeing maximum performance and power.
High Efficiency
HELIX COMPOSE adopts a high-efficiency 3 Ohm technology. This technological choice integrates perfectly with HELIX and MATCH amplifiers, offering tangible advantages in terms of efficiency and maximum sound pressure. Some models are also available as optional 2 Ohm variants, optimizing performance in combination with compatible amplifiers.
COMPOSE Midwoofer Driver
The CB C460.2-S3 series features a COMPOSE midwoofer driver characterized by a light but stable polypropylene diaphragm, which delivers exceptional sound performance. The robust basket includes ventilation holes for optimal cooling. The powerful magnet system guarantees ideal impulse response, while the soft polyurethane dust cap optimizes frequency response in the upper mid-range. The compact design is ideal for installation in tight spaces.
Silk Dome Tweeter
For precise high-frequency reproduction, the CB C460.2-S3 series uses a tweeter with a coated silk dome and a high-efficiency neodymium magnet. The result is unique dynamics in high-frequency reproduction and crystal-clear sound.
CB C460.2-S3 Features
  • 2-way coaxial speaker system that combines high efficiency with exceptional sound performance
  • 3 Ohm technology to maximize amplifier output power
  • Compact design for hassle-free installation even in tight spaces
  • 0.75" / 20 mm tweeter with silk dome for accurate treble response
  • Very efficient neodymium magnet for high magnetic flux linearity
  • 4 x 6" / 100 x 150 mm midwoofer with lightweight polypropylene cone that provides the essential rigidity for exceptional sound performance.
  • Robust steel basket with additional ventilation holes for better voice coil cooling and high power handling
  • Powerful magnet system for optimized impulse response
  • Integrated crossover with 6 dB slope

Manuale d'uso

n-20230830164308-manuale-cb-c460-2-s3.pdf

2 CB C460.2-S3 1 Mounting material

HELIX CB C460.2-S3 Technical specifications

  • Power handling RMS / Max. P 50 / 75 Watt
  • Frequency response 90Hz - 22,000Hz
  • Impedance Z 3 Ω
  • Sensitivity SPL
    • 90 dB @ 2.83V / 1m
    • 86 dB at 1W / 1m
  • External diameter ø 153.5 x 97.5 mm / 6.04 x 3.84"
  • Installation diameter ø 141.9 x 86.9 mm / 5.58 x 3.42"
  • Installation depth 48.9 mm

Midwoofer

  • Impedance Z 3 Ω
  • DC resistance Re 3.1 Ω
  • Resonance frequency Fs 120 Hz
  • Mechanical Q factor Qms 6.18
  • Electrical Q factor Qes 1.14
  • Total Q factor Qts 0.96
  • Compliance Cms 204 μm/N
  • Equivalent air volume Vas 1.7 L
  • Force factor B*l 4.2 Tm
  • Cone area Sd 77 cm2
  • Moving mass Mms 8.7 g
  • Mechanical resistance Rms 1.06 kg/s
  • Voice coil diameter ø 25 mm
  • Voice coil winding height 8.9 mm
  • Maximum linear excursion Xmax +/- 2.5 mm

Tweeter

  • Voice coil diameter ø 20 mm

Features

  • Tweeter Silk dome and neodymium magnet
  • Midwoofer Injected polypropylene cone
  • Crossover Integrated, 6 dB high-pass
€ 112,00 Price incl. VAT
