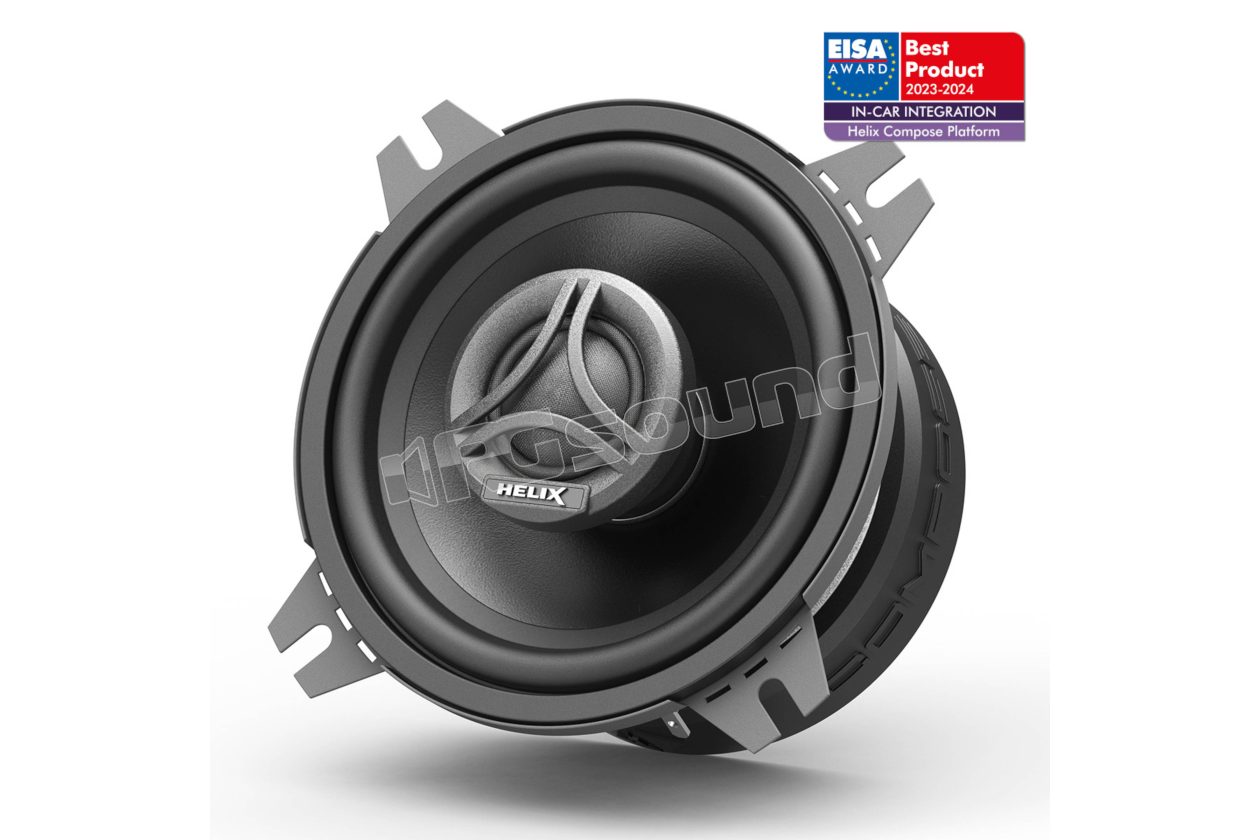

CB C100.2-S3 Compose Basic - 100mm 2-way coaxial system

Helix
Your price:
€ 112,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
100 - 2000 Hertz
MAX Power
90 Watt
RMS Power
60 Watt
Sensitivity
82 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

HELIX CB C100.2-S3 Compose Basic - 2-Way Coaxial System

The Helix CB C100.2-S3 series was born from the commitment to address the increasingly demanding challenges of modern automotive technology, combined with HELIX's constant search for intelligent solutions. This series represents the evolution of proven universal speaker systems, integrating innovative materials, cutting-edge technologies and intelligent engineering. The goal is to offer an exceptional sound experience inside the vehicle, combining the advantages of universal diffusers with those of vehicle-specific systems. All components are designed to work in harmony with HELIX and MATCH amplifiers, ensuring maximum performance and power.
High Efficiency
HELIX COMPOSE adopts a 3 Ohm high-efficiency technology. This technological choice integrates perfectly with HELIX and MATCH amplifiers, offering tangible benefits in terms of efficiency and maximum sound pressure. Some models are also available as optional 2 Ohm variants, optimizing performance in combination with compatible amplifiers.
COMPOSE Midrange Driver
The CB C100.2-S3 series features a COMPOSE midrange driver characterized by a light but stable polypropylene diaphragm, which offers exceptional sound performance. The robust basket includes ventilation holes for optimal cooling. The powerful magnet system ensures ideal impulse response, while the soft polyurethane dust cap optimizes frequency response in the upper midrange. The compact design is ideal for installations in tight spaces.
Silk Dome Tweeter
For precise reproduction of high frequencies, the CB C100.2-S3 series uses a tweeter with silk-coated dome and a high-efficiency neodymium magnet. The result is unique dynamics in high-frequency reproduction and crystal-clear sound.
CB C100.2-S3 Features
  • 2-way coaxial speaker system that combines high efficiency with exceptional sound performance
  • 3 Ohm technology to maximize amplifier output power
  • Compact design for seamless installation even in tight spaces
  • 0.75" / 20 mm tweeter with silk dome for accurate treble response
  • Highly efficient neodymium magnet for high magnetic flux linearity
  • 4" / 100 mm midrange with light polypropylene cone that provides the rigidity needed to achieve exceptional sound performance.
  • Robust steel basket with additional ventilation holes for better voice coil cooling and high power handling
  • Powerful magnet system for optimized impulse response
  • Integrated Crossover with 6 dB slope

Manuale d'uso

n-20230830150132-manuale-cb-c100-2-s3.pdf

2 CB C100.2-S3 1 mounting material

HELIX CB C100.2-S3 Technical Specifications

  • Power Handling RMS / Max. P 60 / 90 Watt
  • Frequency Response 100Hz - 2,000Hz
  • Impedance Z 3 Ω
  • Sensitivity SPL 86 dB @ 2.83V/1m
  • 82 dB at 1W / 1m
  • Outer Diameter ø 99.2 mm 3.91
  • Installation Diameter ø 89.5 mm/3.52
  • Installation Depth 48.9 mm
Midrange
  • Impedance Z 3 Ω
  • DC Resistance Re 3.0 Ω
  • Resonance Frequency Fs 113 Hz
  • Mechanical Q Factor Qms 4.97
  • Electrical Q Factor Qes 1.05
  • Total Q Factor Qts 0.87
  • Compliance Cms 272 μm/N
  • Equivalent Air Volume Vas 0.8 L
  • Force Factor B*l 3.9 Tm
  • Cone Area Sd 45 cm2
  • Moving Mass Mms 7.2 g
  • Mechanical Resistance Rms 1.04 kg/s
  • Voice Coil Diameter ø 25 mm
  • Voice Coil Winding Height 8.9 mm
  • Maximum Linear Excursion Xmax +/- 2.5 mm
Tweeter
  • Voice Coil Diameter ø 20 mm
