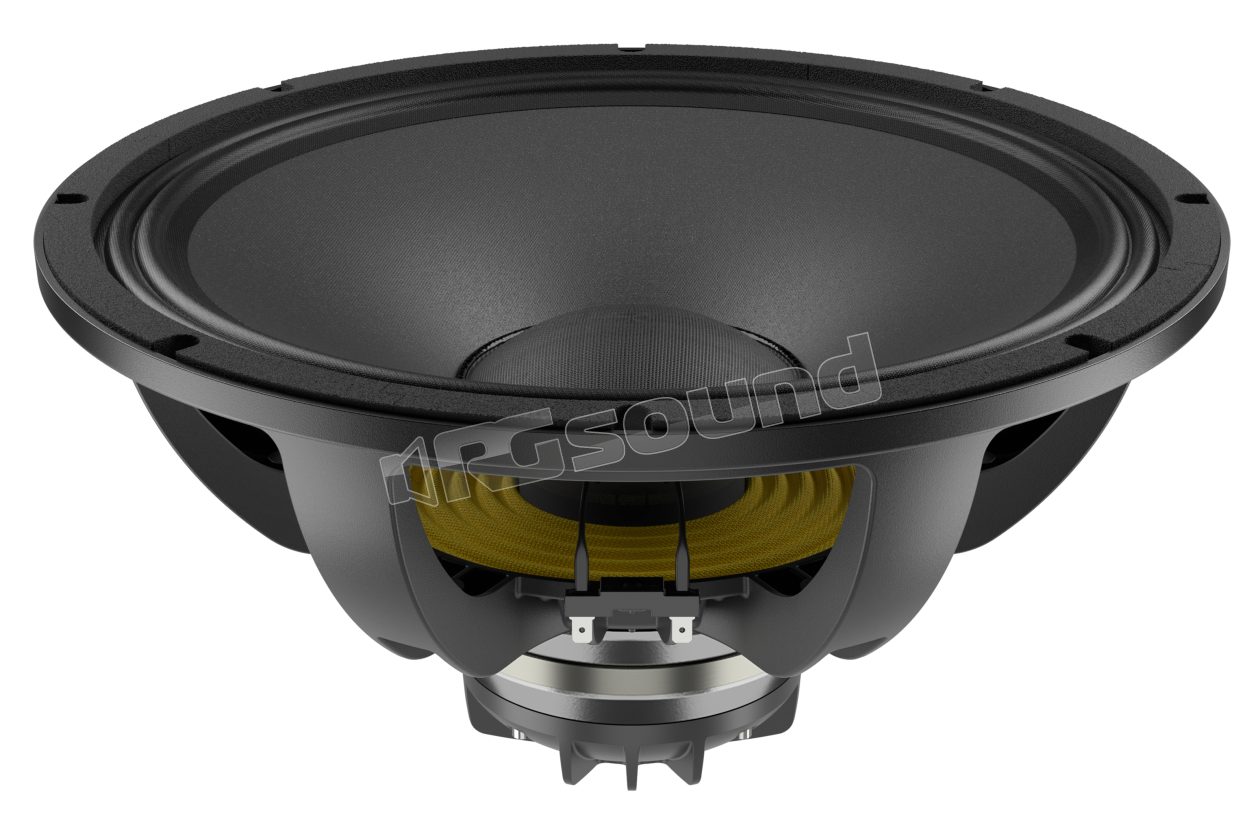

CAN153.00T full range speaker 8 Ohm, diameter 38cm (15'')

LaVoce
Your price:
€ 498,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
45 - 4000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
5,7 Kg
Installation Depth
181 mm
Voice Coil Diameter
75 mm

LaVoce CAN153.00T 15" full range speaker with common neodymium magnet for high and low frequencies, aluminum basket

Main characteristics of the LaVoce CAN153.00T speaker

  • 3 inch copper LF voice coil
  • 3 inch HF voice coil wrapped on the edge in CCA
  • Sensitivity 99 dB/SPL
  • Rated power 800 watts
  • Common motor optimized with FEM, patented phaseplug and diaphragm IIS
  • Frequency range 45 to 18,000 Hz
  • Nominal coverage 80°
  • Titanium/polyimide composite diaphragm for high frequencies
  • Dual aluminum demodulation rings
  • Compact and lightweight design

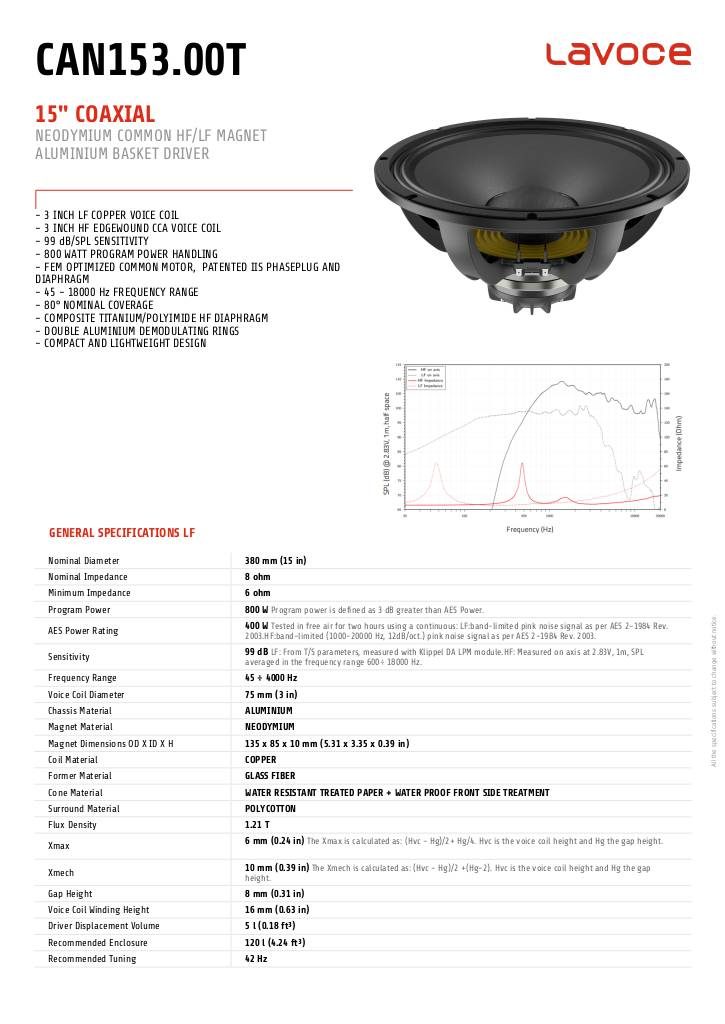

Scheda tecnica

n-20260923092723-lavoce-can153-00t.pdf

LaVoce CAN153.00T technical specifications

  • Nominal diameter 380 mm (15 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 6 ohm
  • Program power 800 W
  • Nominal AES power 400 W
  • Sensitivity 99 dB
  • Frequency range 45 ÷ 4000 Hz
  • Voice coil diameter 75 mm (3 inches)
  • Frame material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions (outer diameter x inner diameter x height) 135 x 85 x 10 mm (5.31 x 3.35 x 0.39 inches)
  • Coil material COPPER
  • Core material FIBERGLASS
  • Cone material WATER RESISTANT TREATED PAPER + WATERPROOF TREATMENT ON FRONT SIDE
  • Surround material POLYCOTTON
  • Flux density 1.21 T
  • Xmax 6 mm (0.24 in)
  • Xmech 10 mm (0.39 in)
  • Air gap height 8 mm (0.31 inches)
  • Voice coil winding height 16 mm (0.63 inches)
  • Driver displacement volume 5 l (0.18 cubic feet)
  • Recommended acoustic enclosure 120 l (4.24 cubic feet)
  • Recommended tuning 42 Hz
  • HF HF Output 36 mm (1.4 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 7.8 ohm
  • Program power 160 W
  • Nominal AES power 80 W
  • Sensitivity 105 dB
  • Frequency range 600 ÷ 18000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Coil material CCA wrapped on edge
  • Support material KAPTON
  • HF dome material TITANIUM
  • Surround material POLYIMIDE
  • Flux density 1.85 T
  • Recommended crossover 1200 Hz
  • DC resistance (Re) 5.2 ohm
  • Diaphragm area (Sd) 855 cm² (132.53 in²)
  • Resonance frequency (Fs) 46.8 Hz
  • Moving mass (Mms) 89.8 g (3.17 oz)
  • Compliance (Cms) 0.13 mm/N
  • Force factor (BxL) 18 N/A
  • Mechanical Q factor (Qms) 5.5
  • Electrical Q factor (Qes) 0.42
  • Total Q factor (Qts) 0.39
  • Equivalent air volume (Vas) 133.1 l (4.7 ft³)
  • Voice coil inductance (Le) 0.84 mH
  • Reference efficiency (Eta 0) 3.1 %
  • Bandwidth-efficiency product (EBP) 110 Hz
  • Net weight 5.74 kg (12.7 lb)
