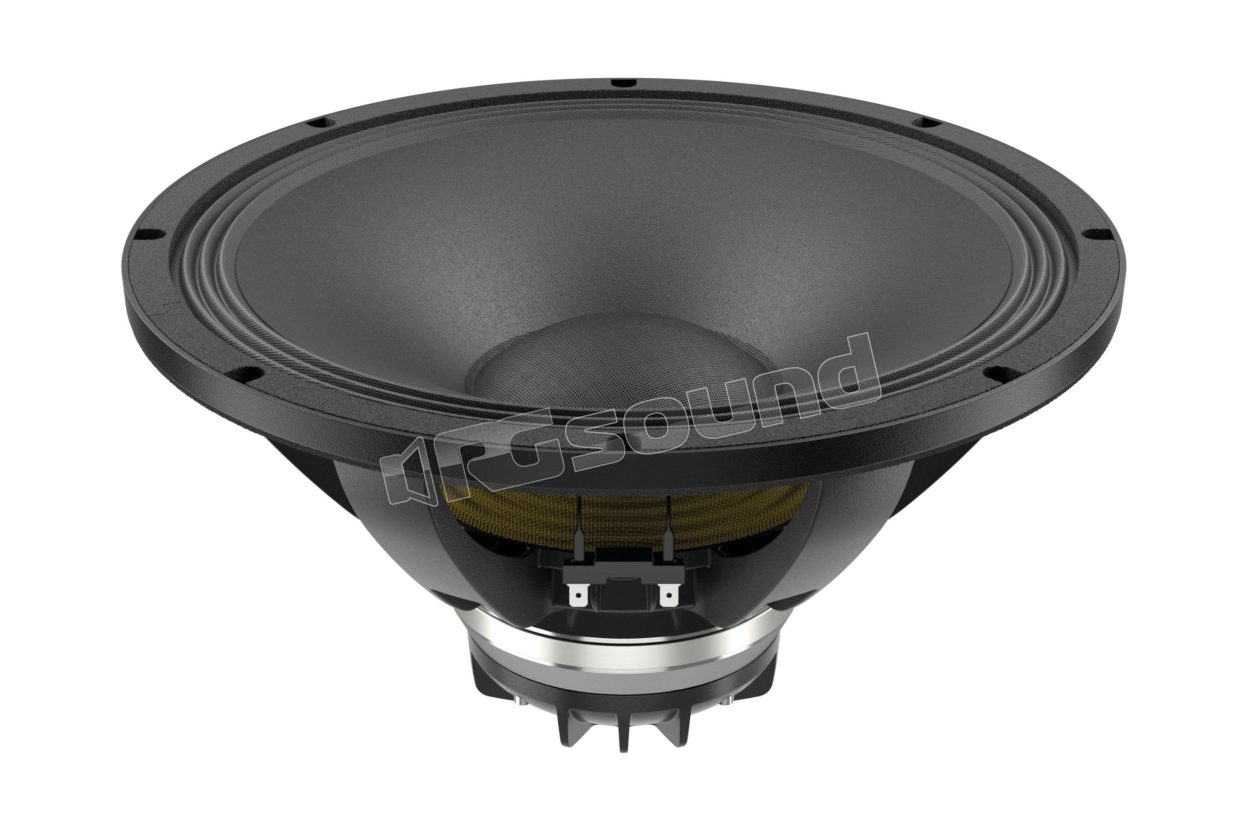

CAN143.00T 13.5'' speaker with neodymium magnet and aluminum basket

LaVoce
Your price:
€ 498,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce CAN143.00T Speaker 340mm 8 Ohm

CAN143.00T Features

  • 3 inch copper voice coil LF
  • 3 inch CCA voice coil wrapped on the edge for high frequencies
  • sensitivity of 99 db/spl
  • rated power of 800 watt
  • optimized common motor with FEM, patented IIS phaseplug
  • frequency range 45 - 18,000 hz
  • nominal coverage 80°
  • HF diaphragm in titanium/polyimide composite
  • dual aluminum demodulation rings
  • compact and lightweight design

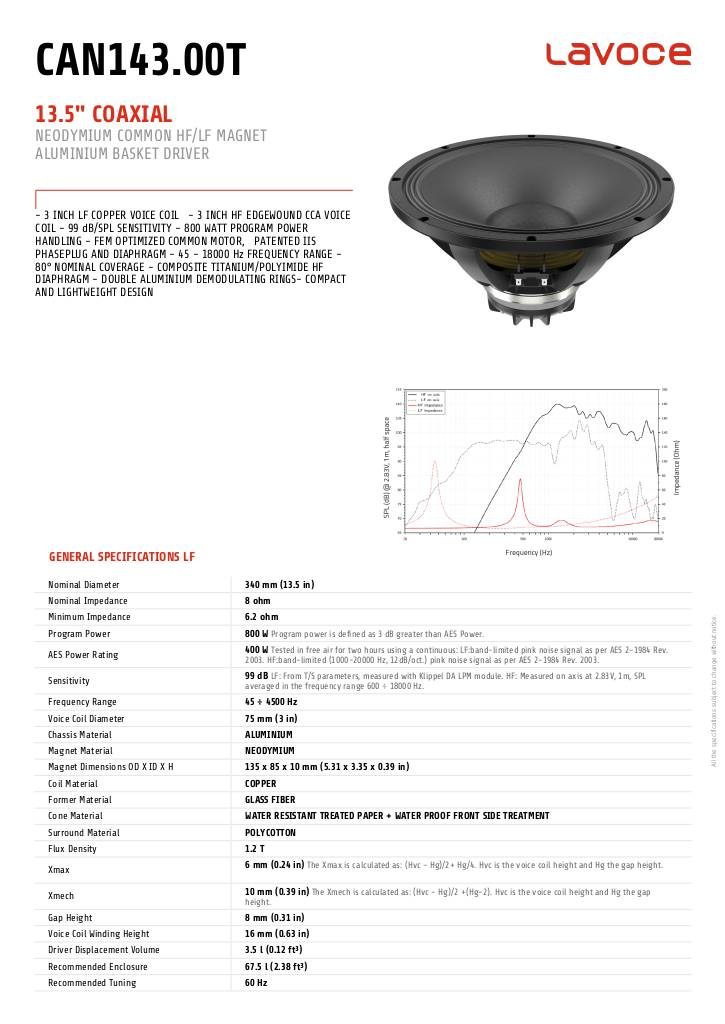

Manuale utente

n-20260930094509-lavoce-can143-00t.pdf

LaVoce CAN143.00T Technical Specifications

  • Nominal diameter 340 mm (13.5 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 6.2 ohm
  • Program power 800 W
  • Nominal AES power 400 W
  • Sensitivity 99 dB
  • Frequency range 45 ÷ 4500 Hz
  • Voice coil diameter 75 mm (3 inches)
  • Frame material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions (outer diameter x inner diameter x height) 135 x 85 x 10 mm (5.31 x 3.35 x 0.39 inches)
  • Coil material: Copper
  • Core material: Fiberglass
  • Cone material: Paper treated to resist water + waterproof treatment on the front side
  • Suspension material: Polycotton
  • Flux density: 1.2 T
  • Xmax: 6 mm (0.24 inches)
  • Xmech: 10 mm (0.39 inches)
  • Gap height 8 mm (0.31 inches)
  • Voice coil winding height 16 mm (0.63 inches)
  • Driver displacement volume 3.5 l (0.12 cubic feet)
  • Recommended acoustic enclosure 67.5 l (2.38 cubic feet)
  • Recommended tuning 60 Hz
€ 498,20 Price incl. VAT
