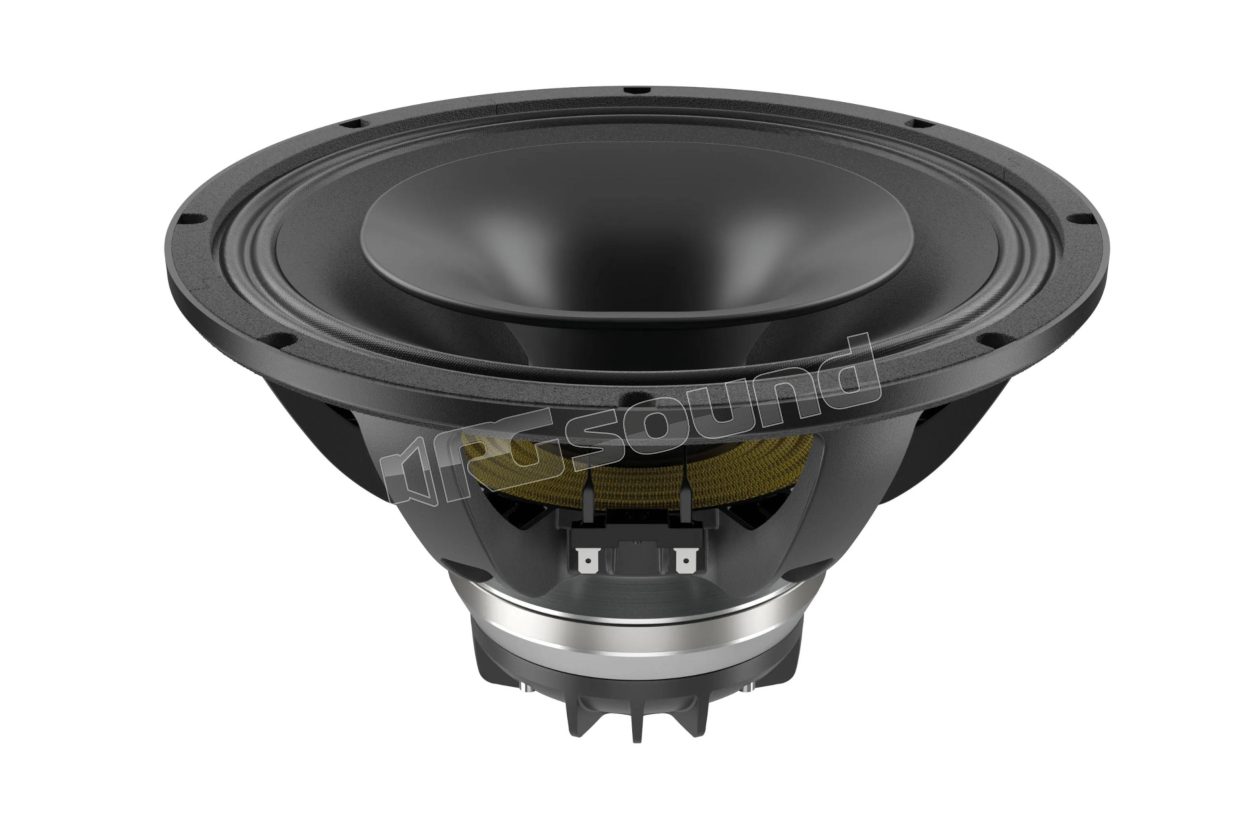

CAN123.00TH 12'' coaxial speaker with neodymium magnet and aluminum basket

LaVoce
Your price:
€ 479,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Two-way
Speaker Size
300 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
45 - 3500 Hertz
Sensitivity
99,5 dB
Impedance
8 Ohm
Weight
5 Kg
Installation Depth
164 mm
Voice Coil Diameter
75 mm

LaVoce CAN123.00TH 12'' dual-cone speaker with neodymium magnet and aluminum basket

12'' driver with common neodymium magnet for high and low frequencies and aluminum basket

CAN123.00TH Features

  • 3 inch copper voice coil for low frequencies
  • 3 inch CCA voice coil wound on edge for high frequencies
  • Sensitivity of 99.5 dB/SPL
  • Program power of 700 Watt
  • Common motor optimized with FEM technology, patented phaseplug and IIS diaphragm
  • Frequency range from 45 to 18,000 Hz
  • Nominal coverage of 60° x 40°
  • HF diaphragm in titanium/polyimide composite
  • Dual aluminum demodulation rings
  • Compact and lightweight design

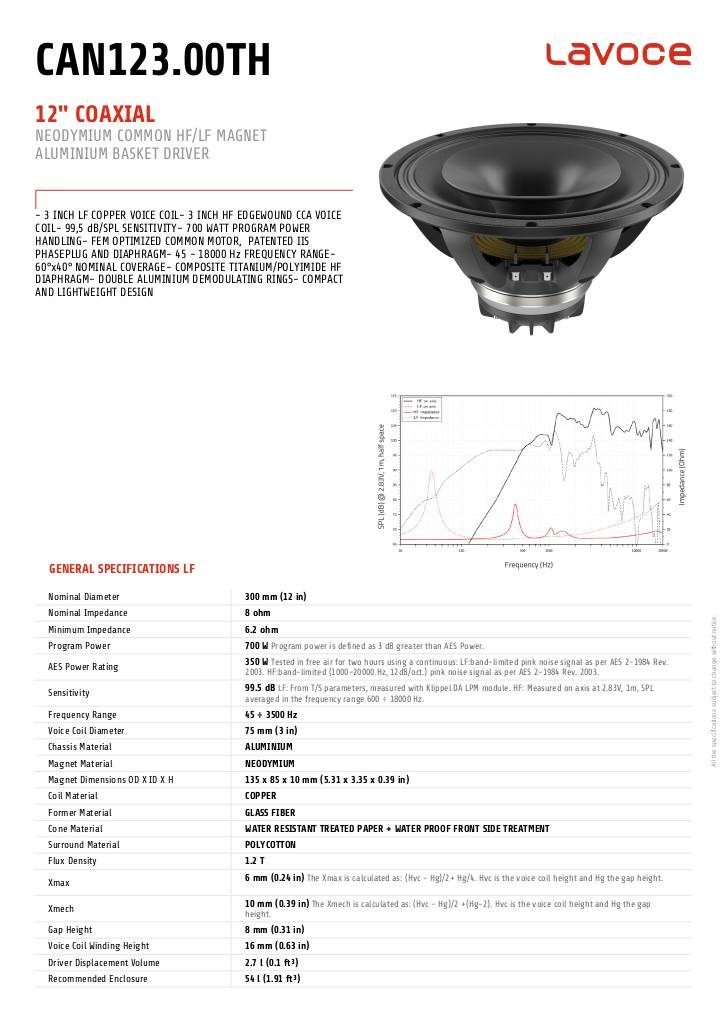

Scheda tecnica

n-20260930095143-lavoce-can123-00th.pdf

LaVoce CAN123.00TH Technical Specifications

  • Nominal diameter 300 mm (12 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 6.2 ohm
  • Program power 700 W
  • Rated power AES 350 W
  • Sensitivity 99.5 dB
  • Frequency range 45 ÷ 3500 Hz
  • Voice coil diameter 75 mm (3 inches)
  • Frame material: aluminum
  • Magnet material: neodymium
  • Magnet dimensions (outer diameter x inner diameter x height)
  • 135 x 85 x 10 mm (5.31 x 3.35 x 0.39 inches)
  • Coil material: copper
  • Former material: fiberglass
  • Cone material: paper treated to resist water + waterproof treatment on front side
  • Suspension material: polycotton
  • Flux density: 1.2 T
  • Xmax: 6 mm (0.24 in)
  • Xmech: 10 mm (0.39 in)
  • Gap height 8 mm (0.31 inches)
  • Voice coil winding height 16 mm (0.63 inches)
  • Driver displacement volume 2.7 l (0.1 ft³)
  • Recommended enclosure 54 l (1.91 ft³)
  • Recommended tuning 66 Hz
€ 479,00 Price incl. VAT
