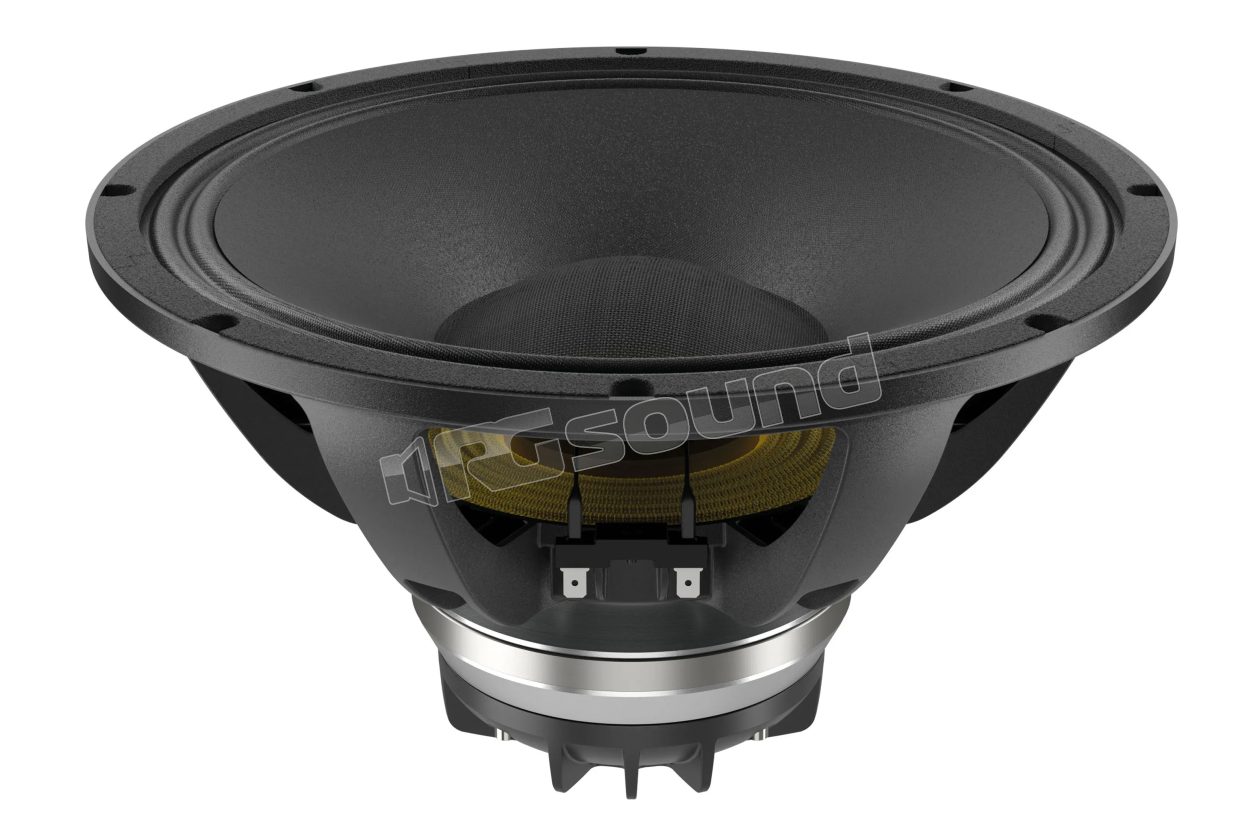

CAN123.00T 30cm speaker, 8 Ohm impedance

LaVoce
Your price:
€ 479,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
45 -3500 Hertz
Sensitivity
99,5 dB
Impedance
8 Ohm
Weight
4,8 Kg
Installation Depth
164 mm
Voice Coil Diameter
75 mm

LaVoce CAN123.00T 30cm speaker, 8 Ohm impedance

Main features of the LaVoce CAN123.00T speaker

  • Common neodymium magnet for high and low frequencies
  • Driver with aluminum basket
  • 3-inch copper voice coil for low frequencies
  • 3-inch edge-wound CCA voice coil for high frequencies
  • Sensitivity 99.5 db/spl
  • Rated power 700 watts
  • Common motor optimized with fem,
  • Patented iis phaseplug and diaphragm
  • Frequency range 45 - 18.000 hz
  • Nominal coverage 80°
  • High-frequency titanium/polyimide composite diaphragm
  • Dual aluminum demodulation rings
  • Compact and lightweight design

LaVoce CAN123.00T technical specifications

  • Nominal diameter 300 mm (12 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 6.2 ohm
  • Program power 700 W
  • AES rated power 350 W
  • Sensitivity 99.5 dB
  • Frequency range 45 ÷ 3500 Hz
  • Voice coil diameter 75 mm (3 inches)
  • Basket material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions (outer diameter x inner diameter x height) 135 x 85 x 10 mm (5.31 x 3.35 x 0.39 inches)
  • Coil material COPPER
  • Core material FIBERGLASS
  • Cone material WATER-RESISTANT PAPER + WATERPROOF TREATMENT ON FRONT SIDE
  • Surround material POLYCOTTON
  • Flux density 1.2 T
  • Xmax 6 mm (0.24 inches)
  • Xmech 10 mm (0.39 inches)
  • Gap height 8 mm (0.31 inches)
  • Voice coil winding height 16 mm (0.63 inches)
  • Driver displacement volume 2.7 l (0.1 ft³)
  • Recommended acoustic enclosure 54 l (1.91 ft³)
  • Recommended tuning 68 Hz
  • HF output 36 mm (1.4 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 8 ohm
  • Program power 160 W
  • AES rated power 80 W
  • Sensitivity 105.5 dB
  • Frequency range 600 ÷ 18.000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Coil material Edge-wound CCA
  • Support material KAPTON
  • HF dome material TITANIUM
  • Surround material POLYAMIDE
  • Flux density 1.9 T
  • Recommended crossover 1.200 Hz
€ 479,00 Price incl. VAT
