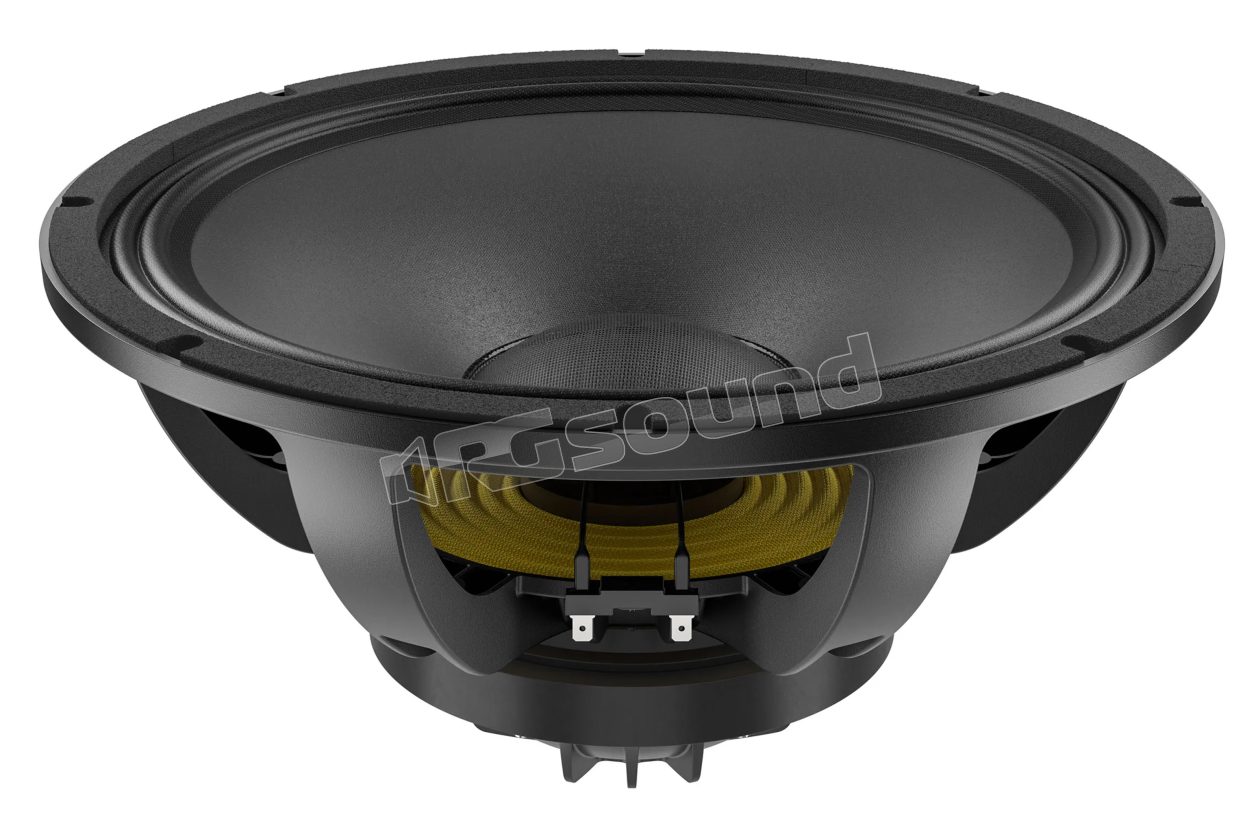

CAF153.00T 38cm (15'') full range speaker

LaVoce
Your price:
€ 331,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
45 - 4000 Hertz
Sensitivity
97,5 dB
Impedance
8 Ohm
Weight
7,55 Kg
Installation Depth
181 mm
Voice Coil Diameter
75 mm

LaVoce CAF153.00T full range speaker 38cm / 15", 8 Ohm impedance

Main features of the LaVoce CAF153.00T speaker

  • Common ferrite magnet for treble and bass frequencies
  • Driver with aluminum basket
  • 3 inch copper voice coil for bass frequencies
  • 3 inch voice coil wrapped on the edge in cca for treble frequencies
  • Sensitivity of 97.5 db/spl
  • Rated power of 800 watt
  • Common motor optimized with patented fem, phaseplug and diaphragm iis
  • Frequency range from 45 to 18,000 hz
  • Nominal coverage of 80°
  • Treble diaphragm in titanium/polyimide composite
  • Aluminum demodulation ring
  • Compact design

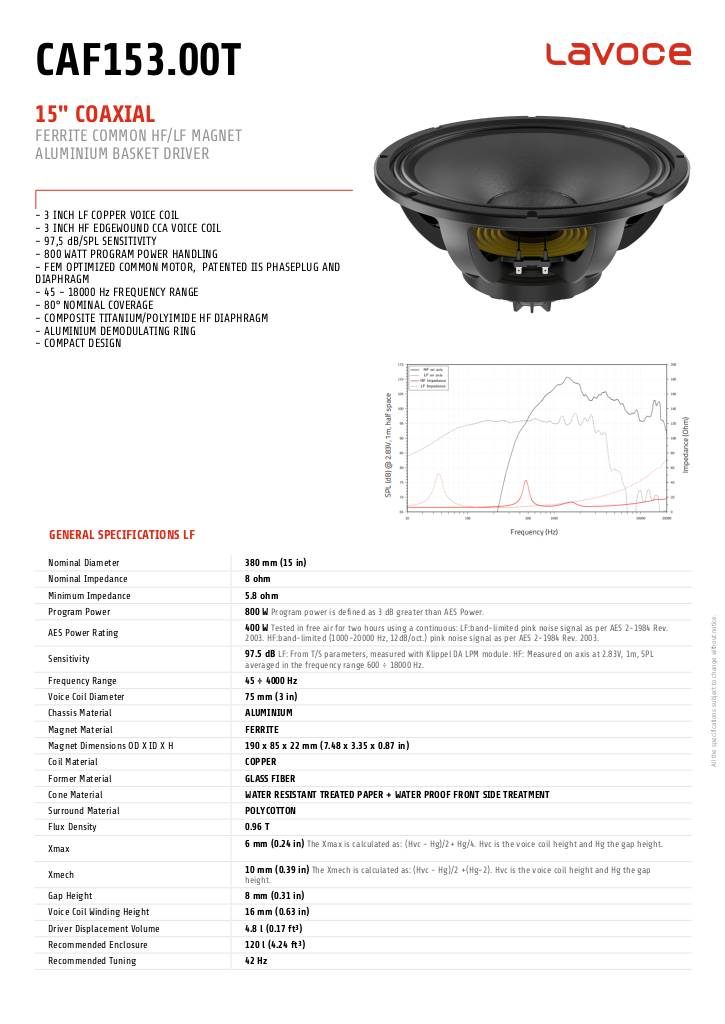

Scheda tecnica

n-20260923093811-lavoce-caf153-00t.pdf

LaVoce CAF153.00T technical specifications

  • Nominal diameter 380 mm (15 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 5.8 ohm
  • Program power 800 W
  • Rated power AES 400 W
  • Sensitivity 97.5 dB
  • Frequency range 45 ÷ 4000 Hz
  • Voice coil diameter 75 mm (3 inches)
  • Basket material ALUMINUM
  • Magnet material FERRITE
  • Magnet dimensions (outer diameter x inner diameter x height) 190 x 85 x 22 mm (7.48 x 3.35 x 0.87 inches)
  • Coil material COPPER
  • Core material FIBERGLASS
  • Cone material WATER-RESISTANT PAPER + WATERPROOF TREATMENT ON THE FRONT SIDE
  • Suspension material POLYCOTTON
  • Flux density 0.96 T
  • Xmax 6 mm (0.24 in)
  • Xmech 10 mm (0.39 in)
  • Air gap height 8 mm (0.31 inches)
  • Voice coil winding height 16 mm (0.63 inches)
  • Driver displacement volume 4.8 l (0.17 cubic feet)
  • Recommended acoustic enclosure 120 l (4.24 cubic feet)
  • Recommended tuning 42 Hz
  • HF output 36 mm (1.4 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 7.3 ohm
  • Program power 160 W
  • Rated power AES 80 W
  • Sensitivity 105 dB
  • Frequency range 600 ÷ 18000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Coil material CCA WRAPPED ON THE EDGE
  • Support material KAPTON
  • HF dome material TITANIUM
  • Suspension material POLYAMIDE
  • Flux density 1.52 T
  • Recommended crossover 1200 Hz
€ 331,90 Price incl. VAT
