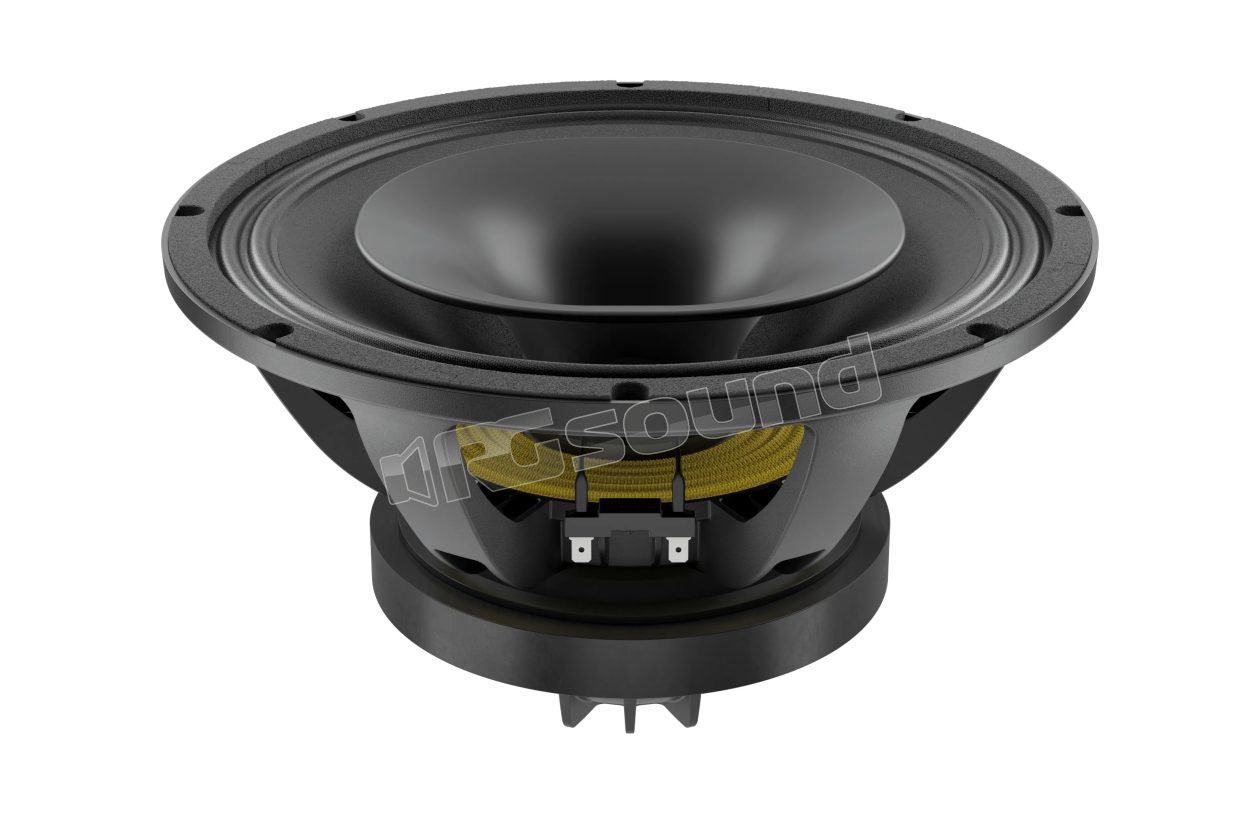

CAF123.00TH 30cm (12'') speaker, 8 Ohm impedance

LaVoce
Your price:
€ 320,30
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Two-way
Speaker Size
300 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
50 - 3500 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
7 Kg
Installation Depth
164 mm

LaVoce CAF123.00TH 12'' speaker 8 ohm impedance

Main features of the LaVoce CAF123.00TH speaker

  • Common ferrite magnet for highs and lows
  • Driver with aluminum basket
  • 3 inch copper voice coil for lows
  • 3 inch CCA voice coil wrapped on the edge for highs
  • Sensitivity of 98 db/spl
  • Rated power of 700 watt
  • Common motor optimized with fem
  • Frequency range from 50 to 18,000 hz
  • Nominal coverage 60°x40°
  • High titanium/polyimide composite diaphragm
  • Aluminum demodulation ring
  • Compact design

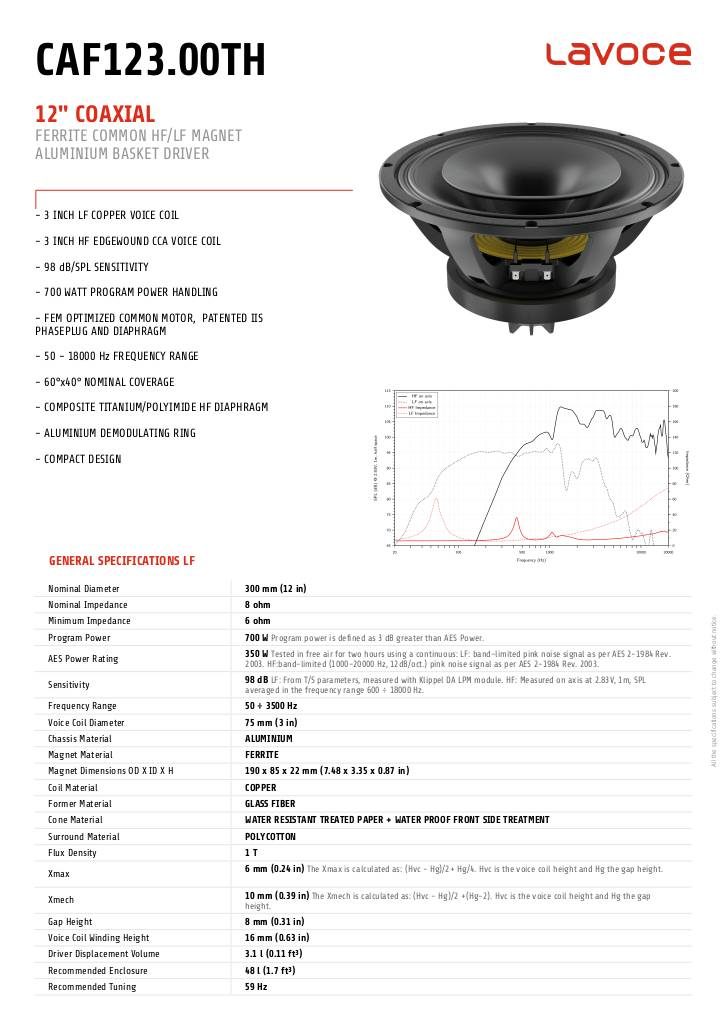

Scheda tecnica

n-20261016122745-lavoce-caf123-00th.pdf

LaVoce CAF123.00TH technical specifications

  • Nominal diameter 300 mm (12 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 6 ohm
  • Program power 700 W
  • Nominal AES power 350 W
  • Sensitivity 98 dB
  • Frequency range 50 ÷ 3500 Hz
  • Voice coil diameter 75 mm (3 inches)
  • Basket material ALUMINUM
  • Magnet material FERRITE
  • Magnet dimensions (outer diameter x inner diameter x height) 190 x 85 x 22 mm (7.48 x 3.35 x 0.87 inches)
  • Coil material COPPER
  • Core material FIBERGLASS
  • Cone material TREATED PAPER TO RESIST WATER + WATERPROOF TREATMENT ON THE FRONT SIDE
  • Suspension material POLYCOTTON
  • Flux density 1 T
  • Xmax 6 mm (0.24 inches)
  • Xmech 10 mm (0.39 inches)
  • Air gap height 8 mm (0.31 inches)
  • Voice coil winding height 16 mm (0.63 inches)
  • Driver displacement volume 3.1 l (0.11 cubic feet)
  • Recommended speaker box 48 l (1.7 cubic feet)
  • Recommended tuning 59 Hz
  • HF output 36 mm (1.4 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 8 ohm
  • Program power 160 W
  • Nominal AES power 80 W
  • Sensitivity 105.5 dB
  • Frequency range 600 ÷ 18,000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Coil material CCA wrapped on the edge
  • Support material KAPTON
  • HF dome material TITANIUM
  • Suspension material POLYAMIDE
  • Flux density 1.6 T
  • Recommended crossover 1,200 Hz
