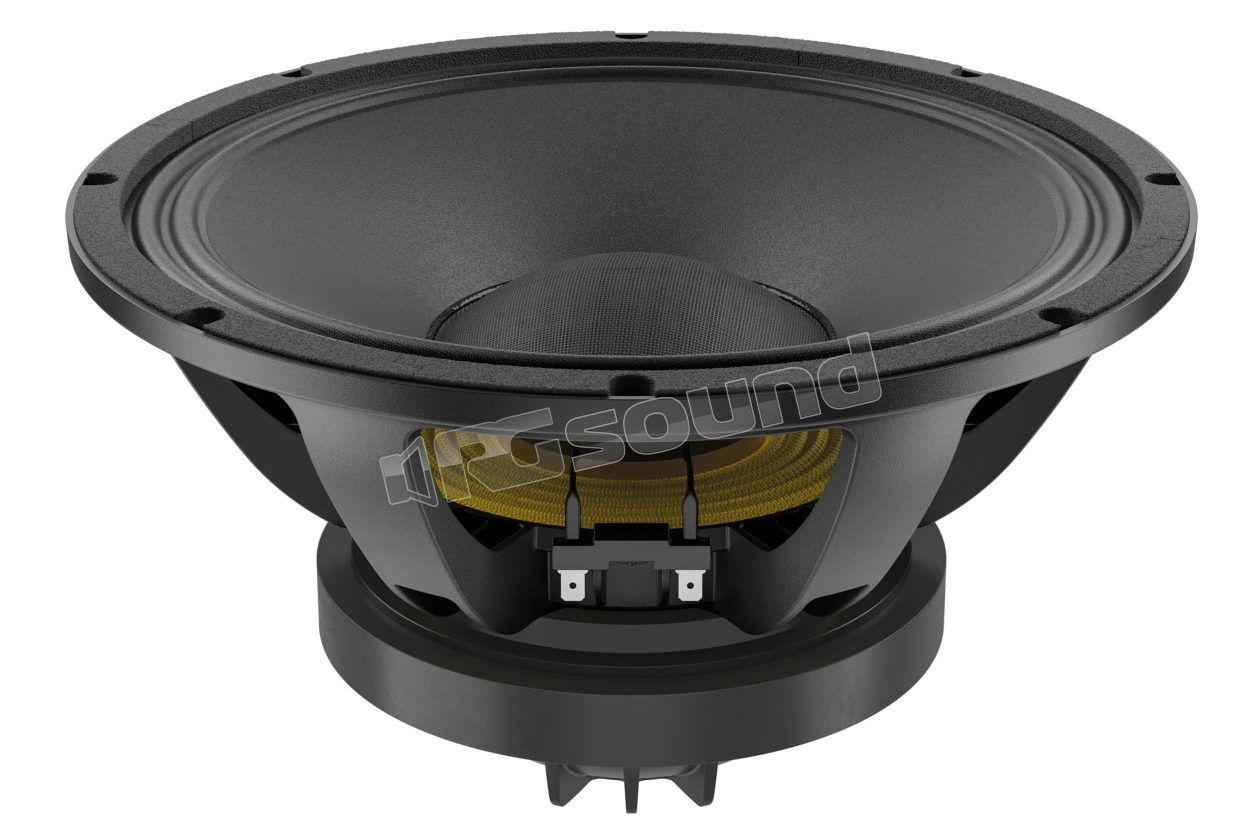

CAF123.00T 30cm speaker, 8 Ohm impedance

LaVoce
Your price:
€ 308,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
50 - 3500 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
7 Kg
Installation Depth
164 mm
Voice Coil Diameter
75 mm

LaVoce CAF123.00T 30cm speaker, 8 Ohm impedance, with ferrite magnet for high and low frequencies, aluminum basket

Main features of the LaVoce CAF123.00T speaker

  • 3 inch copper voice coil for low frequencies
  • 3 inch CCA edge-wound voice coil for high frequencies
  • Sensitivity of 98 db/spl
  • Rated power of 700 watts
  • Common motor optimized with fem
  • Frequency range from 50 to 18,000 hz
  • Nominal coverage of 80°
  • High-frequency titanium/polyimide composite diaphragm
  • Aluminum demodulation ring
  • Compact and lightweight design

LaVoce CAF123.00T technical specifications

  • Nominal diameter 300 mm (12 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 6 ohm
  • Program power 700 W
  • Nominal AES power 350 W
  • Sensitivity 98 dB
  • Frequency range 50 ÷ 3500 Hz
  • Voice coil diameter 75 mm (3 inches)
  • Basket material ALUMINUM
  • Magnet material FERRITE
  • Magnet dimensions (outer diameter x inner diameter x height) 190 x 85 x 22 mm (7.48 x 3.35 x 0.87 inches)
  • Coil material COPPER
  • Core material FIBERGLASS
  • Cone material TREATED PAPER FOR WATER RESISTANCE + WATERPROOF TREATMENT ON FRONT SIDE
  • Suspension material POLYCOTTON
  • Flux density 1 T
  • Xmax 6 mm (0.24 inches)
  • Xmech 10 mm (0.39 inches)
  • Air gap height 8 mm (0.31 inches)
  • Voice coil winding height 16 mm (0.63 inches)
  • Driver displacement volume 3.1 l (0.11 cubic feet)
  • Recommended acoustic enclosure 48 l (1.7 cubic feet)
  • Recommended tuning 59 Hz
  • HF output 36 mm (1.4 inches)
  • Nominal impedance 8 ohm
  • Minimum impedance 8 ohm
  • Program power 160 W
  • Nominal AES power 80 W
  • Sensitivity 105.5 dB
  • Frequency range 600 ÷ 18,000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Coil material CCA edge-wound
  • Support material KAPTON
  • HF dome material TITANIUM
  • Suspension material POLYAMIDE
  • Flux density 1.6 T
  • Recommended crossover 1,200 Hz
€ 308,00 Price incl. VAT
