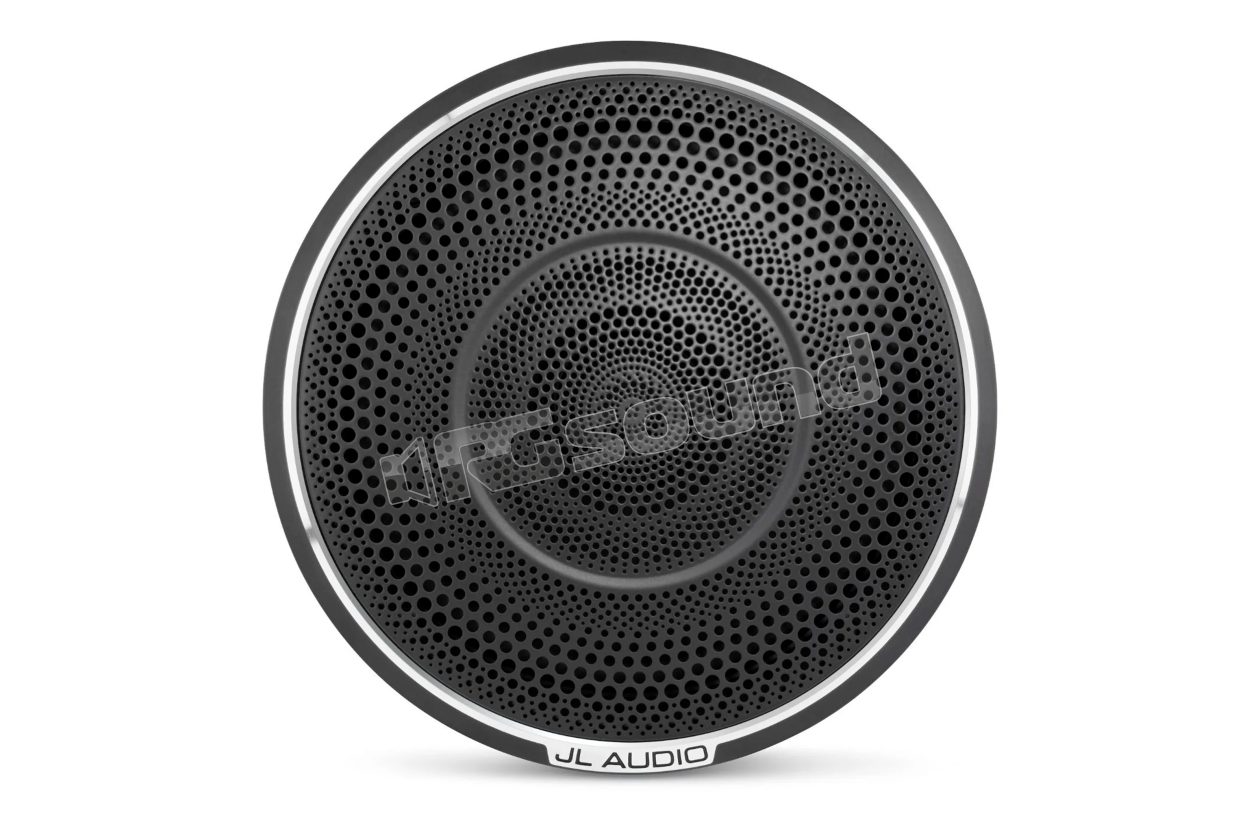

C7-650CW 165mm high-end woofer with grille

JL Audio
Your price:
€ 548,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
175 Watt
RMS Power
125 Watt
Frequency Response
50 - 5000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Installation Depth
70 mm
Woofer Material
Polipropilene

JL Audio C7-650CW 6.5 inch Woofer with Grille

The C7-650W woofer is capable of operating in a 3-way system, with midrange and tweeter, or with the tweeter alone in a 2-way configuration. Engineered from the ground up, it features exceptional linear excursion capability and outstanding linearity, which translates to solid bass and pure, precise midrange performance. Distortion and non-linearities have been minimized through optimization of the dynamic behaviors of the motors and suspensions.

Passive crossover networks are not included with C7 speakers, as they are designed for active systems. Instead, a high-quality tuning DSP is recommended, such as the JL Audio TwK 88 or D8, or a VXi amplifier with integrated DSP, with a dedicated amplification channel for each C7 system speaker. Precise adjustment of equalization, delay and crossover filters will ensure optimal performance within the vehicle.

Built in the USA. Sold individually, with an alloy grille tray, a fine mesh steel grille insert and a spiral steel grille insert. The performance of each C7 speaker is tested and verified, so a unique serial number is assigned. Register your C7 speaker online to receive a copy of the specific acoustic test report.

C7-650cw Features

  • Cone and Dust Cap: The polypropylene material, vacuum formed and mineral filled, offers excellent damping and reduced mass. The cone body features a gently curved profile to optimize response. A specially shaped dust cap connects to the cone body and the first voice coil to improve high frequency behavior.
  • Suspension Design: The moving assembly is suspended and damped by a large diameter spider, linear profile, formed from a blend of Nomex® and polycotton, and a positive rolling rubber surround. The two elements combine to provide optimal damping without prematurely limiting the exceptional excursion capability of the C7-650cw.
  • Motor Design: The C7-650CW employs a high density magnetic circuit with a high quality Y35 strontium ferrite magnet and a specially worked motor topology with T-yoke. Motor magnets have been precisely optimized using advanced FEA tools to reduce distortion and provide linear motor force across the driver's performance range.
  • An oversized 32 mm diameter voice coil is employed, wound with copper wire on a fiberglass former. The oversized voice coil provides greater power handling capability, minimizing thermal compression and distortion at higher listening levels. Frame Design: A specially designed cast alloy basket is used, with thin spokes to maximize rear open area and our patented Elevated Frame cooling technology.

Manuale utente

n-20230317122217-c7650cw-man.pdf

JL Audio C7-650CW Technical Specifications

  • Continuous Power Handling (RMS) 125 W
  • Recommended Amplifier Power (RMS) 50 - 175 W / Ch.
  • Nominal Impedance 4 Ω
  • Frequency Response 50 Hz - 5 KHz ± 3 dB
  • Voice Coil Resistance (Re) 3.114 Ω
  • Free Air Resonance (Fs) 54.5 Hz
  • Reference Efficiency (no) 0.304%
  • Efficiency 87.0 dB @ 1W / 1m - 93.0 dB @ 1W / 0.5m
  • Sensitivity 90.0 dB @ 2.83V / 1m
  • Electrical Q (Qes) 0.669
  • Mechanical "Q" (Qms) 6.265
  • Total Speaker "Q" (Qts) 0.605
  • Equivalent Compliance (Vas) 0.461 cu. ft. (13.05 liters)
  • Moving Mass (Mms) 17.679 g
  • Mechanical Compliance (Cms) 0.000482 m/N
  • Magnetic Force (BL) 5.31 N/A
  • Effective Piston Area (Sd) 21.4 square inches (0.013807 square meters)
  • One-Way Linear Excursion (Xmax) 5 mm
  • Outer Frame Diameter (A) 6.50 in / 165 mm
  • Bolt Hole Circle Diameter (B) 6.12 in / 155 mm
  • Mounting Hole Diameter (C) 5.56 in / 141 mm
  • Outer Grille Tray Diameter (D) 7.20 in / 183 mm
  • Grille Front Protrusion* (E) 0.98 in / 25 mm
  • Mounting Depth (F) 2.77 in / 70 mm
  • Outer Motor Diameter (G) 3.94 in / 100 mmù
  • Bandwidth:
    • With 48 dB/octave filters: 50 Hz - 5 kHz
    • With 24 dB/octave filters: 60 Hz - 5 kHz
    • With 12 dB/octave filters: 70 Hz - 5 kHz

?
