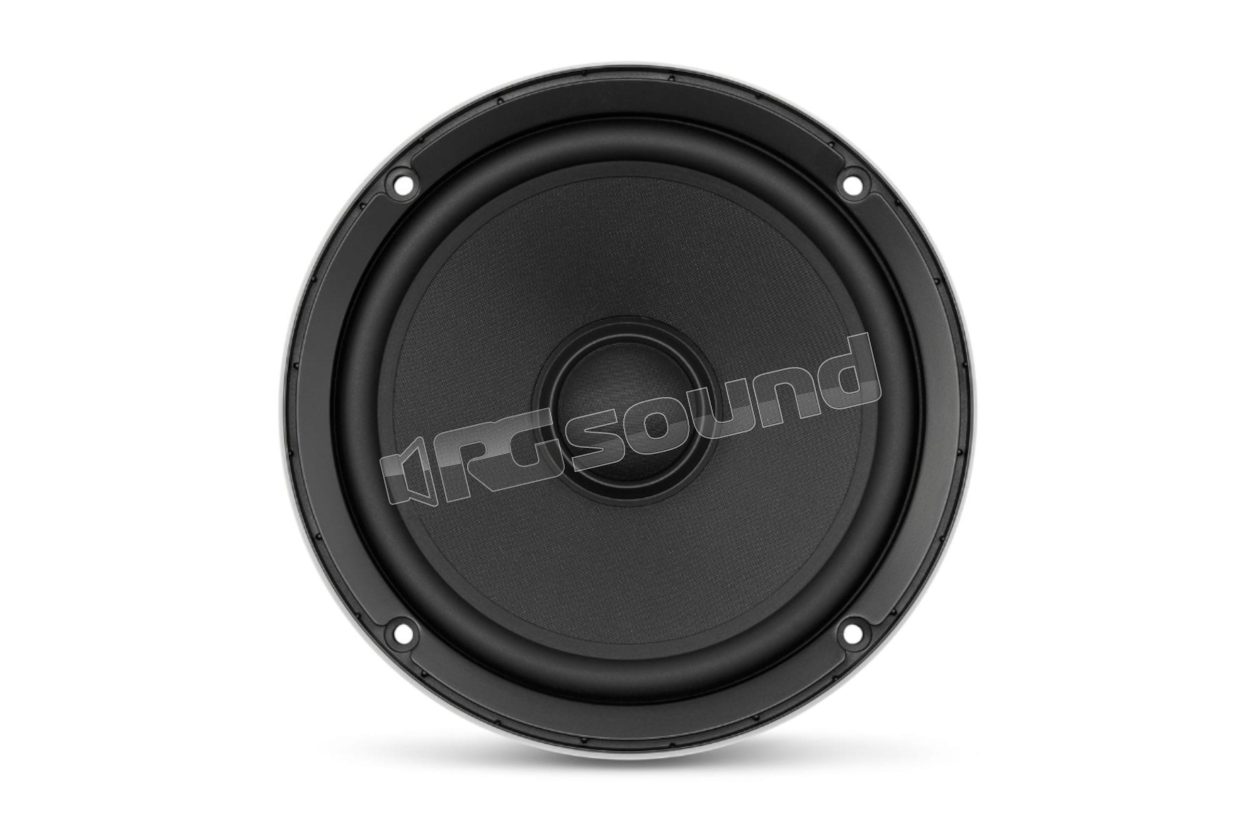

C6-650cw C6 Series 6.5" component woofer

JL Audio
Your price:
€ 269,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

JL Audio C6-650cw 6.5" Component Woofer C6 Series

Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series drivers allow you to pair high-quality pure silk dome tweeters with highly linear woofers to create a speaker system of exceptional refinement, precision and dynamic capability.

The C6 6.5-inch woofer offers exceptional linear excursion capability and extraordinary linearity, ensuring solid performance in the low-mids and pure, precise performance in the midrange.

JL Audio C6-650cw Technical Specifications

  • Continuous Power (RMS): 100 W
  • Sensitivity (SPL @ 1 W/1 m): 87.37 dB
  • Sensitivity (SPL @ 2.83 V/1 m): 90.33 dB
  • Frequency Response (+/- 3 dB): 55 Hz-6 kHz
  • Nominal Impedance 4 Ω
  • Recommended Amplifier Power (RMS): 25-150 W/channel
  • Voice Coil Diameter: 32 mm
  • Cone Material Polypropylene molded under vacuum with mineral fill

Connections

  • Speaker Connections Spade connectors

Mounting Dimensions

  • Mounting Frame Outer Diameter: 165 mm
  • Mounting Clearance: 66 mm
  • Front Grille Protrusion: 25 mm
  • Mounting Hole: 139 mm
  • Grille Tray Outer Diameter: 172 mm
  • Bolt Hole Circle: 156 mm
  • Motor Outer Diameter: 90 mm

Parameters

  • Free Air Resonance (FS): 52.8 Hz
  • Electrical "Q" (Qes): 0.647
  • Mechanical "Q" (Qms): 5.076
  • Total "Q" (Qts): 0.574
  • Equivalent Compliance (Vas): 0.532 cu ft (15.069 L)
  • Unidirectional Linear Excursion (Xmax; specifications are derived using the unidirectional voice coil excursion method with no correction factors applied): 3.75 mm
  • Reference Efficiency (ηO): 0.344%
  • Moving Mass (Mms): 16.42 g
  • Mechanical Compliance (Cms): 0.000581 m/N
  • Magnetic Force (BL): 5.186
  • Effective Piston Area (SD): 0.013807 m²
  • DC Resistance (RE): 3.20 Ω
€ 269,00 Price incl. VAT
