C6-650 6.5" two-way speaker kit, C6 Series

JL Audio
Your price:
€ 899,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

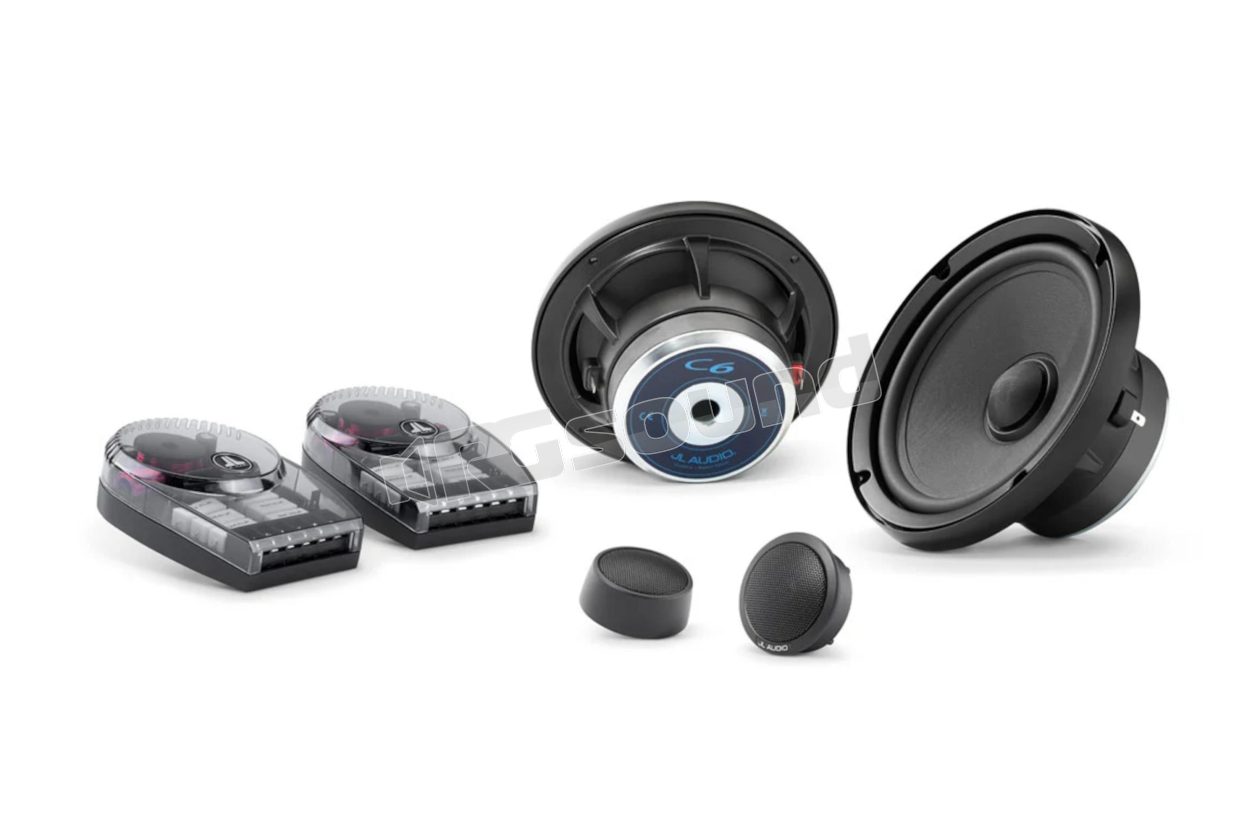

JL Audio C6-650 Two-Way 6.5" Component Speaker Kit C6 Series

Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series combines the softness and transparency of a high-quality silk dome tweeter with a first-class 6.5-inch woofer to create a speaker system with exceptional refinement and dynamic capability.

C6-650 Features

  • Premium audio quality: Combining a full-frame 6.5-inch woofer with a 1-inch silk dome tweeter, the C6 series delivers advanced audio technology for an exceptional listening experience in the car. If purchased as a component system, the speaker system includes premium passive crossover networks.
  • DMA-Optimized Woofers: Proprietary motor modeling, suspension, and cone systems are used, which allow for reduced distortion, improved transient performance, and exceptional audio quality. The woofer center cap is designed to optimize high-frequency response and ensure a perfect transition to the tweeter.
  • Silk dome tweeter: The pure silk dome tweeter with guided surround, matched with the C6 woofer, produces brilliant detail with excellent off-axis response and damping for balanced coverage in the listening environment. An automatic solid-state tweeter protection circuit minimizes the possibility of tweeter failure.
  • Passive Crossovers: Included in every C6 component system, these premium filter networks offer 4 levels of tweeter adjustment. The three-way component system includes an additional 4 levels of midrange adjustment. All incorporate polyester and electrolytic film capacitors, as well as low-loss air-core inductors, all accessible under a protective polycarbonate cover.

JL Audio C6-650 Technical Specifications

  • Continuous power (RMS) 100 W
  • Sensitivity (SPL @ 1 W/1 m): 87.37 dB
  • Sensitivity (SPL @ 2.83 V/1 m): 90.33 dB
  • Frequency response (+/- 3 dB) 53 Hz-21 KHz
  • Nominal impedance 4 Ω
  • Recommended amplifier power (RMS) 25-150 W/channel
  • Voice coil diameter: 32 mm
  • Cone material Vacuum-pressed polypropylene with mineral fill
  • Tweeter type Silk dome
  • Tweeter size 25 mm
  • Grille/s included
  • Connections
  • Speaker connections Spade connectors
  • Mounting dimensions
  • Frame outer diameter: 165 mm
  • Free space for mounting depth: 66 mm
  • Front grille protrusion: 25 mm
  • Mounting hole: 139 mm
  • Grille tray outer diameter: 172 mm
  • Bolt hole circle: 156 mm
  • Motor outer diameter: 90 mm

Parameters

  • Free air resonance (FS): 52.8 Hz
  • Electrical "Q" (Qes): 0.647
  • Mechanical "Q" (Qms): 5.076
  • Total "Q" (Qts): 0.574
  • Equivalent compliance (Vas): 15.069 L
  • Unidirectional linear excursion (Xmax; specifications are derived using the unidirectional voice coil excursion method without correction factors applied): 3.75 mm
  • Reference efficiency (NO): 0.344%
  • Moving mass (Mms): 16.42 g
  • Mechanical compliance (Cms): 0.000581 m/N
  • Magnetic force (BL): 5.186 N/A
  • Effective piston area (SD): 0.013807 m²
  • DC resistance (RE): 3.20 Ω

Tweeter Specifications

  • Flush mounting device diameter 54 mm
  • Surface mounting device diameter 54 mm
  • Flush mounting hole diameter 47 mm
  • Flush mounting depth 47 mm
  • Flush tweeter front protrusion 8 mm
  • Surface tweeter front protrusion 26 mm
€ 899,00 Price incl. VAT
