C6-100ct 010-03390-00 1" Tweeter

JL Audio
Your price:
€ 134,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

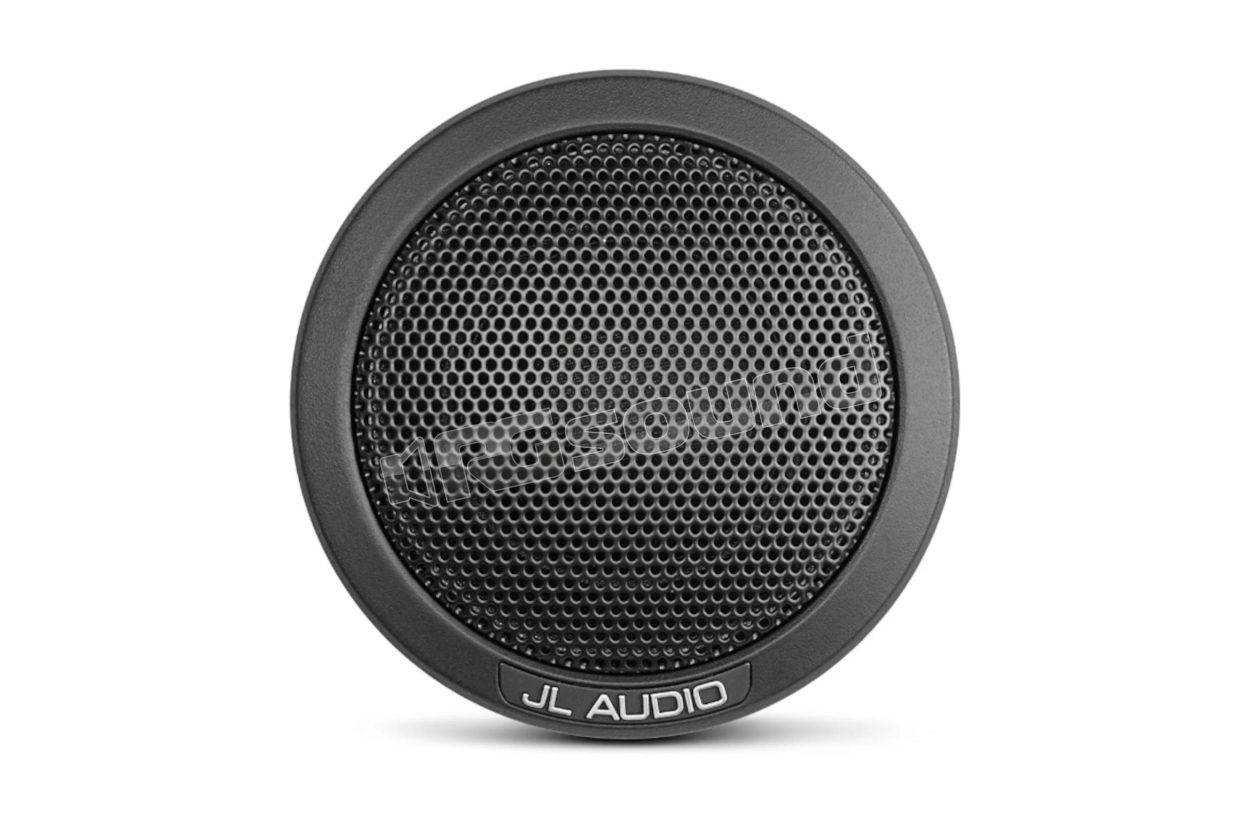

JL Audio C6-100ct 010-03390-00 1″ Tweeter

Designed with the same DNA as our top-of-the-line JL Audio C7 speaker series, the C6 series drivers allow you to pair high-end silk dome tweeters with highly linear woofers, to create a speaker system capable of delivering exceptional levels of refinement, precision and functionality.

JL Audio C6-100ct Technical Specifications

  • Continuous Power Handling (RMS): 75 W
  • Sensitivity (SPL at 1 W/1 m) 90 dB
  • Sensitivity (SPL at 1 Watt/0.5 meters): 96 dB
  • Sensitivity (SPL at 2.83 V/1 meter): 93 dB
  • Frequency Response (+/- 3 dB): 3 kHz-21 kHz
  • Nominal Impedance 4 Ω
  • Recommended Amplifier Power (RMS): 25-100 W/Channel
  • Tweeter Type Silk Dome
  • Tweeter Size 25 mm (1")
  • Grilles Included Yes

Connections

  • Speaker Connections Fork connectors

Parameters

  • Free Air Resonance (FS): 1500 Hz
  • Reference Efficiency (NO): 0.602 %
  • DC Resistance (RE): 3.20 Ω

Dimensions

  • Flush Mount Diameter: 54 mm (2.13")
  • Surface Mount Diameter: 54 mm (2.11")
  • Flush Mount Hole Diameter: 47 mm (1.85")
  • Flush Mount Depth: 47 mm (1.85")
  • Tweeter Front Protrusion Flush Mount: 8 mm (0.30")
  • Tweeter Front Protrusion Surface Mount: 26 mm (1.04")
€ 134,00 Price incl. VAT
