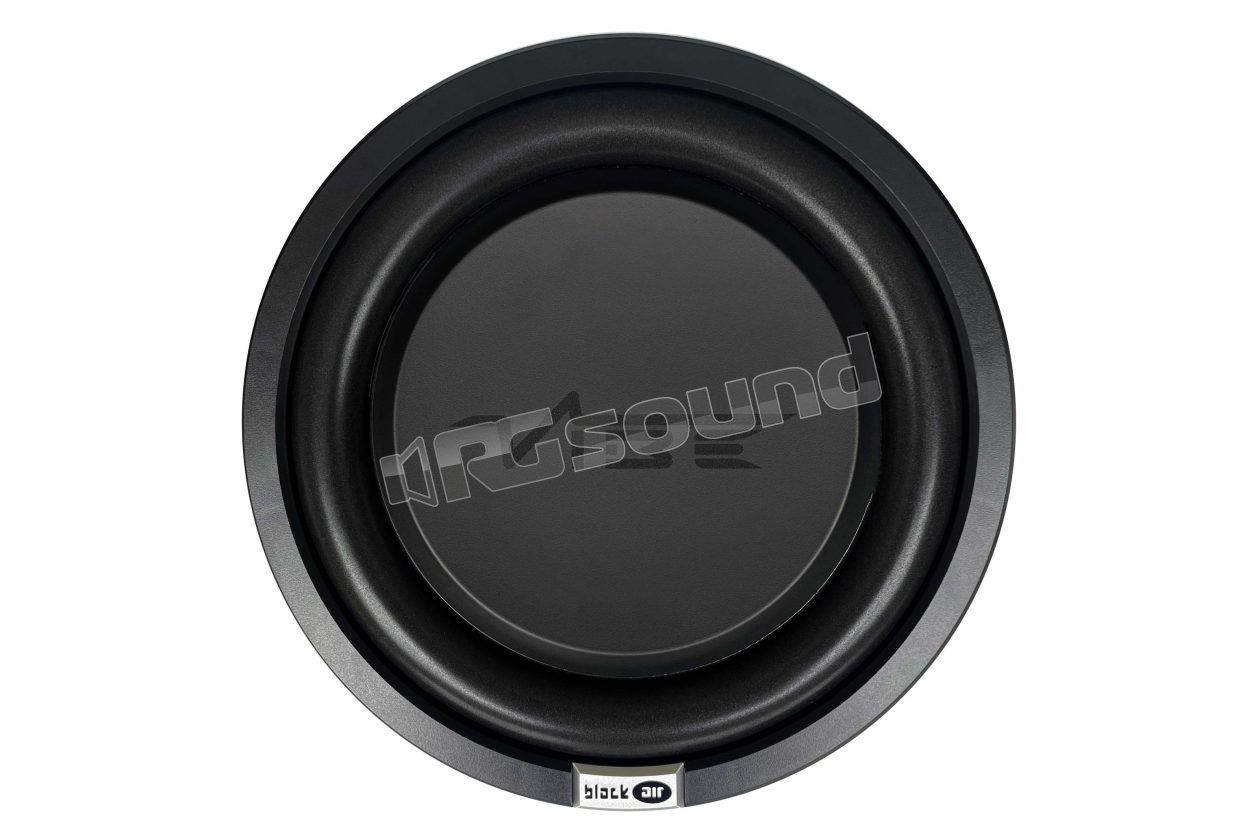

BLACKAIR12D2S-V2 30cm slim subwoofer

VIBE British Audio
Your price:
€ 200,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
900 Watt
RMS Power
300 Watt
Frequency Response
25 - 850 Hertz
Sensitivity
82 dB
Impedance
2 + 2 Ohm
Installation Depth
80 mm

VIBE BLACKAIR12D2S-V2 subwoofer 12" SLIMLINE 300W RMS

  • Slim design
  • Wide foam Roll edge
  • In-house designed motor structure
  • 900 watt maximum
  • Works even in the smallest boxes

VIBE Audio presents its Blackair range products with the new Ultra Slim subwoofers.

These latest subwoofers have been designed with the aim of reducing space and performance.

Often space is a limiting factor in modern vehicles and can make it very difficult to add bass, which as we know is the life and soul of music. Our Blackair slimline subwoofers have been designed to deliver surprising bass reproduction even in the most restricted spaces.

Available in 10 and 12 inch models, our slimline subwoofers are ultra thin and measure less than 3.1 inches deep, making them easy to fit into custom enclosures where space is limited; this combined with high quality magnets, a unique basket design that houses the magnet inside with a specially designed spider platform to enhance performance despite the lack of depth.

A high quality but lightweight 2.5" voice coil is used, capable of delivering 300 watts RMS in a 2 ohm configuration. The soft parts consist of tinsel conductors, PC spider, a light foam edge and a robust PP dust cap. This engineering combination creates a highly efficient subwoofer with great precision in bass reproduction.

The slimline nature allows you to install 10 and 12 inch woofers in enclosures with a volume of less than 1 cubic meter! Thin, elegant and designed for performance: the new Blackair Slimline subwoofers.

Vibe BLACKAIR12D2S-V2 technical features

  • Speaker size - 12" (313 mm)
  • Peak/RMS power - 900W/300W
  • Sensitivity - 82 dB
  • Frequency response - 25Hz - 850Hz
  • Impedance - Dual 2Ω
  • Voice coil - 3" 4 layer
  • Mount depth - 3.1" (80 mm)
  • Mount diameter - 10.5" (267 mm)
  • Enclosure volume - 1 - 5ft3
  • Recommended amplifier - POWERBOX400.1M

Parameters: BLACKAIR12D2S-V2(Series) / BLACKAIR12D2S-V2(Parallel)

  • Fs 31.63Hz / 31.82Hz
  • Vas 32.205 / 27.724
  • Re 3.6Ω / 0.9Ω
  • Qms 5.488 / 4.442
  • Qes 0.965 / 0.865
  • Qts 0.821 / 0.724
  • BL 13.897Tm / 7.887Tm
  • SPL 82.1dB / 82dB
  • Sd 0.048m/2 / 0.048m/2
  • Cms 97.197uM/N / 83.672uM/N
  • Mms 260.439g / 298.993g
  • Mmd 254.335g / 292.888g
  • X-Max 8 mm
  • X-Mech 20mm
€ 200,00 Price incl. VAT
