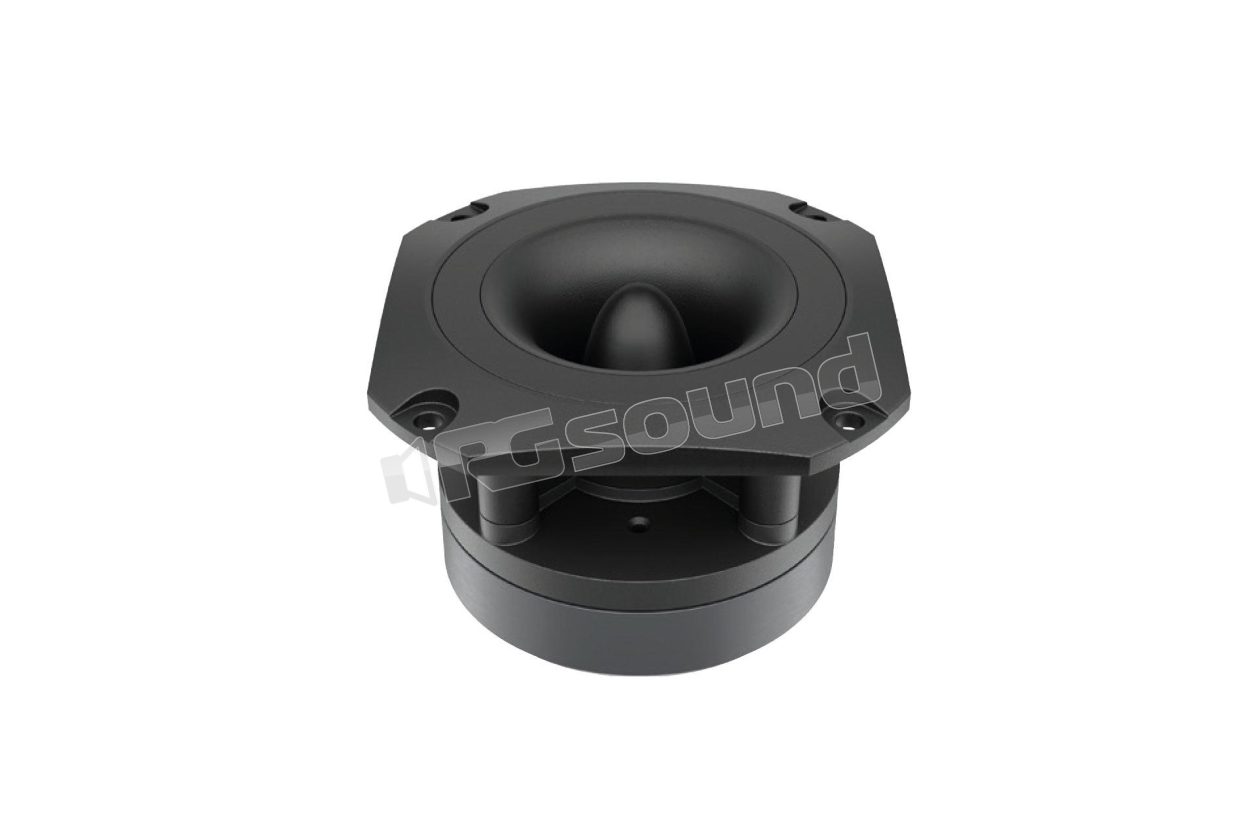

BF10.10LA 1" compression tweeter with CCAW magnet and 1" voice coil

LaVoce
Your price:
€ 36,20
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
86 mm
MAX Power
40 Watt
RMS Power
20 Watt
Frequency Response
2500 ÷ 18000 Hertz
Sensitivity
106 dB
Impedance
8 Ohm
Installation Depth
59 mm
Tweeter Material
Kapton

La Voce BF10.10LA 1" compression tweeter with CCAW magnet and 1" voice coil

BF10.10LA Features

  • Sensitivity 106 dB/SPL
  • 40 W program power handling
  • Motor, phaseplug and diaphragm optimized FEM
  • Frequency range 2500 - 18000 Hz
  • Aluminum diaphragm
  • New generation HF design

La Voce BF10.10LA Technical Specifications

  • Nominal impedance 8 Ohm
  • Minimum impedance 7.5 Ohm
  • Program power W 40
  • Nominal AES power W 20
  • Sensitivity dB 106
  • Frequency range 2500 ÷ 18000 Hz
  • Voice coil diameter 25.4 mm
  • Magnet material Ferrite
  • Voice coil material CCAW
  • Membrane material Kapton
  • Diaphragm material Aluminum
  • Housing material Aluminum
  • Magnet diameter 72 mm
  • Voice coil inductance 0.03 mH
  • Flux density 1.5 T
  • Recommended crossover 5000 Hz
  • Speaker volumetric displacement 0.2l
€ 36,20 Price incl. VAT
