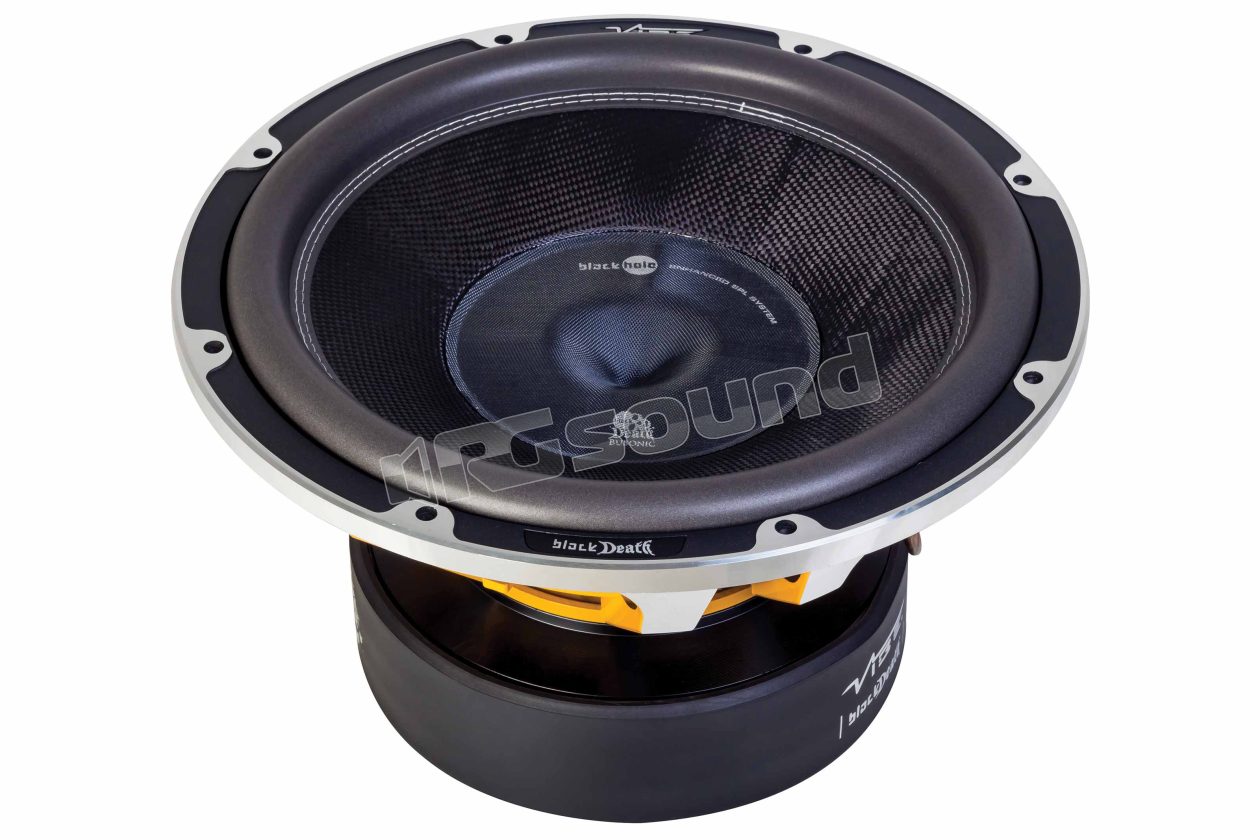

BDC15SPL-V2 dual voice coil 1 Ohm sub for SPL competitions

VIBE British Audio

Discontinued

Your price:
€ 940,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
9.000 Watt
RMS Power
3.000 Watt
Frequency Response
20 - 850 Hertz
Sensitivity
89 dB
Impedance
1 + 1 Ohm
Installation Depth
210 mm

Vibe BDC15SPL-V2 38cm (15") dual voice coil 1 Ohm subwoofer, maximum power 9000 W / 3000 W RMS

10cm (4") voice coil
Competition SPL performance

VIBE is known worldwide for the immense bass of its speakers.

BDC15SPL-V2 has a peak power of 9000 Watts. Designed without compromise according to extreme specifications, the 15 inch BlackDeath Street Street competition subwoofer is suitable for those seriously interested in extremely powerful bass.

Die-cast alloy basket provides solid support for the enormous motor system.

Uncompressed paper cone with interwoven kevlar fibers.

Multilayer NT foam surround with double stitching.

Black Hole dust cap increases cone area and SPL effectiveness.

The triple stack magnet series provides enormous moving force for the motor system.

Motor system designed by FEMM (Finite Element Method Magnetics) that ensures linear flux saturation and minimal distortion.

Ventilated linear motor design.

10AWG speaker cable.

Vibe BDC15SPL-V2 technical specifications

Size 15" (392 mm)
RMS Power 3000 watts
Peak Power 9000 watts
Minimum Input (RMS) 1500 watts RMS
Sensitivity 89dB
Frequency Response 20Hz - 850Hz
Voice Coil 4" Flatwound
Impedance 1+1 Ohm.
Mounting Depth 8.3" (210 mm)
Mounting Diameter 13.8" (350 mm)
Magnet Rating Y30

Discontinued
