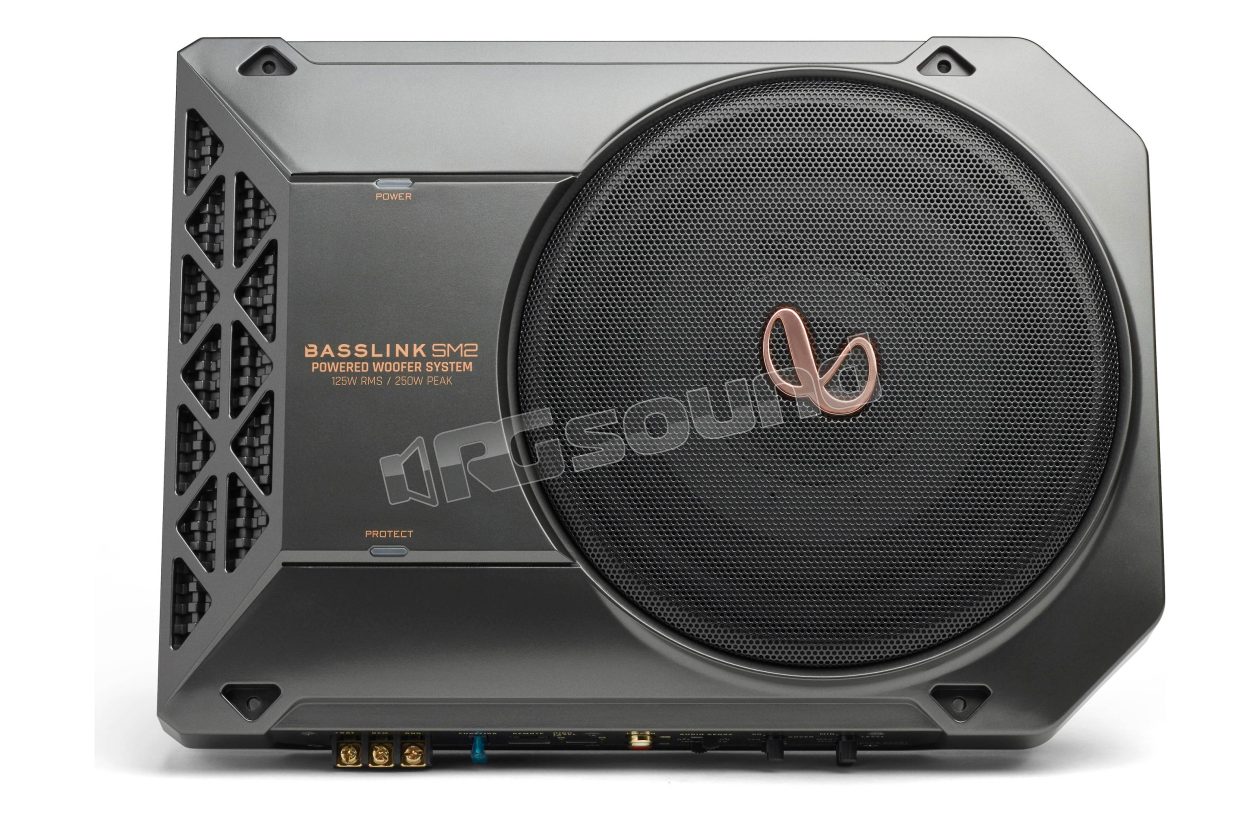

BassLink SM2 20cm Class D powered subwoofer

Infinity
Your price:
€ 315,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
RMS Power
125 Watt
Frequency Response
35 - 120 Hertz
Enclosure Size
344 x 250 x 71 mm
Enclosure Type
Sealed Enclosure

Infinity BassLink SM2 powered under-seat 8" (200 mm) subwoofer

The self-powered subwoofer BassLink SM2 can be placed under the front seat of many vehicles and adds great bass to any audio system. Its low-profile 8" woofer and compact enclosure allow you to add good bass to vehicles where space is limited. The fully adjustable crossover and bass equalizer provide the tools needed to tune it to your system and vehicle.

To drive the proprietary 8" woofer, a high-efficiency Class D digital amplifier delivers great power while staying cool and drawing minimal current from the vehicle's power system. The 8" (200 mm) subwoofer was specifically designed to provide low distortion and excellent bass performance in its custom ABS enclosure with significantly reduced footprint.

Efficient Class D amplifier

The amplifier that powers the BassLink SM2 produces minimal heat and does not require much current from the car's electrical system.

Smart electronic design

It employs high-pass filters and limiters that deliver exceptional peak performance. A variable crossover control (50Hz - 120Hz) allows you to adjust the amount of bass and mid-bass. Fine crossover adjustment allows you to achieve a smooth transition from the BassLink SM2 to the rest of your system's speakers.

Line and high level inputs

For greater installation flexibility the Subwoofer has line and high level inputs. If you use the high level inputs to connect the BassLink SM2 to the head unit, an input load switch allows you to switch from "Low" to "High" for optimal results. Compatible with the included JBL GTO-RBC, which allows you to control bass level remotely.

Scheda tecnica

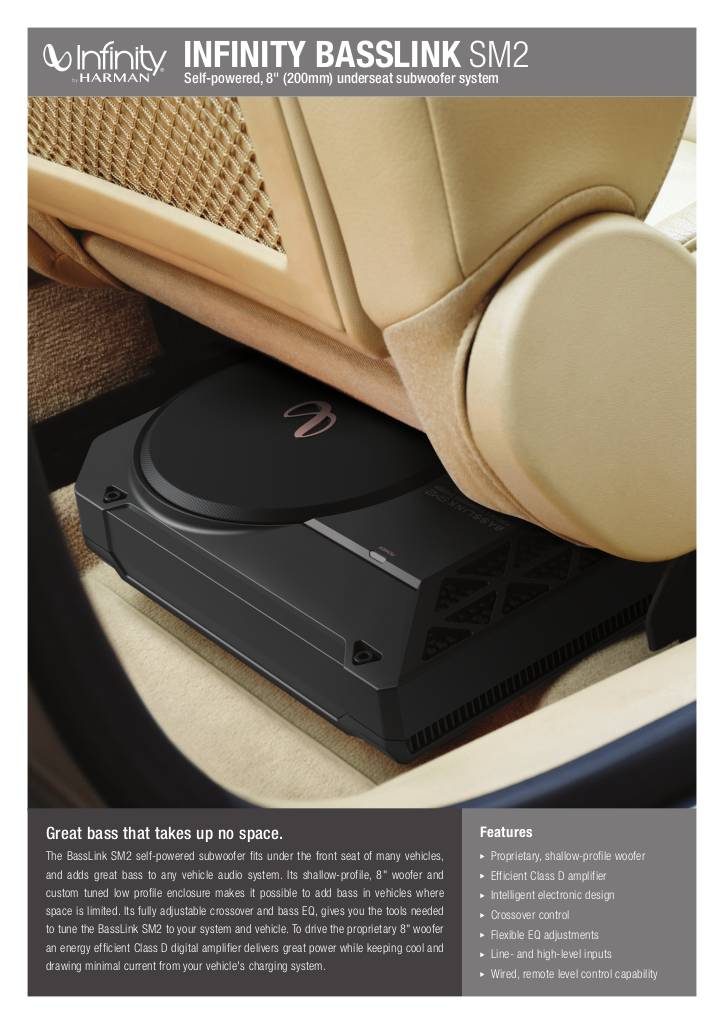

n-20230619175432-infinity-basslink-sm2-specsheet-english.pdf

Infinity BassLink SM2 Technical specifications

  • 8" (200 mm) woofer
  • Amplifier power 125 W RMS
  • Frequency response 35Hz - 120Hz
  • Fuse 15A
  • Maximum current draw 12A
  • Idle current draw <800mA
  • Input sensitivity Line level input 0.05V - 2V; high level input 0.5V - 20V
  • Crossover frequency 50Hz - 120Hz
  • Crossover slope 12dB/octave
  • Bass boost From 0dB to +9dB at 70Hz
  • Dimensions (W x D x H) 13-9/16" x 9-7/8" x 2-13/16" (344 mm x 250 mm x 71 mm)
