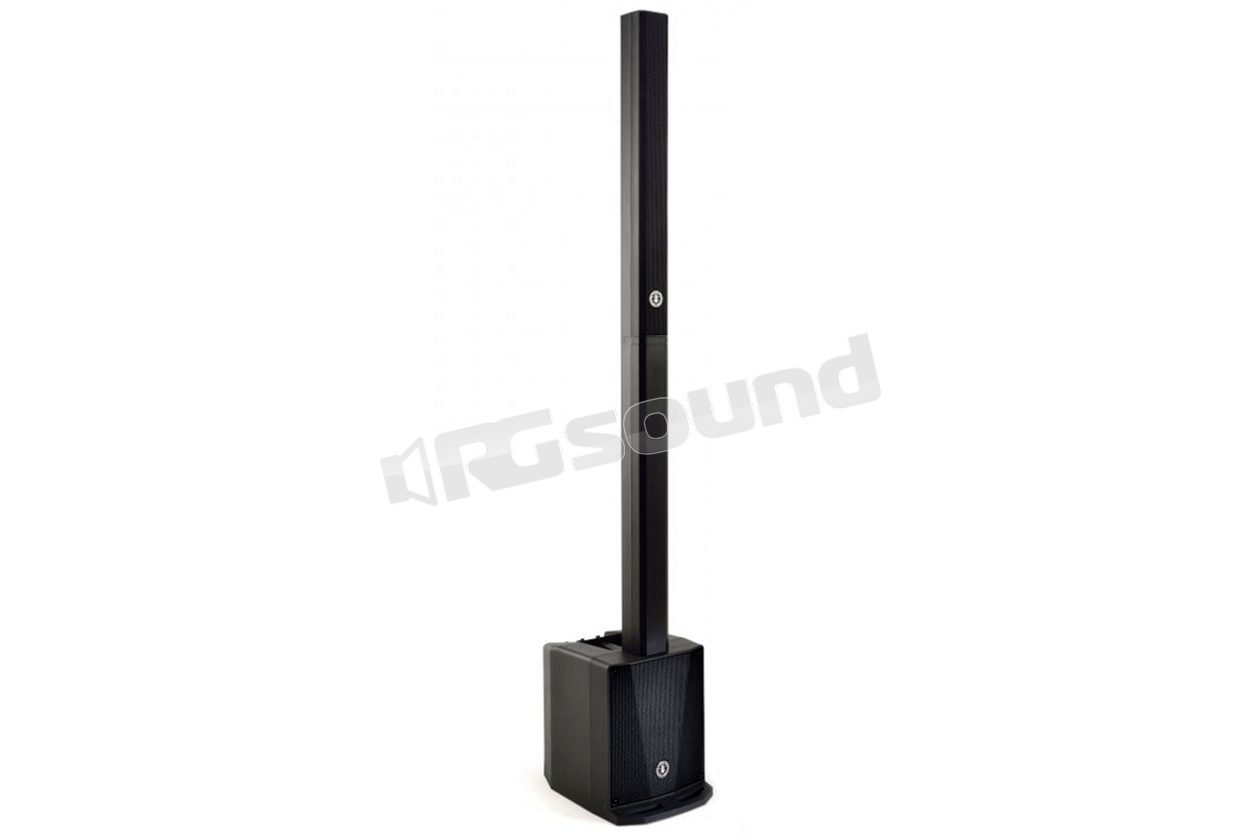

B-TWIG 8 M sub + column system

ANT Advanced Native Technologies

Discontinued

Your price:
€ 749,00
Price per single item (VAT included)

ANT B-TWIG 8 Mobile column speaker system, portable, battery-powered.

B-Twig 8M is the evolution of the B-Twig 8 model, and is composed of a self-powered 8" subwoofer, completed by a column speaker with 6 drivers of 2.75".

The real gem in the acoustic design of the unit is that you get a horizontal dispersion of 120°, so a very wide coverage for any type of application.

In addition to excellent sound performance, the main feature of BTwig 8M is the exceptional battery life. In fact, you can get up to 6.5 hours of playback at full power, with Bluetooth receiver, microphone, display and remote app controls on.

The operating time will extend to as much as 10 hours when the system is driven only at 80% of maximum power and can reach up to 19 hours if used only for background music, approximately 25% power.

B-Twig 8Mobile is equipped with an integrated 3-channel mixer with 2 combined microphone or line inputs. These channels can also handle high-impedance inputs such as an electric bass, acoustic guitar or other instruments.

The third channel is dedicated to a Bluetooth stereo stream or a mini-jack aux input.

Speaking of Bluetooth, the system fully exploits Qualcomm's true wireless stereo technology. This means you can stream a stereo signal to 2 systems simultaneously, and this is certainly the best feature if you need a larger PA for background music: there is no need for cables, there is no need for power outlets, you only need 2 B-Twig 8 Ms and one smartphone to stream your jam in stereo. An iOS app will remotely control the mixer board, so levels, equalizers and so on.

The same smartphone you are using for audio streaming via Bluetooth, will also be able to control all speaker settings simultaneously.

Whenever you prefer to manage controls directly on board, there is this high brightness color LCD display at the top of the amplifier module that allows full control of the mix and speaker settings.

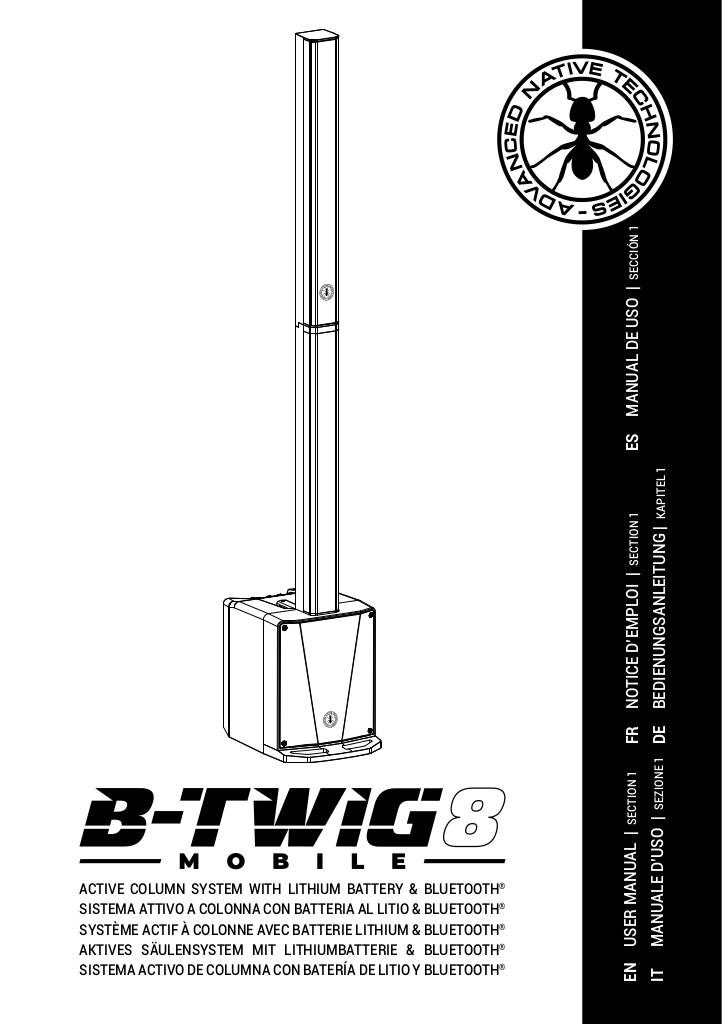

Manuale utente

n-20220902114155-b-twig-8-mobile-manual-web-2021-09-03.pdf

ANT B-TWIG 8 Mobile technical features

Active column system
Subwoofer (B-TWIG 8S) Vented enclosure 1 x 8" Ferrite - 1.5" VC - custom speaker
Array speaker (B-TWIG 8CS) 6 x 2.75" - 0.75" VC - custom neodymium speakers
Average dispersion Horizontal 120°
Frequency response 50Hz - 20kHz
MAXIMUM SPL 120dB
Class D amplification
Peak power (LF + HF) 1000W
Crossover 24dB/Oct at 250Hz
I/O Connectors CH 1, CH2: Combo XLR-F + 6.35mm (1/4") jack, CH3: 2 x RCA (L+R), 1 x 3.5mm AUX jack, MIX OUT: 1 x XLR -M
Controls channel levels, input signal selectors, treble and bass equalizer, Bluetooth® Pair button
Power supply 100-240V~ 50-60Hz
Fuse T5A L 250V~
Mounting mechanism Custom sliding connector, with automatic locking
Cabinet Polypropylene

B-TWIG 8S MOBILE
Dimensions (W x H x D) 304 x 385 x 443 mm (11.9" x 15.1" x 17.4")
Weight 12.3 kg - 27.1 lbs
Column speaker 8CS
Dimensions (W x H x D) 92 x 800 x 90.5 mm (3.6" x 31.5" x 3.6")
Weight 4.1 kg - 9 lbs

Lithium battery
Cell type 3.6V - INR18650S / 2500mAh
Battery pack 28.8V / 5000mAh -
Battery indicators 5 LEDs
Battery life Charging time: approximately 5 hours, Discharge time at maximum power: 6.30 hours, Discharge time at 80% power: 10 hours, Discharge time at 25% power: 19 hours
DIGITAL MATRIX CONTROLLER
Available I/O Bluetooth, AUX IN
Bluetooth version 5.0 Dual Mode with Qualcomm TrueWireless Stereo
APP Ant Speaker Controller available on AppleStore

Discontinued
