B 69X.2

Helix

Discontinued

Your price:
€ 99,90
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
35 - 22.000 Hertz
MAX Power
180 Watt
RMS Power
60 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Polipropilene
Tweeter Material
Mylar

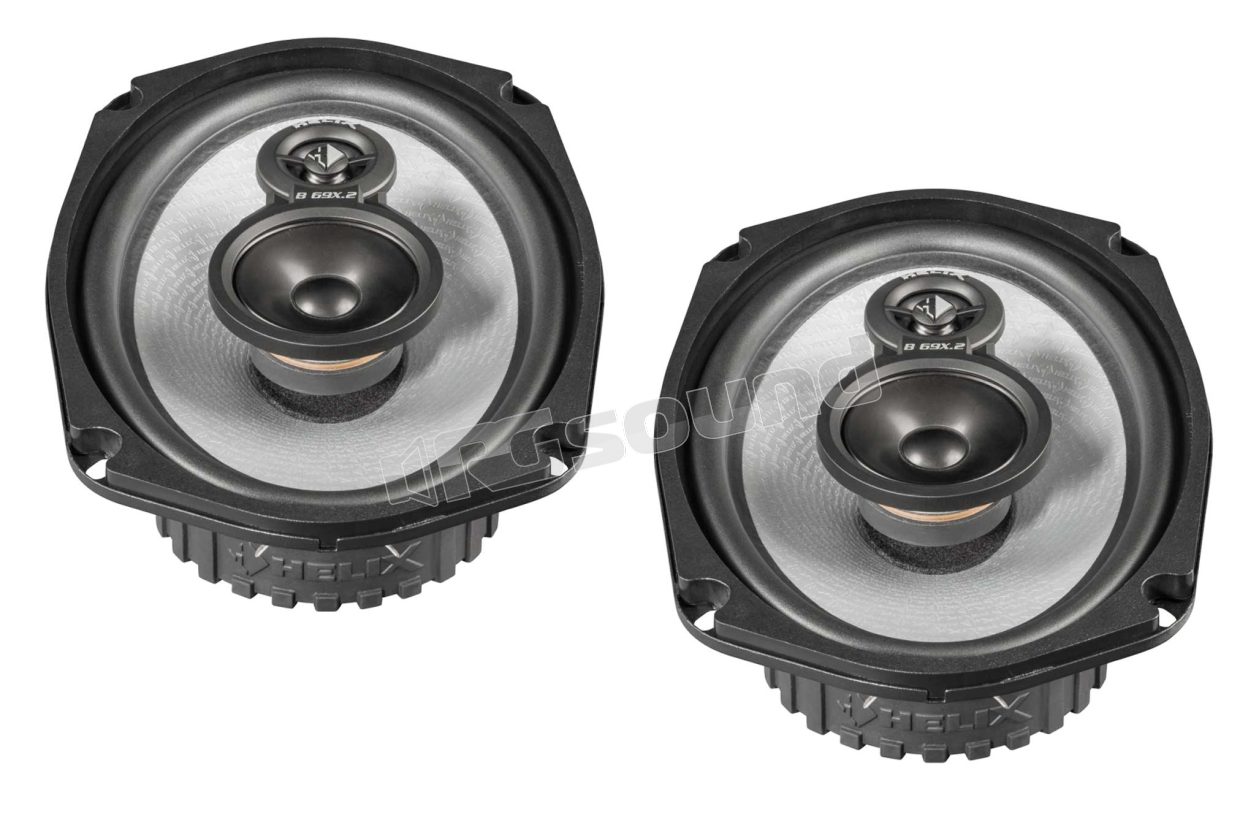

Helix B 69X.2 pair of elliptical 3-way coaxial speakers, 160x230mm woofer (6x9"), 50mm midrange and 13mm tweeter with neodymium magnet.

Evolution of the Helix Series B speakers, the new models feature numerous modifications: the aesthetic finishes and the use of tested components guarantee maximum power and longevity with a modern and cool design.

The coordinated crossovers ensure precise separation of the audio spectrum and a flat frequency response, deep bass, sweet midrange and detailed highs.

Furthermore, all speakers have been designed for easy installation with minimal effort.

Helix B 69X.2 Features

165 mm woofer (6.5") with injected polypropylene cone and raised Helix logo

50 mm midrange (2") in Mylar

13 mm tweeter (0.5") with neodymium magnet for crystal-clear highs

Basket design with additional ventilation holes for better voice coil cooling

Integrated crossover with 6 dB slope

Grilles included

Helix B 69X.2 Specifications

Power handling RMS 60 Watts

Power handling Max 180 Watts

Frequency range 35 Hz - 22,000 Hz

Sensitivity 91 dB 1W / 1m

Impedance 4 Ohms

Diameter 160x230 mm (6x9")

Installation depth 81 mm (3.2")

Cone material woofer injected PP

Midrange Mylar

Tweeter Mylar

Crossover Integrated 6 dB slope

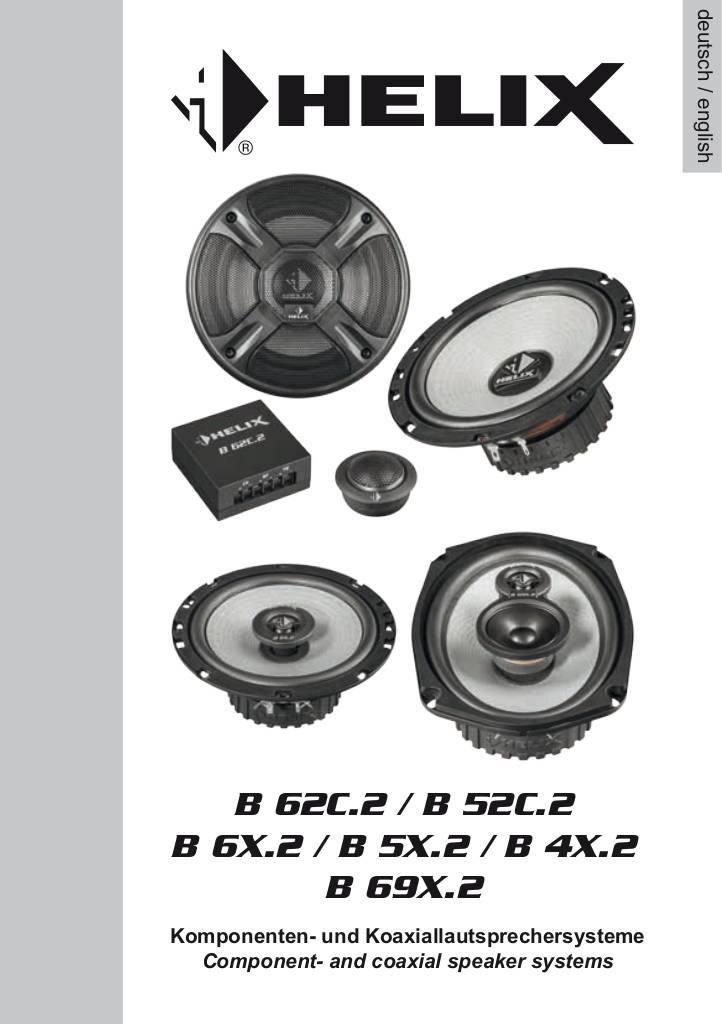

Manuale utente

n-20161123100423-ba-b-2-speaker.pdf
Discontinued
