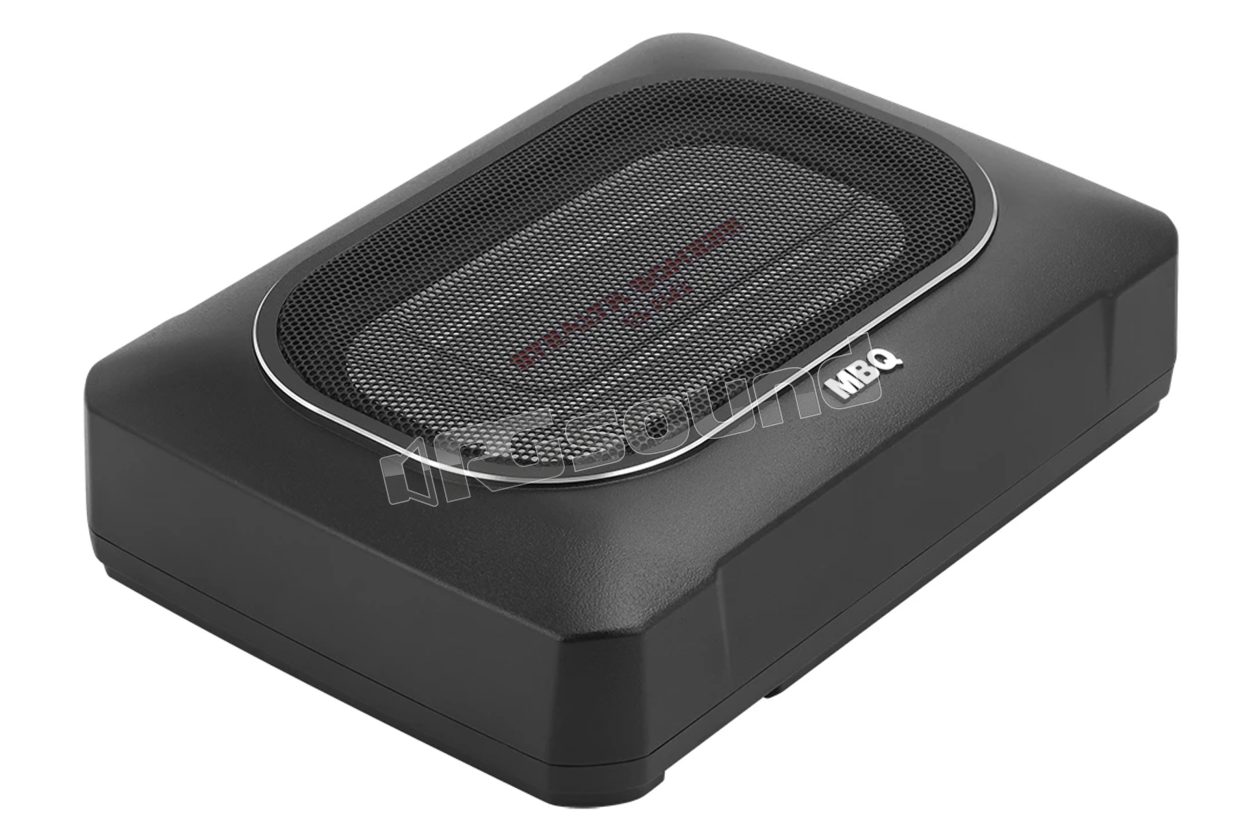

B-68 Active under-seat subwoofer 130x200 mm

MBQ
Your price:
€ 159,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
Other sizes
MAX Power
300 Watt
RMS Power
130 Watt
Frequency Response
40 - 150 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Weight
3,5 Kg
Enclosure Size
280 x 200 x 75 mm
Enclosure Type
Sealed Enclosure

MBQ B-68 active subwoofer 130x200 mm, 130 W RMS power

The revolutionary MBQ B-68 under-seat subwoofer is a compact amplified subwoofer that delivers surprising bass frequencies in a robust all-aluminum enclosure. It would be a perfect yet affordable solution for your factory audio system. The solid performance of the 5"x8" subwoofer driver pairs perfectly with a low-profile enclosure just 75 mm tall, allowing it to fit under the seat or in the trunk area without taking up too much space. B-68 comes with a built-in 130 W amplifier and simple wiring connection. Installing a subwoofer could finally be this easy.

B-68 Features
  • Active subwoofer with very compact dimensions but capable of great bass response thanks to the 120x200 mm dual coil speaker
  • Size and profile contained allow for invisible installation on practically any vehicle
  • Die-cast aluminum housing
  • 120x200 mm extra-flat speaker
  • Low and high level inputs
  • Auto turn-on function
  • Remote control of phase, crossover frequency and output level

Scheda tecnica

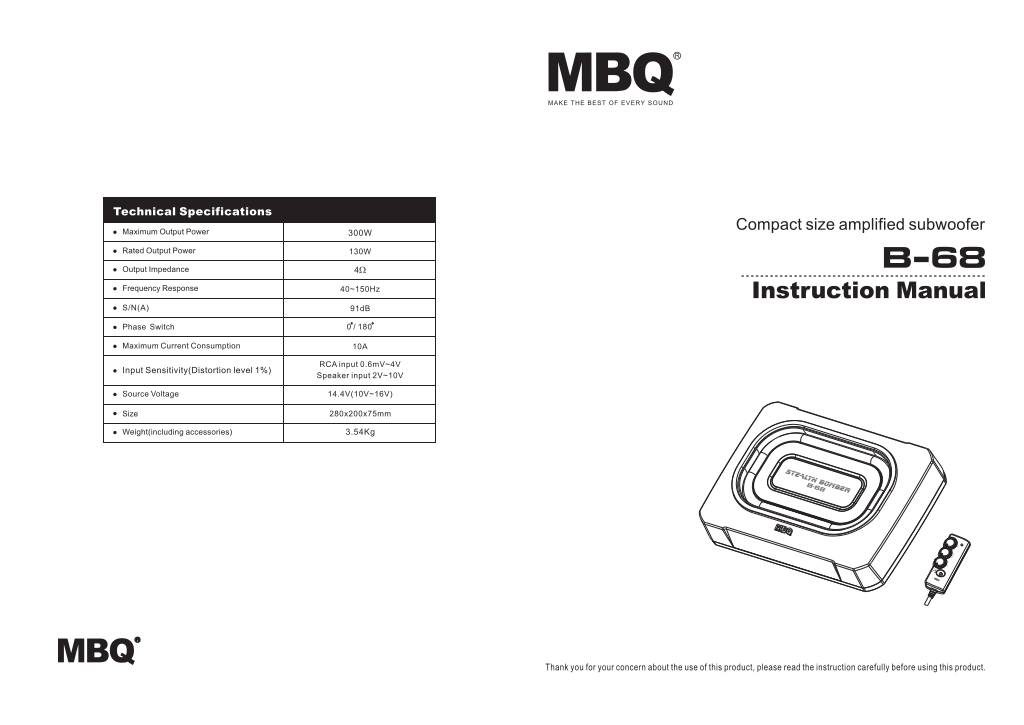

n-20220113120825-b-68-manual.pdf

MBQ B-68 technical specifications

  • Maximum output power 300 W
  • RMS output power 130 W
  • Amplifier type Class D
  • Sensitivity 92dB
  • Frequency response 40Hz-150Hz
  • Impedance 4Ω
  • Operating voltage 14.4 V (10-16 V)
  • S/N ratio 91dB
  • Low pass filter 50Hz-100Hz
  • Phase switch 0°/180°
  • Auto turn on/off
  • High level input only
  • Speaker size 5"x8"(120x200mm)
  • Cone material Aluminum
  • Ferrite magnet motor
  • Enclosure Sealed die-cast aluminum enclosure
  • Dimensions 280x200x75mm
  • Net weight 3.54 kg
€ 159,00 Price incl. VAT
