B 12W

Helix

Discontinued

Your price:
€ 99,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
29 Hertz
Sensitivity
90 dB
Impedance
2x2 Ohm
Weight
0.11 Kg
Installation Depth
138 mm

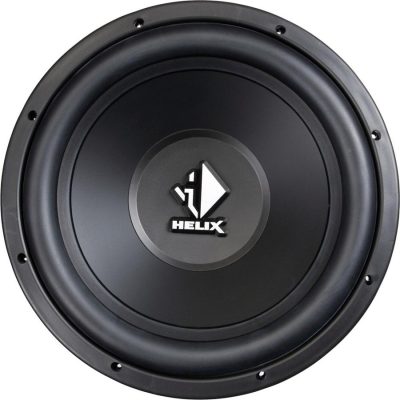

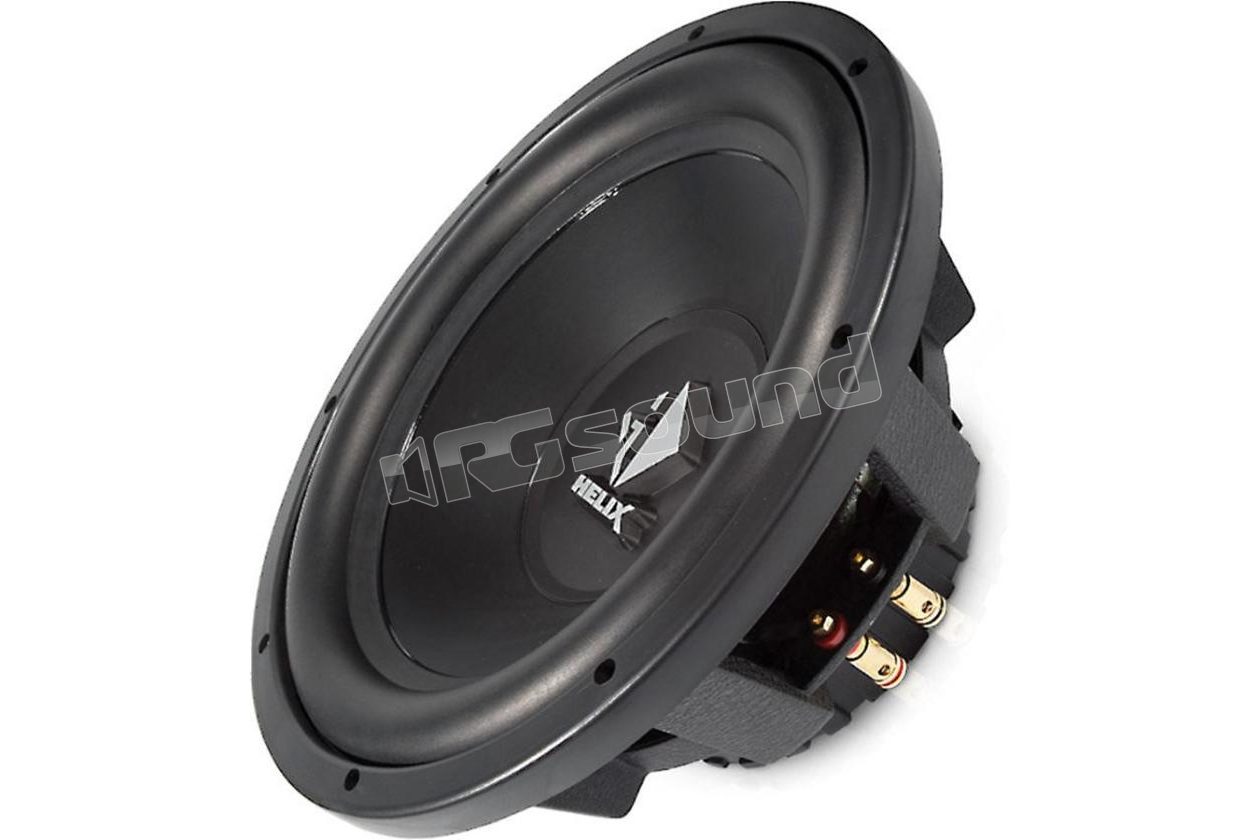

Helix B 12W flat subwoofer 300mm with die-cast aluminum basket, polypropylene membrane and dual voice coil 2 x 2 Ohm

When space is limited and rich bass is required, the B 12W subwoofer comes into play. Polypropylene cone, dual voice coil with 2x2 Ohm impedance.

Rich sound, deep and high bass, greater freedom in system configuration.

Features:
RMS / Max Power: 300/600 Watt
Sensitivity: 90 dB
Impedance: 2 x 2 Ohm
Resonance frequency: 29 Hz
Qms: 4.72
QES: 0.58
Qts: 0.52
VAS: 90 liters
Linear cone: +/- 6 mm
Depth: 138 millimeters

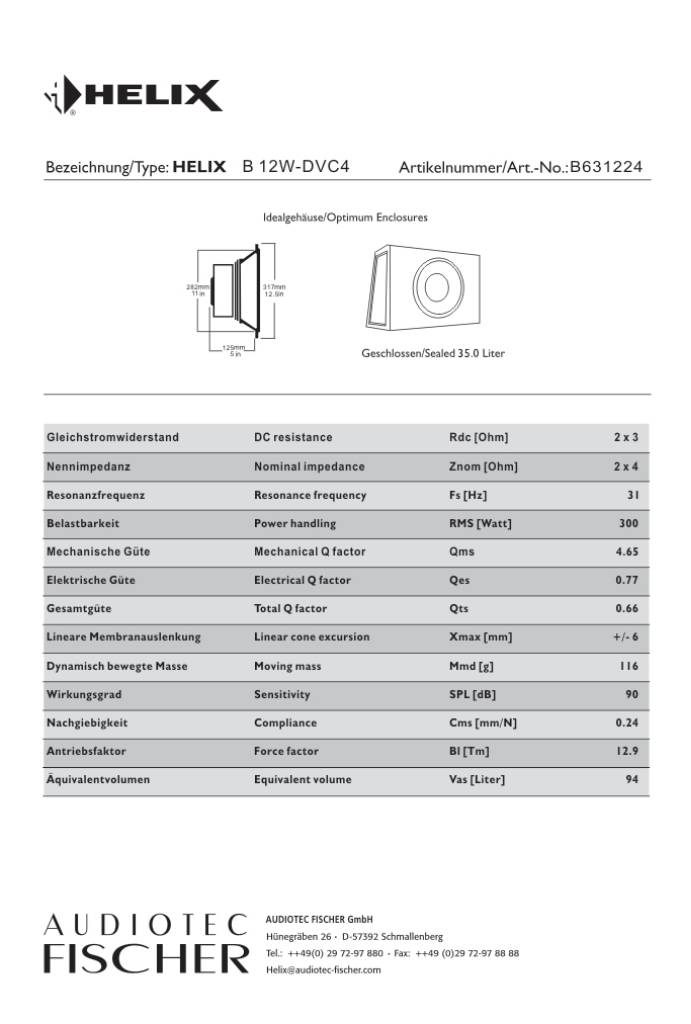

Manuale

20130124120507-ba-b-12w-dvc4.pdf
Discontinued
