B 10W

Helix

Discontinued

Your price:
€ 109,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
39 Hertz
Sensitivity
89 dB
Impedance
2x2 Ohm
Weight
0.07 Kg
Installation Depth
120 mm

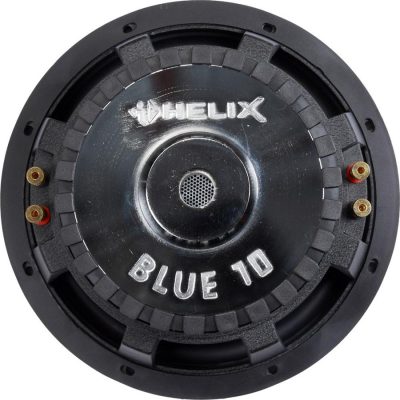

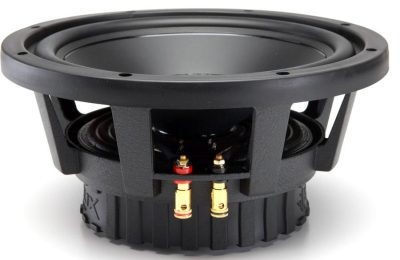

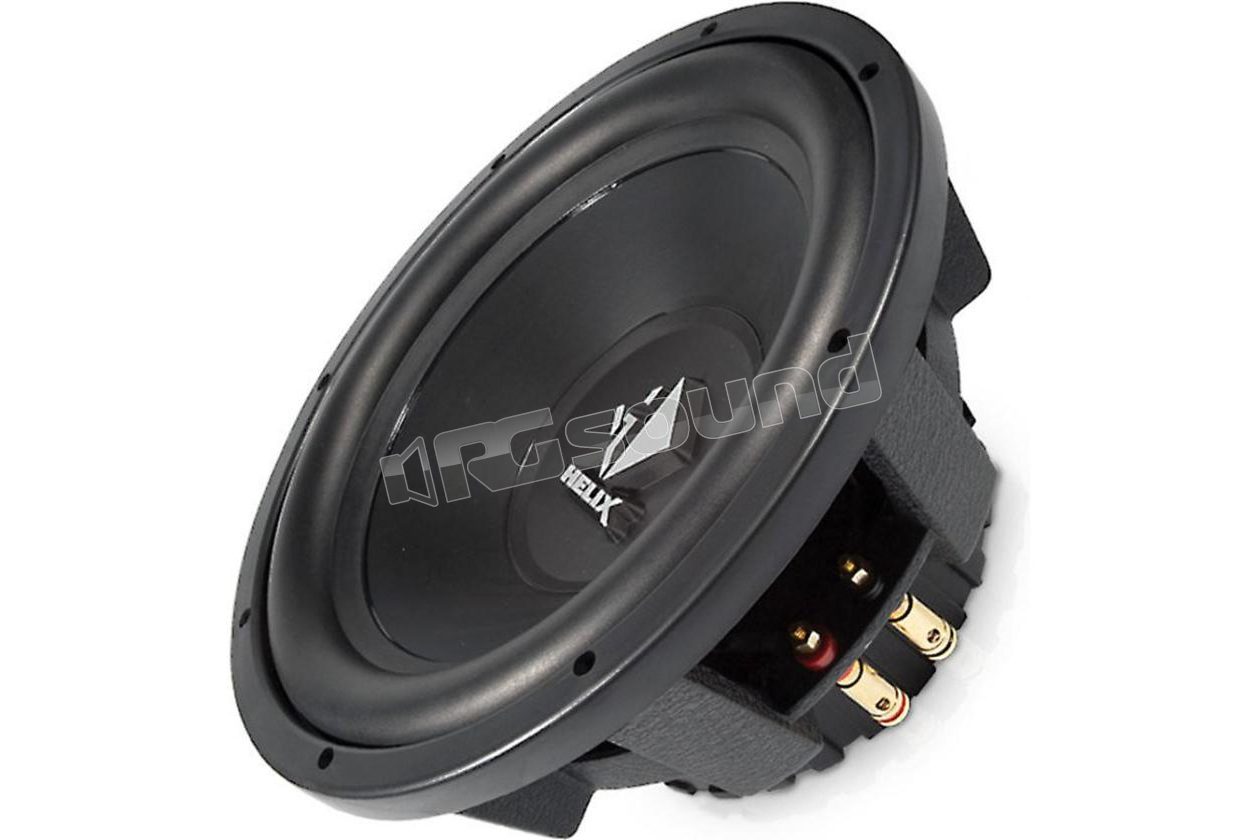

Helix B 10W flat subwoofer 250mm with die-cast aluminum basket, polypropylene cone and dual voice coil 2 x 2 Ohm

When space is limited and rich bass is required, the B 10W subwoofer comes into play. Polypropylene cone, dual voice coil with 2x2 Ohm impedance.

Rich sound, deep and high bass, greater freedom in system configuration.

Helix B 10W Features:

RMS / Max Power 250 / 500 Watt
Efficiency 89 dB
Impedance 2 x 2 Ohm
Resonance Frequency 39 Hz
Qms 3.47
Qes 0.52
Qts 0.45
VAS 35 Liter
Linear Cone +/- 6 mm
Depth 120 mm

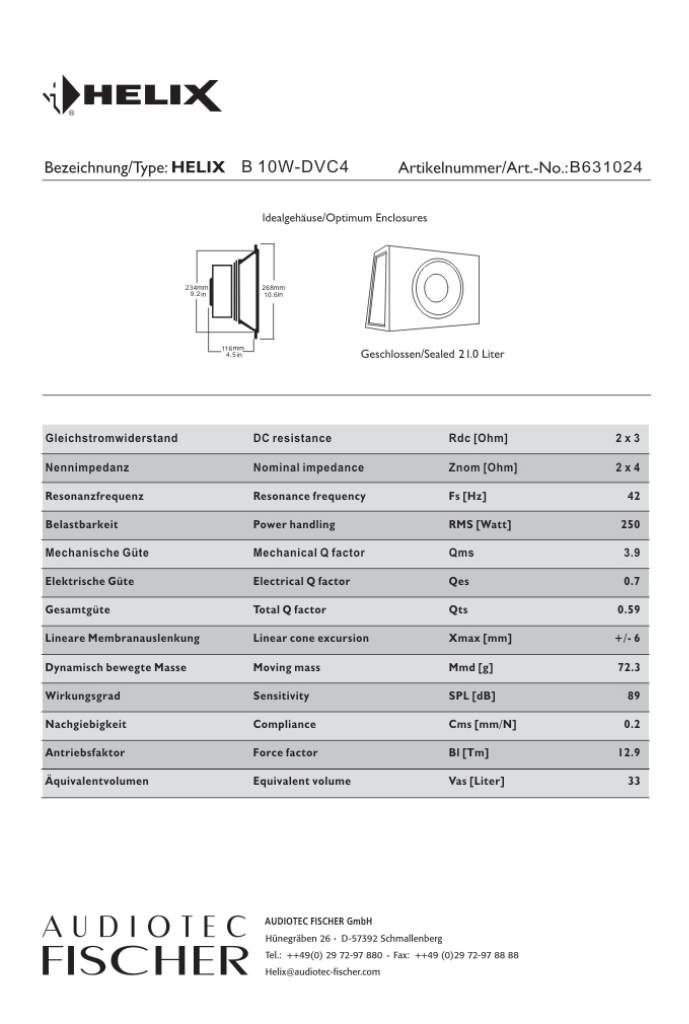

Manuale

20130124115611-ba-b-10w-dvc4.pdf
