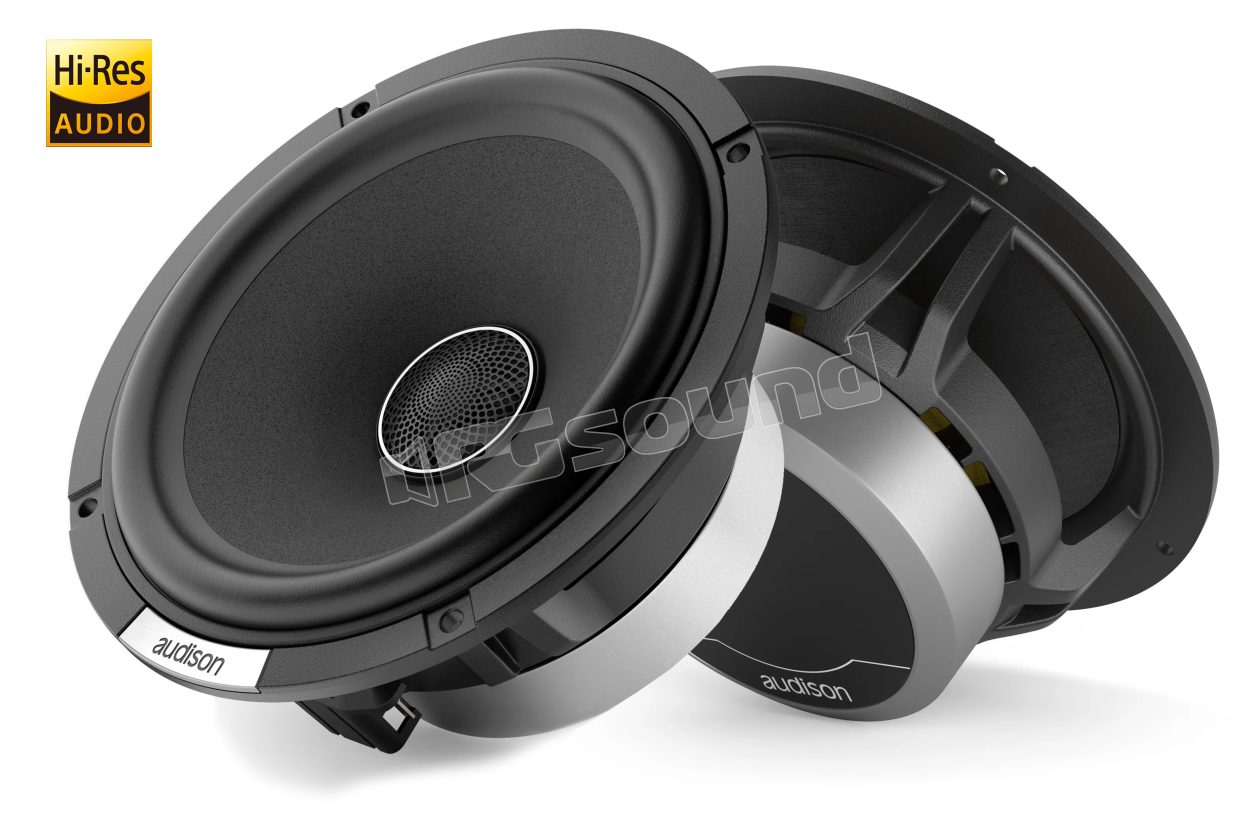

AVX 6.5 II 16.5cm Hi-Res Audio coaxial speakers, Voce II series

Audison
Your price:
€ 499,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
45 - 40000 Hertz
MAX Power
240 Watt
RMS Power
120 Watt
Sensitivity
91,5 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Tetolon

Audison AVX 6.5 II 165 mm (6.5") Coaxial Speakers Hi-Res Audio Voce II Series

The Audison VOCE II AVX 6.5 coaxial speaker is a standout component of the VOCE II line, offering a unique combination of a 6.5 inch woofer and a certified Hi-Res 1 inch dome tweeter. Achieving Hi-Res Audio certification for a coaxial system is particularly significant and reflects the meticulous design of every element, from the grille to the basket. Designed for bi-amplification, this speaker can be actively optimized with a DSP while maintaining the flexibility of separate passive crossovers for each driver. It also includes versatile OEM-type connectors to enhance integration and performance in any vehicle.

Certified Hi-Res Innovation

The coaxial speaker is arguably the most compelling component of the entire VOCE II line. Building on all the advanced features of the AV 6.5 P II woofer, it incorporates a certified Hi-Res 1" (25 mm) dome tweeter! If obtaining Hi-Res certification for independent tweeters was a challenge, achieving it for a coaxial speaker was a monumental feat, as every surrounding element - grille, woofer voice coil, cone profile and even basket design - plays a crucial role. To fully exploit its potential, a coaxial has been engineered to support bi-amplification, allowing it to be actively filtered and optimized for in-cabin acoustics via a DSP. At the same time, it features separate passive crossovers for the woofer and tweeter, offering flexibility for various system configurations. The package also includes OEM-type connectors for both woofer and tweeter, enabling seamless integration for active configurations and maximizing performance in any vehicle.

Audison AVX 6.5 II Technical Specifications

  • Woofer size 165 mm (6.5 inches)
  • Impedance 4 Ohm
  • Minimum impedance 3.1 Ohm
  • Power handling - Peak 240 W
  • Power handling - continuous 120 W
  • Sensitivity 91.5 dB
  • Frequency response 45 ÷ 40000
  • Voice coil diameter 40 mm (1.6 inches)
  • Frame material ALUMINUM
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Magnet dimensions 100-45-18
  • Voice coil material CCAW
  • Former material FIBERGLASS
  • Cone material SEMI-PRESSED PAPER
  • Surround material RUBBER
  • Flux density 0.84
  • Xmax 4.95 mm (1.57 inches)
  • Xmech 7.5 mm (0.3 inches)
  • Slot height 6 mm (0.24 inches)
  • Voice coil winding height 13 mm (0.51 in)

Tweeter technical specifications

  • Tweeter size 25.4 mm (1 in.)
  • Impedance 4 Ohm
  • Minimum impedance 3.7 Ohm
  • Program power 20 W
  • Nominal Aes power 10 W
  • Sensitivity 98 dB
  • Frequency response 1500 - 40000
  • Voice coil diameter 25 mm (0.98 inches)
  • Voice coil material CCAW
  • Adapter material ALUMINUM
  • Dome material TETOLONE FIBER
  • Surround material TETOLONE FIBER
  • Magnet material NEODYMIUM

Electrical-acoustic specifications

  • Re 2.9 Ohm
  • Fs 67 Hz
  • Mms 14.9 g (0.53 oz)
  • Cms 0.38
  • Bl 5.4
  • Qms 8
  • Qes 0.62
  • Qts 0.58
  • Vas 9.1 l (0.32 ft)
  • LE 0.3 mH
  • Reference efficiency 90.5
