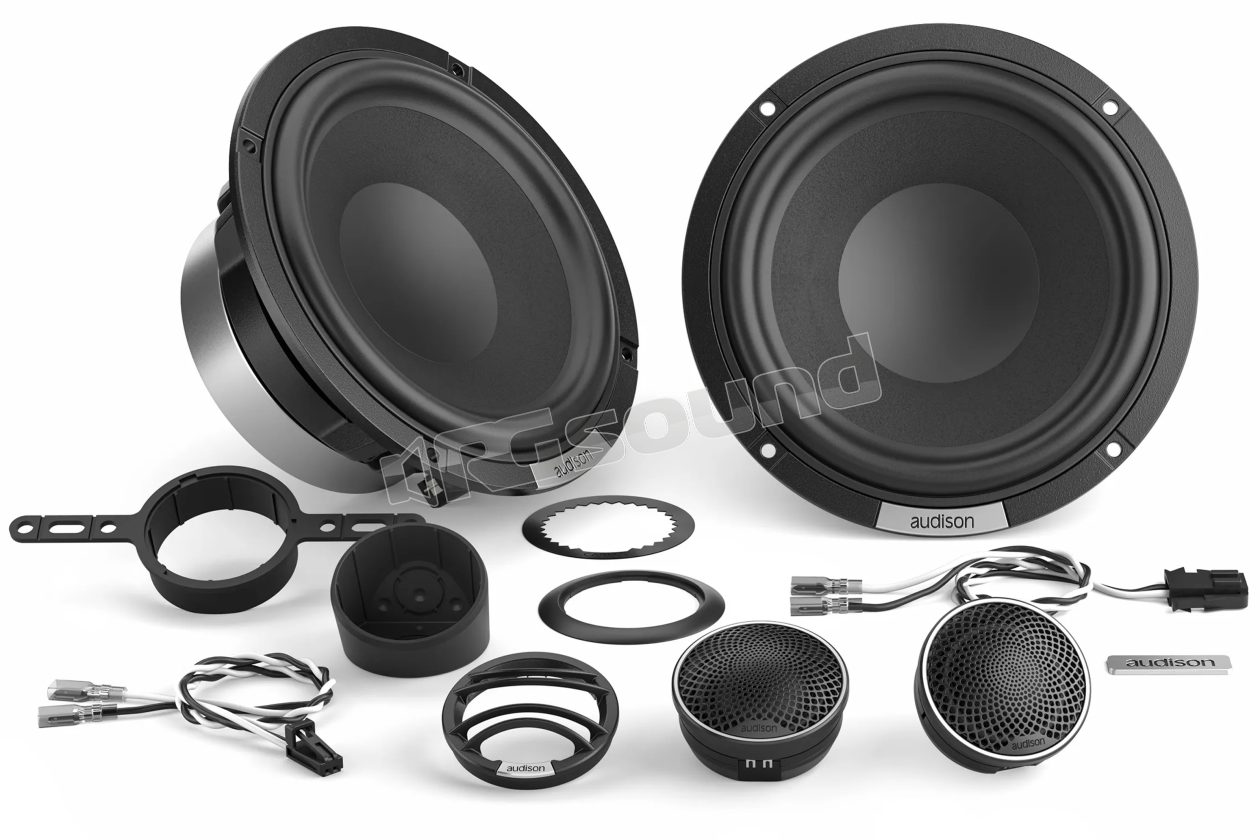

AVK 6A P II Active 16.5 cm speaker system, Voce II series

Audison
Your price:
€ 749,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
45 - 40000 Hertz
Woofer Size
165 mm
Tweeter Size
28 millimetri
MAX Power
300 Watt
RMS Power
150 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Tetolon

Audison AVK 6A P II Active speaker system 16.5cm VOCE II series

The Audison VOCE II AVK 6A P II system, designed for dynamic performance, integrates the Hi-Res AV 1.1 II tweeter and the AV 6.5 P II midwoofer component. This combination achieves extraordinary power handling up to 150 W RMS, thanks to the 1.6 inch (40 mm) CCAW voice coil that guarantees exceptional durability and dynamic response. The system excels in delivering powerful midwoofer performance, capturing the full essence of music with clarity and precision. Greater installation flexibility is ensured by OEM and Faston type connectors, which ensure perfect integration in any vehicle.

2-way active system AVK 6A P II

The AVK 6A P II was designed to be the ideal partner for modern DSP processors capable of responding to even the slightest adjustments of any parameter. The extended frequency response and flexibility of the AV 1.1 II and AV 6.5 P II drivers allow you to set the crossover points within a wide range, adapting perfectly to the user's personal preferences. Thanks to the precision of these drivers, every sound detail can be finely tuned to ensure a customized and uncompromised listening experience.

AV 1.1 II Tweeter - Pure performance and versatile installation

The system includes the AV 1.1 II tweeter, designed to deliver crystal clear and detailed high frequencies. Certified Hi-Res Audio, it is able to extend beyond 40 kHz, ensuring accurate and faithful reproduction, ideal for high-resolution audio content. Thanks to its exceptional high-frequency extension, the tweeter ensures excellent off-axis dispersion, perfect for in-vehicle installations, where the listener is not always directly aligned with the speakers. The AV 1.1 II is also equipped with AIF (Any Install Faceplate) technology, which simplifies installation thanks to a range of dedicated accessories. The kit includes both the mesh grille and spoke, offering maximum aesthetic and performance flexibility.

AV 6.5 P II Woofer - Powerful bass and perfect control

The AV 6.5 P II woofer completes the system, offering power and control without compromise in the reproduction of bass and mid frequencies. Designed to handle up to 150W RMS, it is ideal for those seeking an immediate and precise response in the midbass, with powerful dynamics and immersive stereo imaging. Equipped with a high-performance magnet and a 40 mm CCAW voice coil (Copper Clad Aluminum Wire), the AV 6.5 P II ensures a linear and balanced response across the entire bass and mid-frequency spectrum. Its versatility allows it to work in perfect synergy with the DSP, optimizing sound performance in any condition and always ensuring natural and dynamic reproduction.

Audison AVK 6A P II Technical specifications

  • Woofer size 165 mm (6.5 inches)
  • Impedance 4 Ohm
  • Peak power 300 W
  • Continuous power handling 150 W
  • Frequency response 45 - 7500 Hz (-6dB)
  • Voice coil diameter 40 mm (1.57 inches)
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Magnet dimensions 100 X 45 X 18
  • Cone material Stamped paper

Tweeter technical specifications

  • Tweeter size 28 mm (1.1")
  • Frequency response 1000 - 40000 Hz
  • Compliant with HiRes Audio JAS, test conditions IEC 60268-5
  • Peak power handling 180 W
  • Voice coil diameter 28 mm (1.57")
  • Dome material TETOLONE FIBER

Electrical-acoustic specifications

  • Re 2.9 Ohm
  • Fs 66 Hz
  • Mms 15.3 g
  • Cms 0.28
  • BL 5.5
  • Qms 9
  • Qes 0.61
  • Qts 0.57
  • Vas 9.09 l
  • Le 0.3 mH
  • Spl 91 dB
  • Xmax 4.95 mm (0.19 in)
  • Kit technical data
  • Cone diameter 128.3 mm
€ 749,00 Price incl. VAT
