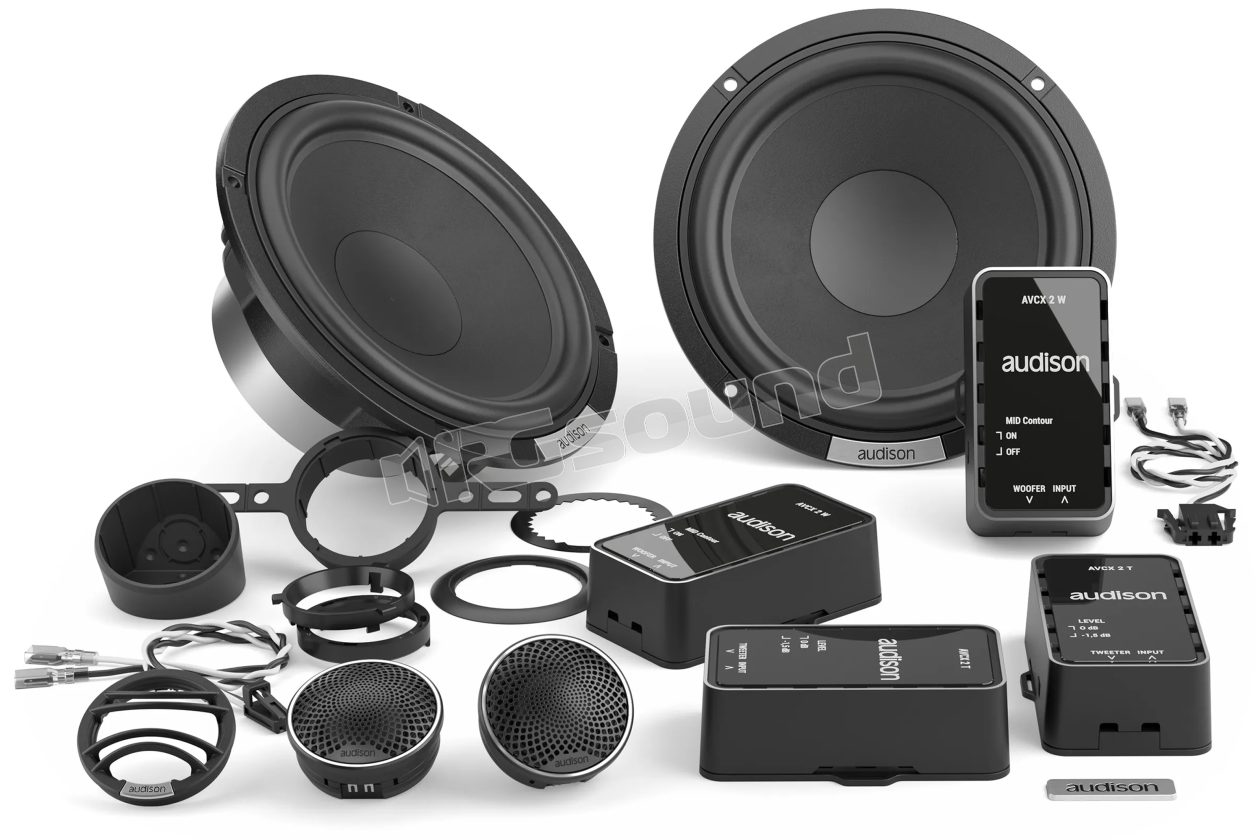

AVK 6 S II Voce II series 2-way speaker system, Hi-Res Audio certified

Audison
Your price:
€ 499,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
50 - 5500 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
250 Watt
RMS Power
125 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Tetolon

Audison AVK 6 S II 165 mm (6.5") speaker system Voce II series with a maximum power of 250 W

The Audison VOCE II AVK 6 S II system, equipped with the high-power AV 6.5 S II woofer and the AV 1.0 II tweeter certified Hi-Res Audio, offers superlative performance. The integration of the AVCX 2 W and AVCX 2 T crossovers simplifies installation and enables advanced sound tuning, including bi-amplification and fine adjustments of tweeter level and midrange contour. These crossovers, built with high-quality components, guarantee a harmoniously balanced audio experience, improving duration and clarity. This configuration allows for perfect integration and superior sound customization, representing the ideal solution for sophisticated car audio upgrades.

AV 1.0 II high-performance tweeter and versatile installation

The compact AV 1.0 II tweeter is certified Hi-Res Audio and can extend beyond 40 kHz, offering detailed reproduction of high frequencies with optimal off-axis dispersion, making it perfect for OEM in-cabin installations. The tweeter is equipped with AIF (Any Install Faceplate) technology, which reduces installation time and offers three different mounting accessories, including:

  • Mesh grille for the best compromise between protection and performance in A-pillar installations.
  • Radial grille for maximum acoustic performance.
  • Customizable faceplate to adapt to any configuration.
  • Includes two Audison logo stickers included, which allow customized positioning to enhance branding and aesthetics.

Thanks to these accessories, the AV 1.0 II integrates perfectly in any installation scenario, always delivering the best possible sound performance.

AV 6.5 S II woofer power and compactness for superior sound quality

The AV 6.5 S II woofer is designed to deliver high-level performance despite reduced installation depth. Capable of handling up to 100W RMS, this woofer combines compactness and performance, guaranteeing powerful and well-defined bass, ideal for dynamic and controlled reproduction.

The woofer is equipped with a 36 mm CCAW (Copper Clad Aluminum Wire) voice coil and an optimized magnet assembly, which guarantees wide excursion and precise control even during the most intense dynamic peaks, always maintaining natural sound free from distortion.

AVCX 2 W and AVCX 2 T: compact passive crossovers for precision tuning

The AVK 6S II system is equipped with two separate and compact passive crossovers:

  • AVCX 2 W for the woofer
  • AVCX 2 T for the tweeter

These crossovers are designed to occupy minimal space and simplify installation, facilitating cable management. Despite the compact dimensions, carefully selected components guarantee optimal crossover performance between the tweeter and woofer, with precise and natural sound reproduction. Audison engineers accomplished a small miracle, managing to combine compact dimensions and high performance. Thanks to this meticulous work, the AVK 6 S II system offers excellent reproduction of the entire acoustic spectrum, guaranteeing an engaging and balanced listening experience. This version is optimized to guarantee clarity and engagement, effectively communicating the product's characteristics to car audio enthusiasts and professionals.

Audison AVK 6 S II Technical Specifications

  • Woofer size 165 mm (6.5 inches)
  • Impedance 4 Ohm
  • Power handling - Peak 250 W
  • Power handling - continuous 125 W
  • Frequency response 50 - 5500 Hz (-6 dB)
  • Voice coil diameter 36 mm (1.42 inches)
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Magnet dimensions 92 x 42 x 15 mm
  • Cone material Stamped Paper
  • Crossover type Two-way Separate enclosure for woofer (AVCX 2 W - Full/6dB Oct.) and tweeter (AVCX 2 T - 12dB/Oct.)
  • Crossover level adjustment AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off
  • Low-pass crossover AVCX 2 W: Woofer, full/6dB oct.
  • Hi-Pass Crossover AVCX 2 T: Tweeter, 12dB/Oct.
  • Crossover Cut Off 3.5 kHz (Mid-Contour Off)
  • Cone diameter 128.35 mm
  • Woofer Weight 1.3 kg
  • Tweeter Weight 0.14 kg
  • Crossover Weight 0.1 kg
  • Tweeter size 25.4 mm (1 in)
  • Frequency response 1200 - 40000 Hz
  • Compliant with HiRes Audio JAS, test conditions IEC 60268-5
  • Power handling - Peak 150 W Hi-Pass Filtered at 1.5 kHz - 12dB Oct.
  • Voice coil diameter 25 mm (1.42")
  • Dome material TETOLONE FIBER

LF Electrical-acoustic Specifications

  • Re 2.9 Ohm
  • Fs 67 Hz
  • Mms 13.2 g
  • Cms 0.43
  • BL 4.9
  • Qms 6.76
  • Qes 0.67
  • Qts 0.61
  • Vas 10.28 l
  • Le 0.3 mH
  • Spl 91 dB
  • Xmax 4.2 mm (0.17 inches)
