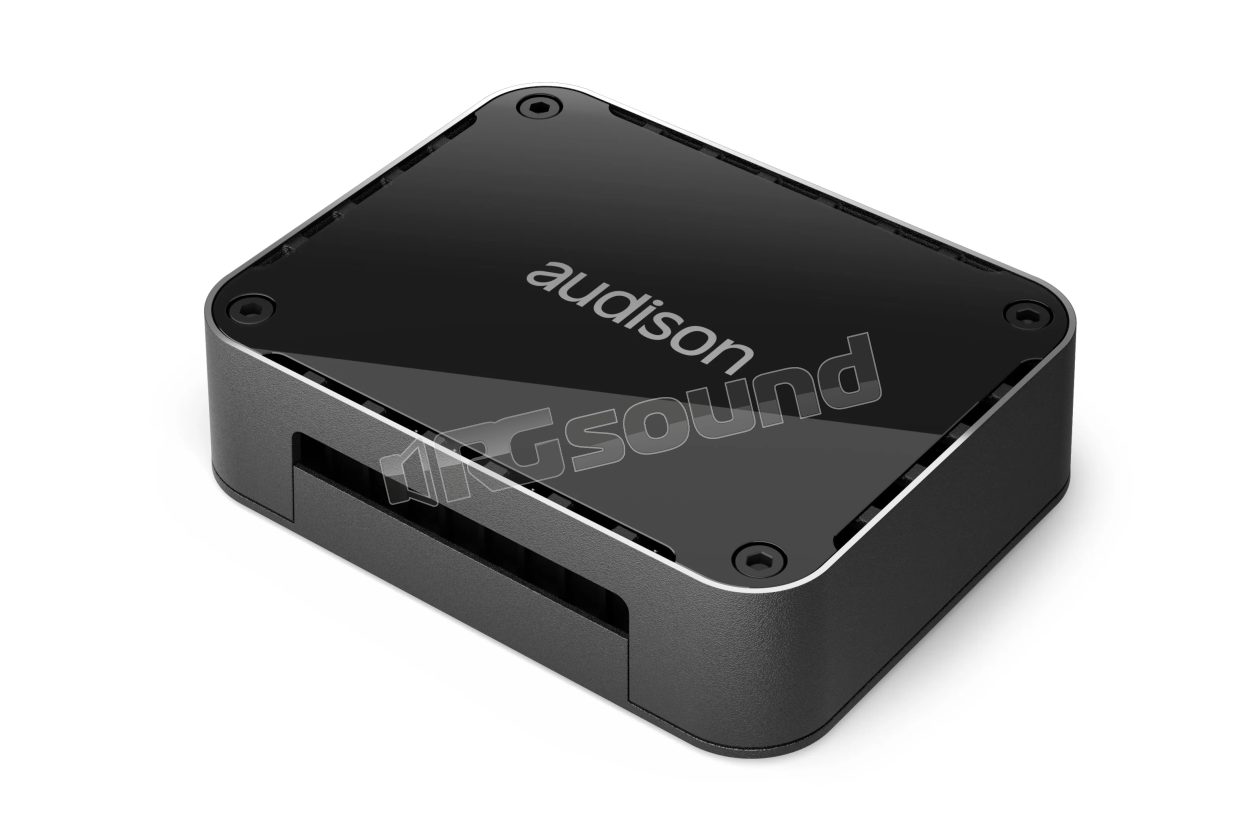

AVCX 3P Voce II series three-way crossover

Audison
Your price:
€ 399,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

Audison AVCX 3P three-way passive crossover (woofer / midrange / tweeter - 12dB/Oct.)

The Audison AVCX 3P is a three-way passive crossover meticulously designed to facilitate biamplification and perfect integration with the Audison VOCE II series. This crossover is specifically designed to harmonize the performance of the AV 3.0 II midrange speaker with other VOCE II components, ensuring a coherent and balanced soundstage. The AVCX 3P design supports distinct amplification of the woofer, midrange and tweeter, allowing precise control over each frequency band. This configuration is ideal for achieving the optimal blend of dynamics and sound clarity, tailored for the sophisticated configurations required by modern car audio enthusiasts.

Designed to embody the purest expression of Audison's acoustic philosophy, the AVCX 3P is the definitive 3-way passive crossover, developed to integrate seamlessly into the VOCE II speaker system. Engineered with precision and flexibility, it enables advanced system configurations with biamplification support, ensuring accurate tonal balance and dynamic control between the woofer, midrange and tweeter sections.

The AVCX 3P is the ideal complement to the AV 3.0 II midrange, working in perfect harmony with VOCE II components to create a coherent and high-resolution soundstage tailored for the most refined listening environments. With high-quality components, versatile contour controls and a high-current design, it is the foundation of a truly audiophile-level 3-way passive configuration.

Audison AVCX 3P technical specifications

  • Low-pass crossover filter type 250 Hz, 12 dB/octave.
  • Band-pass crossover filter type 50 Hz - 2.5 kHz, 12 dB/octave.
  • High-pass crossover filter type 2.5 kHz, 12 dB/octave.
  • Crossover level controls Tweeter levels (+2/0/-2 dB), Midrange levels (0/-3 dB)
  • Dimensions 146 mm (5.75") x 114 mm (4.49") x 40 mm (1.57")
€ 399,00 Price incl. VAT
