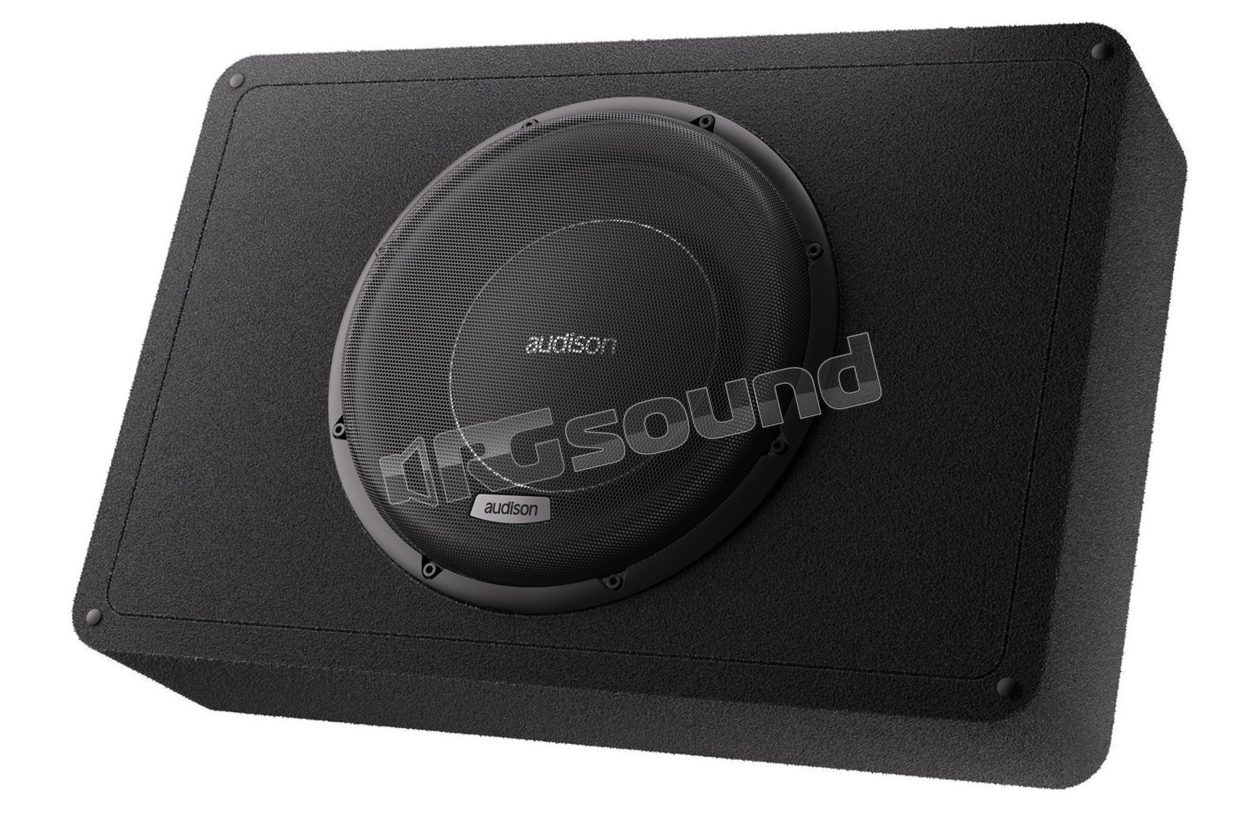

AVBX 12 D4 II 30cm reduced-depth boxed subwoofer, VOCE II series

Audison
Your price:
€ 699,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
300 mm
MAX Power
1100 Watt
RMS Power
550 Watt
Frequency Response
25 - 400 Hertz
Sensitivity
84,5 dB
Impedance
2 Ohm
Enclosure Size
607 x 175 x 401 mm
Enclosure Type
Sealed Enclosure

Audison AVBX 12 D4 II subwoofer VOCE II in ultra-slim sealed enclosure

AVAILABLE FROM MID-DECEMBER

Features

  • Ultra-slim sealed enclosure designed to maximize performance in minimal space, delivering precise and articulate bass response while preserving precious vehicle storage volume.
  • High-density 15 mm wood structure with internal reinforcements, built using robust MDF panels and strategic internal reinforcements, ensures maximum structural rigidity and suppresses unwanted resonances for clean low-frequency output.
  • Dual-orientation 2S architecture allows installation either facing down or up, offering installation flexibility based on acoustic goals and available space.
  • Smart Plug (SSP) Sub terminal with Plug-&-Play and pressure connectors: combines quick-disconnect functionality with traditional pressure terminals, allowing secure and efficient wiring and hassle-free maintenance.
  • Acoustic design matched to VOCE II subwoofers: precisely tuned internal volume and damping ensure perfect integration with the AV 12 D4 II driver for seamless low-frequency performance.
  • Compact footprint for OEM integration to easily fit a wide range of vehicles, offers an OEM-friendly solution for discreet yet highly performant bass enhancement.
  • Refined and minimalist style in line with VOCE II design language, combines functionality and elegance, matching the aesthetics of VOCE II speakers for a cohesive system look.
  • Rigid enclosure damping for accurate transient response, minimizes resonances and cabinet coloration, ensuring accurate reproduction of kick drums, bass lines and low-frequency effects with minimal distortion.
  • High-current connectivity support designed to accommodate heavy-gauge cables for powerful system configurations without electrical bottlenecks.
  • eID Technology: the integrated Elettromedia eID system enables product registration, access to technical documentation and activation of warranty extension.

Audison AVBX 12 D4 II technical specifications

  • Nominal diameter 300 mm
  • Impedance 2 Ohm
  • Maximum power 1100 W
  • Continuous power 550 W
  • Sensitivity 84.5 dB
  • Frequency response 25-400 Hz
  • Frame material ALUMINUM
  • Magnet material HIGH FLUX DENSITY FERRITE
  • Voice coil material CCAW
  • Surround material FIBERGLASS
  • Cone material POLYPROPYLENE WITH MICA INJECTION
  • Edge material RUBBER
  • Xmax 16.8 mm
  • Xmech 20 mm
  • Voice coil winding height 37 mm
  • Gap height 7 mm
  • Driver displacement volume 0.9 l
€ 699,00 Price incl. VAT
