AVBX 10 D4 II 25 cm subwoofer in shallow-depth enclosure, VOCE II series

Audison
Your price:
€ 629,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer in enclosure
Speaker Size
250 mm
MAX Power
1100 Watt
RMS Power
550 Watt
Frequency Response
25 - 400 Hertz
Impedance
4+4 Ohm
Enclosure Type
Sealed Enclosure

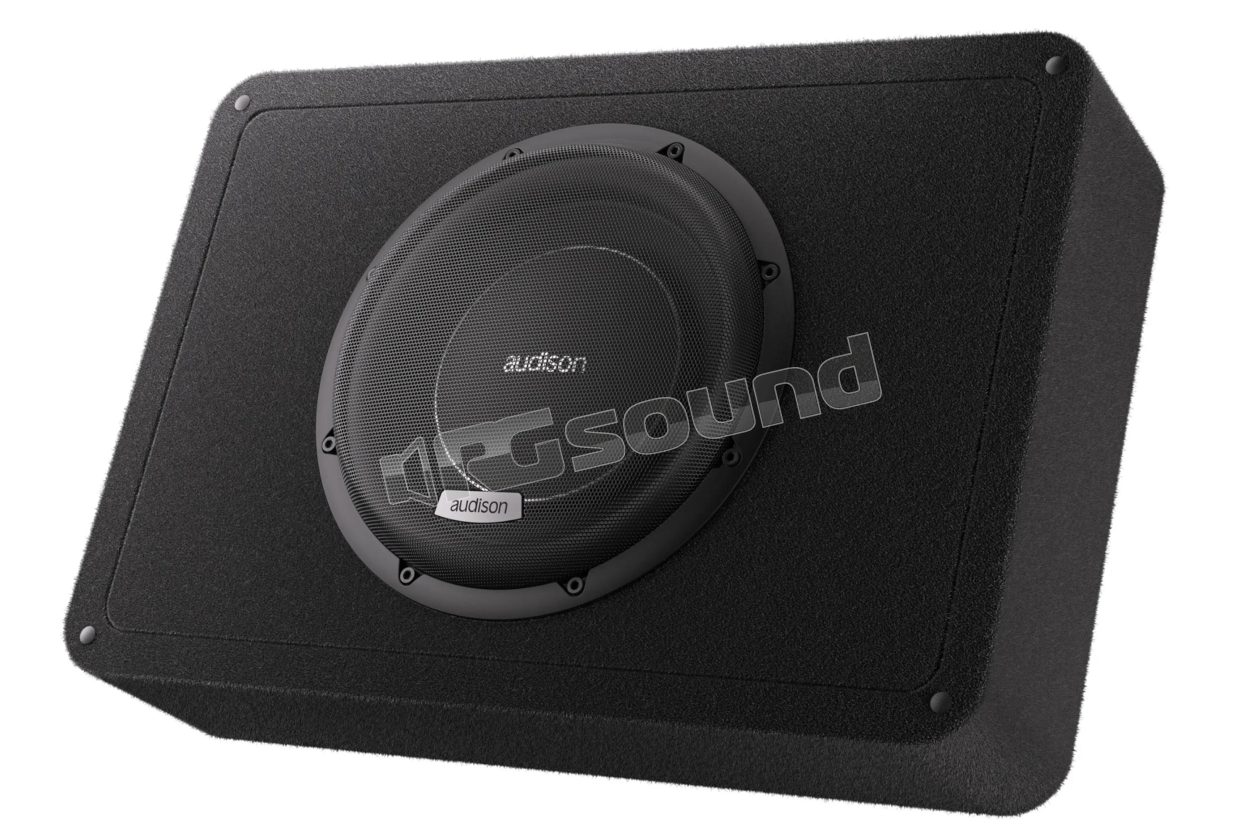

Audison AVBX 10 D4 II Subwoofer 25 cm in box with reduced depth VOCE II series

The AVBX 10 D4 II subwoofer from Audison's VOCE II series is the ideal solution for those who desire deep, controlled and dynamic bass even in the most confined spaces of the cabin. Thanks to its ultra-slim and sealed design, this 10″ (250 mm) subwoofer combines power, precision and installation versatility without compromise.



Specifically designed for high-quality automotive audio systems or OEM upgrades, the box is acoustically optimized for the AV 10 D4 II driver, with internal volume and damping calibrated to deliver sharp and articulate bass response even in space-limited conditions.


The high-density 15 mm MDF structure with internal reinforcements eliminates unwanted resonances, while the Sub Smart Plug (SSP) terminal ensures fast, safe and professional wiring. The dual-orientation 2S² architecture allows Down-Firing or Up-Firing installation based on the audio system's needs.



AVBX 10 D4 II Features

  • Ultra-slim sealed design for controlled bass and perfect integration even in confined car spaces.
  • Ideal integration with AV 10 D4 II subwoofer (dual 4Ω driver) for optimal power and response performance.
  • Sub Smart Plug (SSP) terminal: Plug-&-Play + traditional pressure connection.
  • Dual-orientation 2S² architecture for Down-Firing or Up-Firing installation.
  • 15 mm MDF construction with internal reinforcements for superior damping and zero unwanted colorations.
  • Minimalist and elegant VOCE II style, in line with other components in the range.
  • OEM compatibility for compromise-free upgrade even on standard installations.

Audison AVBX 10 D4 II Technical Specifications

  • Nominal diameter 250 mm
  • Impedance 4+4 Ohm
  • Maximum power 1100 W
  • Continuous power 550 W
  • Frequency response 25 - 400 Hz
  • Frame material ALUMINUM
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Voice coil material CCAW
  • Core material FIBERGLASS
  • Cone material POLYPROPYLENE WITH MICA INJECTION
  • Suspension material RUBBER
  • Xmax 16.8 mm
  • Xmech 20 mm
  • Voice coil winding height 37 mm
  • Gap height 7 mm
  • Driver displacement volume 0.6 l
€ 629,00 Price incl. VAT
