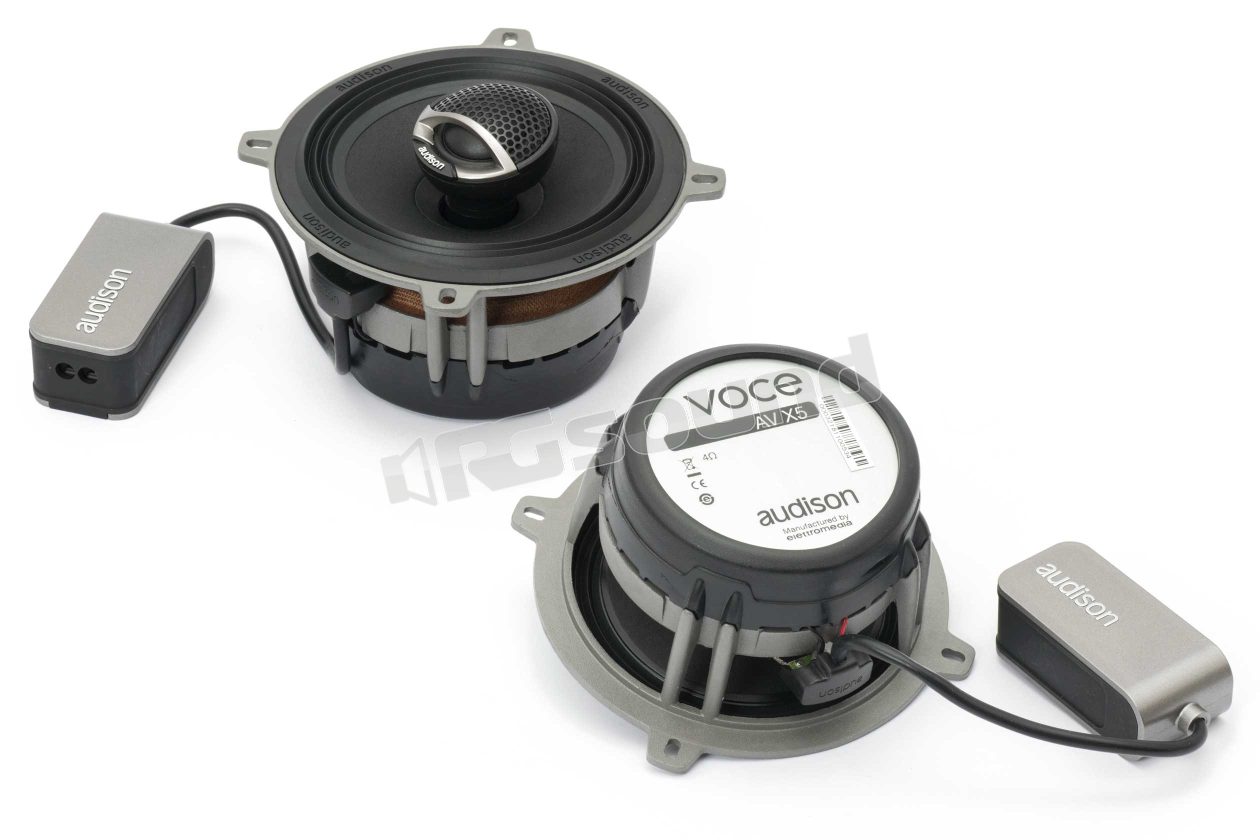

AV X5 130 mm 2-way coaxial speaker set

Audison

Discontinued

Your price:
€ 159,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way

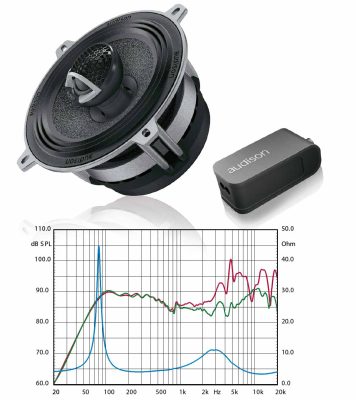

Frequency Response
60 - 22000 Hertz
MAX Power
150 Watt
RMS Power
75 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
fibra di cellulosa e cotone
Tweeter Material
Tetolon®

Audison AV X5 coaxial pair 130 mm Voce series

  • 1 The aerodynamic profile of the spokes and the "open-air" basket design ensure a drastic reduction of rear reflections from the cone.
  • 2 The exclusive "Triple Wave" profile of the butyl rubber surround offers maximum linear excursion and high reliability in extreme conditions.
  • 3 Voice coil in CCAW (Copper Clad Aluminium Wire) wound on double layer, extremely light and compact, for maximum efficiency and a dynamic and contrasting sound.
  • 4 Cone in cellulose and cotton fiber, with "Light Damping" damping treatment.
  • 5 The radial ventilation system ensures high thermal dissipation capacity, power holding and reliability.
  • 6 High Frequency Tuning: high frequency range dispersion under control, for best performance at the listening point.
  • 7 Neodymium tweeter with 25 mm dome in Tetolon®.
  • 8 Dedicated cable crossover, for best performance at crossing frequencies.

Technical features Audison coaxial speakers AV X5

Two-way coaxial speakers
Woofer dimensions 130 mm (5"1/4")
Tweeter dimensions 25 (1")
Maximum power 150 W
Nominal power 75 W
Impedance Ω 4
Frequency response 60 ÷ 22,000 Hz
Sensitivity dB/SPL 90
Crossover 3.5 kHz @ 6/12 dB/Oct.
Woofer magnet 90 x 32 x 15 mm
D x d x h (inch) (3" 9/16 x 1" 1/4 x 9/16")
Tweeter magnet 25 x 3.5 mm
Weight of each speaker 1.2 Kg (2.6 lb)
Voice Coil Ø 25 mm (1")

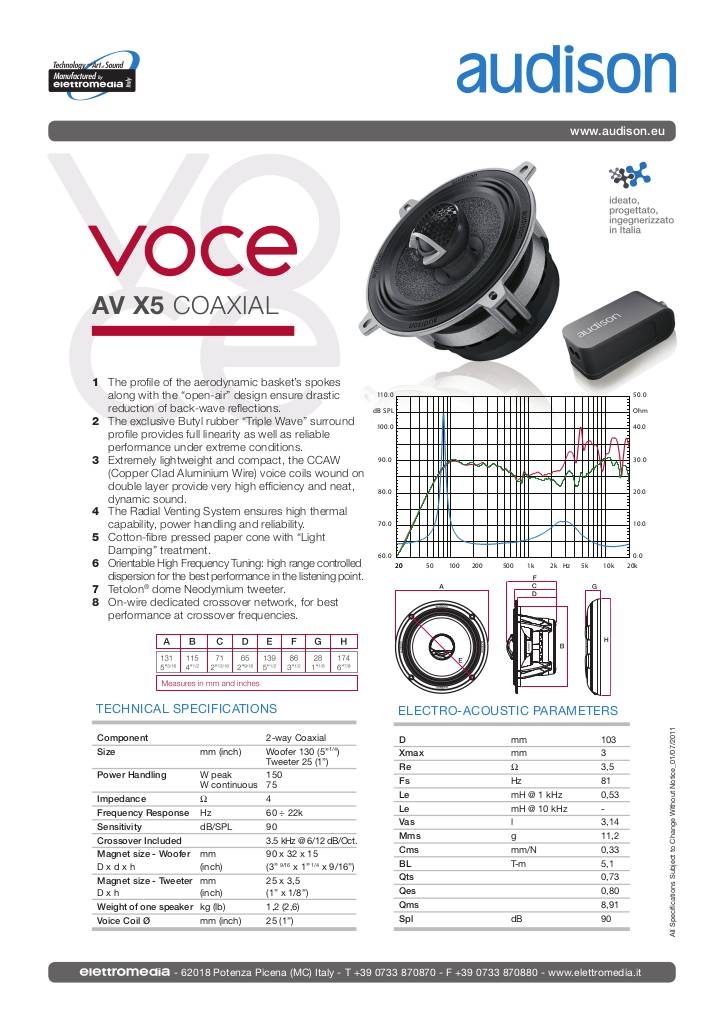

Scheda tecnica

n-20170518170041-av-x5-tech-sheet-tech-sheet.pdf
Discontinued
