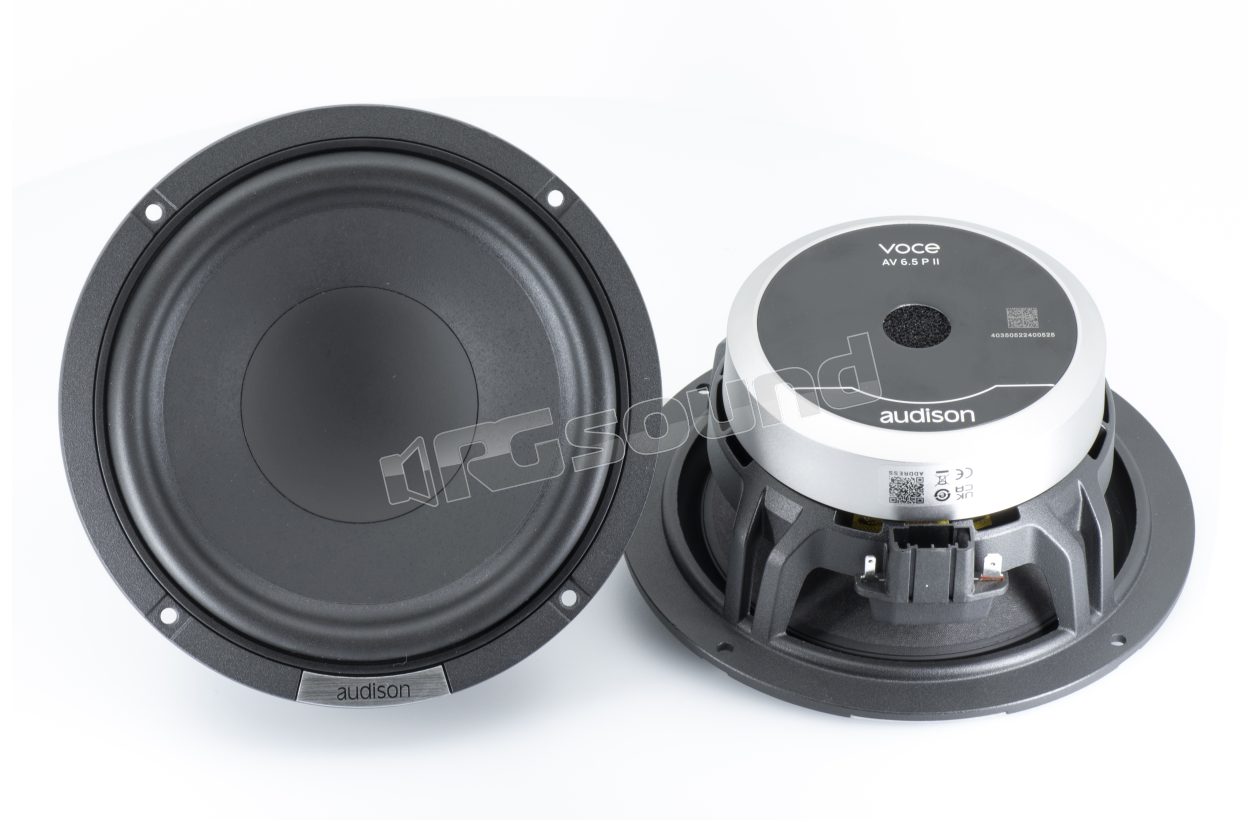

AV 6.5 P II Pair of 16.5cm Voce II series woofers

Audison
Your price:
€ 449,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
45 - 7500 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Weight
1,6 Kg
Installation Depth
69,8 mm
Woofer Material
Cellulosa trattata

Audison AV 6.5P II Pair of 165 mm woofers VOCE II series with a maximum power of 300 W, 4 Ohm impedance

The Audison VOCE II AV 6.5 P II woofer has been designed to deliver sound of exceptional clarity and precision. The woofer naturally disengages in off-axis positions, eliminating the need for a high-pass filter in most door installations and reducing phase shifts common to other filters. You can use a gentle 6 dB/Octave filter to enhance bass and mid-bass tones, further enriching sound quality. The woofer's OEM-style connector, compatible with FASTON terminals and designed for perfect integration, features a T-shaped pole with an aluminum ring to minimize distortion and improve frequency response.

Powerful motors for better performance

The AV 6.5 II delivers power and control without compromise in the reproduction of low and mid frequencies. Engineered to handle up to 150 W RMS, this woofer is perfect for those seeking extended frequency response with powerful, distortion-free dynamics.

Powerful magnetic motors, known for releasing large amounts of energy while maintaining exceptional thermal stability. The AV 6.5 P II motor features a T-shaped pole that incorporates an aluminum ring. This innovative addition minimizes distortion during high excursions and linearizes frequency response for superior clarity and precision. The geometry of the magnetic assembly has been optimized using FEM (Finite Element Method) simulation software, which allows the magnetic field to be concentrated in the voice coil, improving efficiency and precision of sound response. This allows the drivers to deliver dynamic, distortion-free sound, even with complex and rapid musical variations.

Audison AV 6.5P II Technical specifications

  • Nominal diameter 165 mm (6.5")
  • Impedance 4 Ohm
  • Minimum impedance 3.1 Ohm
  • Power handling - Peak 300 W
  • Power handling - continuous 150 W
  • Sensitivity 91 dB SPL measured at 2.83 V/1m
  • Frequency response 45 - 7500 Hz (-6dB)
  • Voice coil Ø 40 mm (1.6 inches)
  • Frame material ALUMINUM
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Magnet dimensions D x d x h 100 x 45 x 18 (3.9 x 1.8 x 0.7) mm (in.)
  • Voice coil material CCAW
  • Adapter material FIBERGLASS
  • Cone material SEMI-PRESSED PAPER
  • Surround material RUBBER
  • Xmax 4.95 mm (0.19 inches)
  • Xmech 7.5 mm (0.3 inches)
  • Voice coil winding height 13 mm (0.51")
  • Slot height 6 mm (0.24 in)

Electrical-acoustic specifications

  • Re 2.9 Ohm
  • Fs 66 Hz
  • Le 0.3 mH
  • Vas 9.09 l (0.321 ft)
  • Mms 15.3 g (0.54 oz)
  • Cms 0.38 mm/N
  • BL 5.5 T-m
  • Qts 0.57
  • Qes 0.61
  • Qms 9.06
