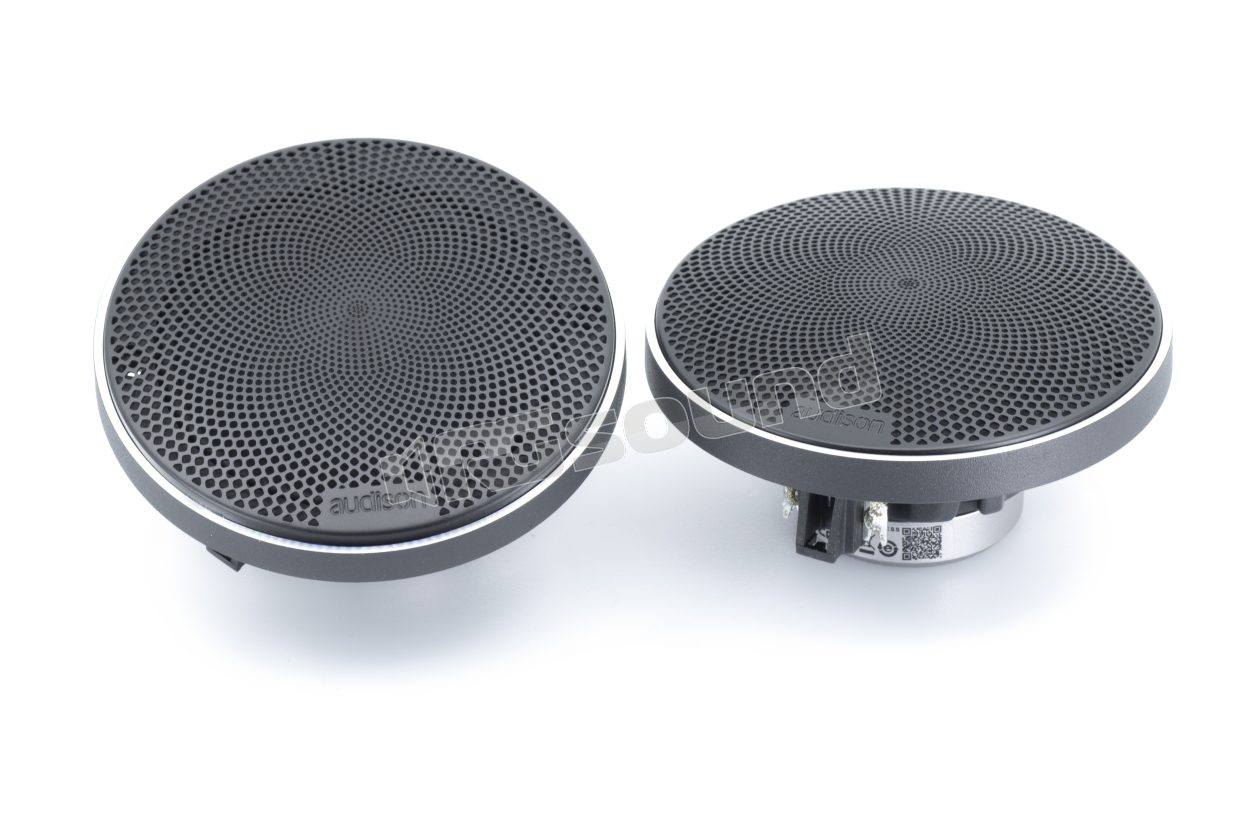

AV 3.0 II 70mm Voce II series midrange

Audison
Your price:
€ 649,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
70 mm
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
160 - 13000 Hertz
Sensitivity
90 dB
Impedance
3 Ohm
Weight
0,15 Kg
Installation Depth
31 mm
Midrange Cone Material
Carta trattata

Audison AV 3.0 II midrange 70mm Voce II series with maximum power of 100 Watt, impedance 4 ohm

The Audison VOCE II AV 3.0 II midrange speaker has been carefully engineered to deliver exceptional clarity and richness of detail in the crucial midrange frequency band. Equipped with a special cone made of paper compressed with cotton fibers, the AV 3.0 II offers an ideal balance between rigidity and responsiveness, enhancing sound reproduction for today's car audio enthusiasts. This midrange unit integrates perfectly into any system thanks to its compact design and is equipped with OEM-type connectors, ensuring simple and versatile installation options.

Elegant black mesh metal grille included

Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect integration into the cabin. Includes two adhesive badges with Audison logo, which are supplied as standard, allowing customized positioning to enhance branding and aesthetics.

Powerful motors for improved performance

Equipped with powerful magnetic motors, known for releasing large amounts of energy while maintaining exceptional thermal stability. The motor features a T-shaped pole that incorporates an aluminum ring. This innovative addition minimizes distortion during high excursions and linearizes the frequency response for superior clarity and precision.

The geometry of the magnetic assembly has been optimized using FEM (Finite Element Method) simulation software, allowing the magnetic field to be concentrated in the voice coil, improving efficiency and precision of the sound response. This allows the drivers to deliver dynamic and distortion-free sound, even with complex and rapid musical variations.

A completely new motor arrangement reduces mounting depth by nearly 20% without reducing power handling, excursion or bass response. One way to achieve this result is the use of a voice coil with a diameter 30% larger. Another advantage was achieved through the use of a superior quality neodymium magnet, which offers greater magnetic force in a smaller package compared to the past.

OEM and Faston connectors for perfect integration

The AV 3.0 II offers two connection options, ensuring flexibility and versatility. The woofer and coaxial are equipped with both an OEM-type automotive connector and traditional Faston connectors. This option allows the installer to choose the connection method best suited to the needs of the specific project. The availability of both connections simplifies and streamlines the installation process. Thanks to this feature, installers can work more efficiently and without constraints, ensuring optimal results in both terms of sound performance and vehicle integration.

Audison

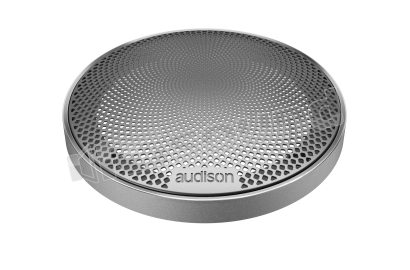

AVG 3.0 S II Pair of 80mm grilles with silver finish for AV 3.0 II Audison
Audison AVG 3.0 S II Pair of 80mm grilles with silver finish for AV 3.0 II
Price incl. VAT
€ 149,00

Audison AV 3.0 II Technical specifications

  • Nominal diameter 70 mm
  • Minimum impedance 3.2 Ohm
  • Power handling - Peak 100 W
  • Power handling - Continuous 50 W
  • Sensitivity 90 dB SPL measured at 2.83 V/1m
  • Frequency response 160 ÷ 13000 Hz (-6dB)
  • Voice coil Ø 26 mm
  • Frame material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions D x d x h 24.9-6 mm (in.)
  • Voice coil material CCAW
  • Adapter material FIBERGLASS
  • Cone material SEMI-PRESSED PAPER
  • Surround material RUBBER
  • Xmax 1.4 mm (0.06 inches)
  • Xmech 3.2 mm (0.13 inches)
  • Voice coil winding height 5.3 mm (0.21")
  • Gap height 4.5 mm (0.18 inches)

Electrical-acoustic specifications

  • Re 2.9 Ohm
  • Fs 150 Hz
  • Le 0.1 mH
  • Vas 0.61 l (0.022 ft)
  • Mms 2.9 g (0.102 oz)
  • Cms 0.39 mm/N
  • BL 3.5 T-m
  • Qts 0.58
  • Qes 0.65
  • Qms 5.45
  • Flux density 0.78
