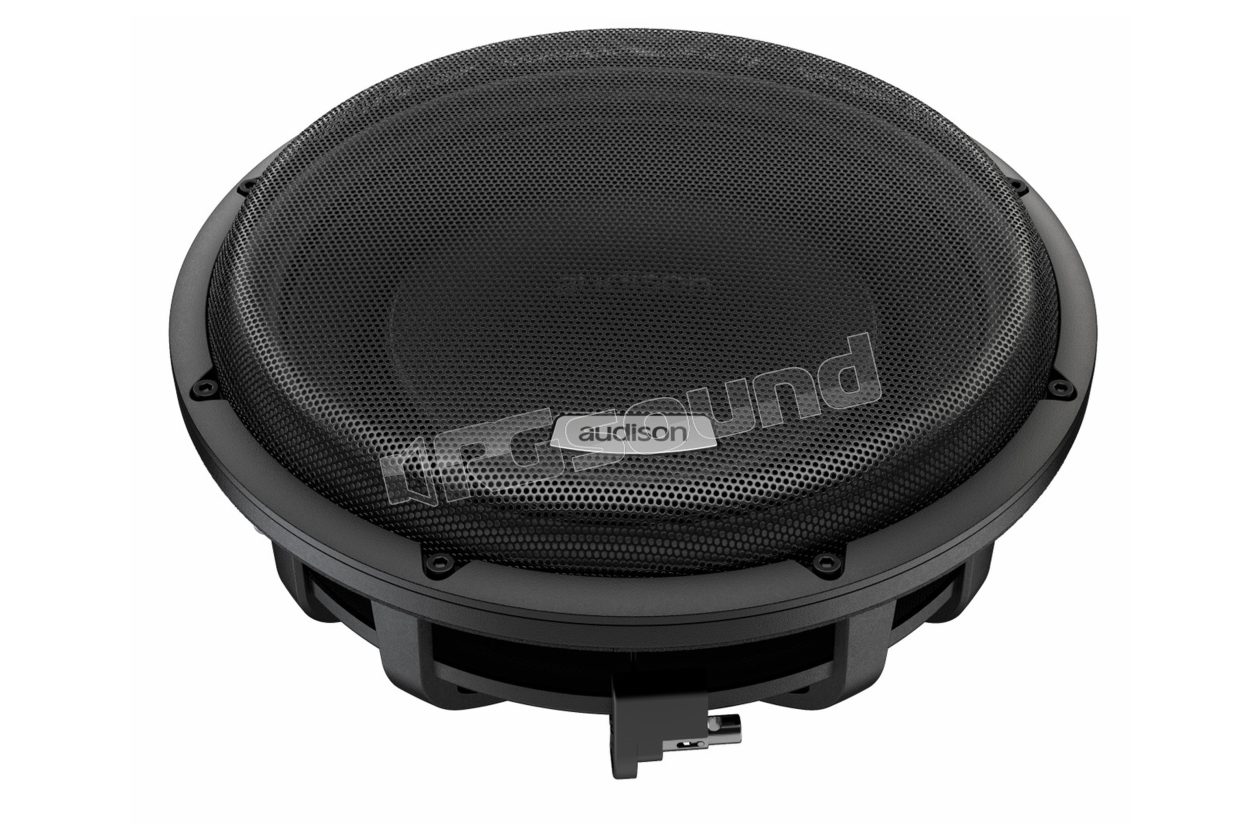

AV 12 D2 II 30cm reduced-depth subwoofer in enclosure, VOCE II series

Audison
Your price:
€ 549,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1100 Watt
RMS Power
550 Watt
Frequency Response
25 - 400 Hertz
Sensitivity
85 dB
Impedance
2 + 2 Ohm
Weight
6,6 Kg
Installation Depth
102 mm
Woofer Material
Polipropilene

Audison AV 12 D2 II Slim Subwoofer Voce II Series 300mm, Dual 2 Ohm Voice Coil, Grille Included

The AV 12 D2 II brings the distinctive VOCE II sonic signature to the deepest frequencies, combining high power with absolute control and musicality. Designed for sealed enclosures, it delivers precise and distortion-free bass even in compact spaces, making it an ideal choice for high-performance automotive installations.

At its core is a dual 2 ohm voice coil architecture that ensures exceptional flexibility in wiring configurations. The 1.5-inch voice coil in copper-coated aluminum wire, paired with a magnetically optimized group via FEM, ensures efficient energy transfer and superior thermal management during extended listening sessions.

The subwoofer features an extended-profile dust cap and Radial Reinforcement Framework (R.R.F.) to improve cone stability and minimize deformations during high excursions. The robust die-cast aluminum frame integrates cable routing loops for intelligent cable management, while spring terminals allow secure connections with high-current 8 AWG cables.

Whether used in single subwoofer configurations or with multiple drivers, the AV 12 D2 II delivers precise, controlled and deeply engaging low-frequency performance—true to Audison's philosophy of combining acoustic excellence with refined Italian design.

Audison AV 12 D2 II Technical Specifications

  • Nominal diameter 300 mm (12 inches)
  • Impedance 2+2 Ohm
  • Maximum power 1100 W
  • Continuous power 550 W
  • Sensitivity 85 dB
  • Frequency response 25 - 400 Hz
  • Voice coil Ø 38.6 mm (1.5 inches)
  • Frame material ALUMINUM
  • Magnet material HIGH FLUX DENSITY FERRITE
  • Magnet dimensions D x d x h 156*60*34 mm (inches)
  • Voice coil material CCAW
  • Support material FIBERGLASS
  • Cone material POLYPROPYLENE
  • Weight 6.6 kg

Electroacoustic Specifications:

  • Xmax 16.8 mm (0.66 inches)
  • Xmech 20 mm (0.79 inches)
  • Voice coil winding height 37 mm (1.46 inches)
  • Gap height 7 mm (0.28 inches)
  • Driver displacement volume 0.9 l (0.032 cubic feet)
  • Recommended enclosure 27.1 l (0.957 cubic feet)
  • Recommended tuning 26.5 Hz
  • Electroacoustic specifications
  • D 539 cm² (83.545 square inches)
  • Re 3.3 Ohm
  • Fs 23 Hz
  • Le 4.3 mH
  • Vas 63 l (2.225 cubic feet)
  • Mms 326 g (11.499 oz)
  • Cms 0.15 mm/N
  • BL 17.4 T•m
  • Qts 0.5
  • Qes 0.5
  • Qms 6.7
  • Reference efficiency 85 dB
€ 549,00 Price incl. VAT
