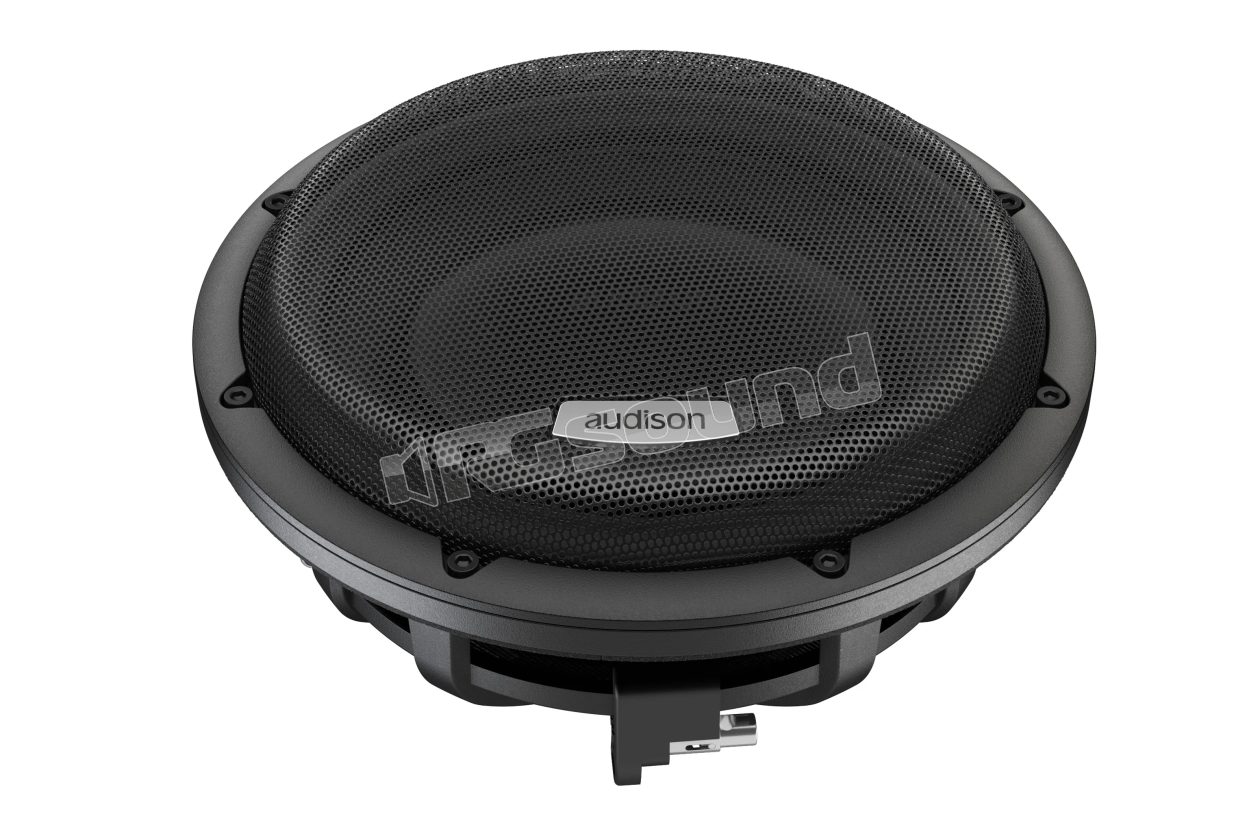

AV 10 D4 II 25cm 4+4 Ohm subwoofer, VOCE II series, with protective grille

Audison
Your price:
€ 499,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
1100 Watt
RMS Power
550 Watt
Frequency Response
25 - 400 Hertz
Sensitivity
83,5 dB
Impedance
4 + 4 Ohm
Weight
5 Kg
Installation Depth
97 mm
Woofer Material
Polipropilene

Audison AV 10 D4 II Slim subwoofer Voce II series 250mm, dual 4 Ohm voice coil, grille included

Compact dimensions, uncompromised performance. The AV 10 D4 II is the 10-inch subwoofer from the VOCE II line, designed to deliver fast, powerful and finely controlled bass in reduced volumes.

Its dual 4 ohm mobile voice coil configuration offers maximum installation versatility, while the 1.5-inch CCAW mobile voice coil and optimized FEM magnetic structure guarantee precise response and excellent thermal stability, even during demanding playback.

Despite its compact dimensions, the AV 10 D4 II features the same advanced technologies as its 12-inch counterpart: the Radial Reinforcement Framework for superior mechanical resistance, an extended profile dust cap for improved damping and the proprietary Airflow Venting Cooling system for continuous heat dissipation.

Optimized to perform best in compact sealed enclosures (12-14 L / 0.4-0.5 ft³), it offers deep and controlled bass response even in space-limited configurations, making it the ideal choice for refined systems where detail and dynamics must coexist in perfect balance.

Every element reflects the VOCE II philosophy: precision engineering, characteristic low frequency response and distinctive Italian design.

Audison AV 10 D4 II technical specifications

  • Nominal diameter 250 mm (10 inches)
  • Impedance 4+4 Ohm
  • Maximum power 1100 W
  • Continuous power 550 W
  • Sensitivity 83.5 dB
  • Frequency response 25 - 400 Hz
  • Mobile voice coil Ø 38.6 mm (1.5 inches)
  • Frame material ALUMINUM
  • Magnet material HIGH FLUX DENSITY FERRITE
  • Magnet dimensions D x d x h 134*55*36 mm (inches)
  • Mobile voice coil material CCAW
  • Support material FIBERGLASS
  • Cone material POLYPROPYLENE
  • Edge material
  • Xmax 16.8 mm (0.66 inches)
  • Xmech 20 mm (0.79 inches)
  • Mobile voice coil winding height 37 mm (1.46 inches)
  • Gap height 7 mm (0.28 inches)

Electroacoustic specifications

  • D 368 cm² (57.04 square inches)
  • Re 1.82 Ohm
  • Fs 36 Hz
  • Le 1.8 mH
  • Vas 14.8 l (0.523 feet)
  • Mms 250 g (8.819 oz)
  • Cms 0.08 mm/N
  • BL 11.2 T•m
  • Qts 0.72
  • Qes 0.823
  • Qms 5.62
  • Reference efficiency 83.5
