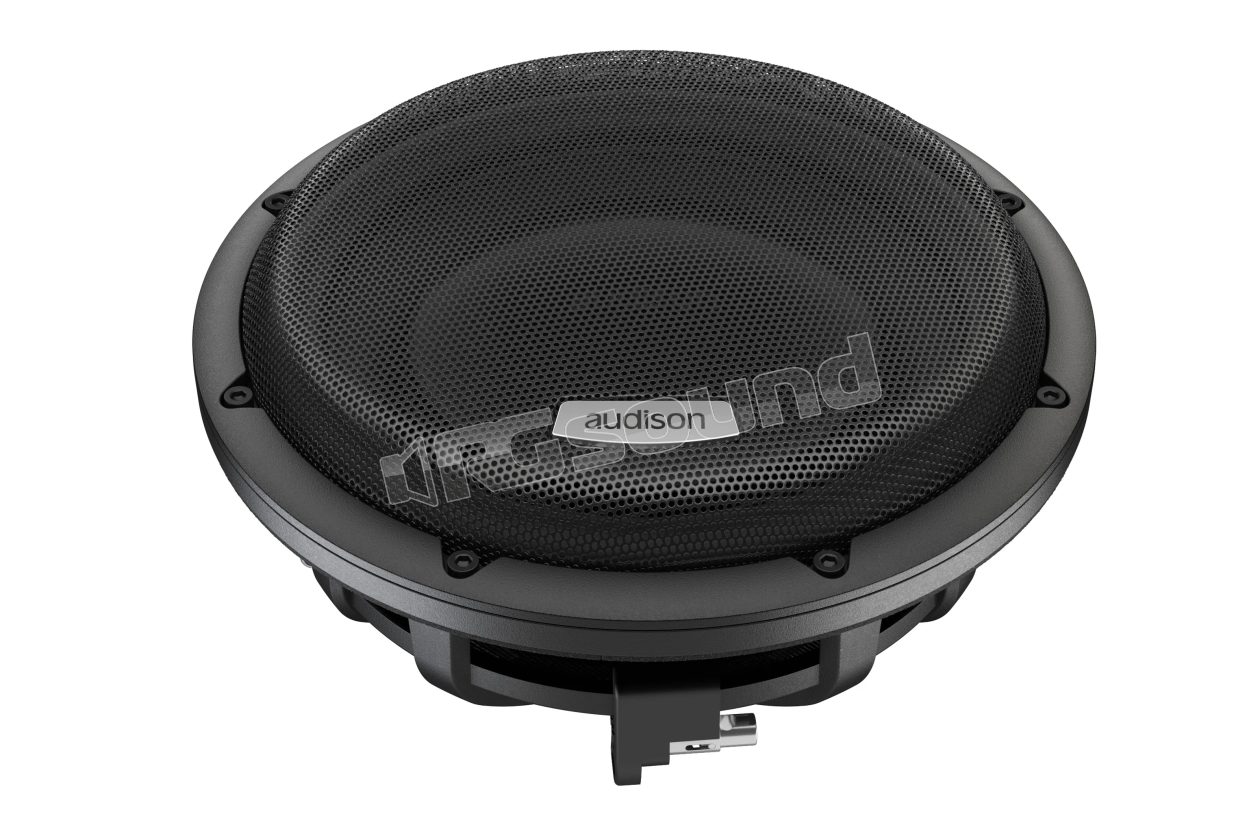

AV 10 D2 II 25cm 2+2 Ohm subwoofer, VOCE II series, with protective grille

Audison
Your price:
€ 499,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1100 Watt
RMS Power
550 Watt
Frequency Response
25 - 400 Hertz
Sensitivity
83,5 dB
Impedance
2 + 2 Ohm
Weight
5 Kg
Installation Depth
97 mm
Woofer Material
Polipropilene

Audison AV 10 D2 II Slim subwoofer VOCE II series 250mm, dual voice coil 2 Ohm, grille included

Designed for tight spaces and dynamic performance, the AV 10 D2 II delivers powerful and articulate bass frequencies with the precision and control that distinguish the VOCE II line.

Its dual mobile voice coil configuration of 2 ohm offers greater flexibility for designing low impedance systems, enabling optimal power transfer from high-performance amplifiers. The subwoofer is equipped with a 1.5 inch CCAW voice coil, a motor group optimized via FEM and a die-cast aluminum basket with integrated cable passage hooks: every detail has been designed to ensure stability, thermal efficiency and long-term reliability.

The extended profile dust cap improves cone rigidity and damping, while the internal radial reinforcement structure strengthens the mechanical structure during high excursion operation. The Airflow Venting Cooling technology guarantees effective heat dissipation, preserving performance even under prolonged stress.

Optimized to perform best in compact sealed enclosures (12-14 L / 0.4-0.5 ft³), the AV 10 D2 II delivers deep, clean and fast bass, ideal for systems where space is limited but sound expectations are high.

It's more than a compact subwoofer, it's a VOCE II class component built to bring the emotion of music into every detail of your audio system.

Audison AV 10 D2 II technical specifications

  • Nominal diameter 250 mm (10 inches)
  • Impedance 2+2 Ohm
  • Maximum power 1100 W
  • Continuous power 550 W
  • Sensitivity 83.5 dB
  • Frequency response 25 - 400 Hz
  • Voice coil Ø 38.6 mm (1.5 inches)
  • Basket material ALUMINUM
  • Magnet material HIGH FLUX DENSITY FERRITE
  • Magnet dimensions D x d x h 134*57*36 mm (inches)
  • Voice coil material CCAW
  • Support material FIBERGLASS
  • Cone material POLYPROPYLENE
  • Edge material
  • Xmax 16.8 mm (0.66 inches)
  • Xmech 20 mm (0.79 inches)
  • Voice coil winding height 37 mm (1.46 inches)
  • Gap height 7 mm (0.28 inches)
  • Suggested enclosure 13.2 l (0.466 cubic feet)
  • Suggested tuning 51 Hz
  • Note The data listed below are specified with voice coils connected in series (2+2).

Electroacoustic specifications

  • D 368 cm² (57.04 square inches)
  • Re 3.25 Ohm
  • Fs 35 Hz
  • Le 4.1 mH
  • Vas 15.16 l (0.535 cubic feet)
  • Mms 264 g (9.312 oz)
  • Cms 0.079 mm/N
  • BL 16.2 T•m
  • Qts 0.63
  • Qes 0.7
  • Qms 5.5
  • Reference efficiency 83.5
  • General information
  • Weight 5 kg
