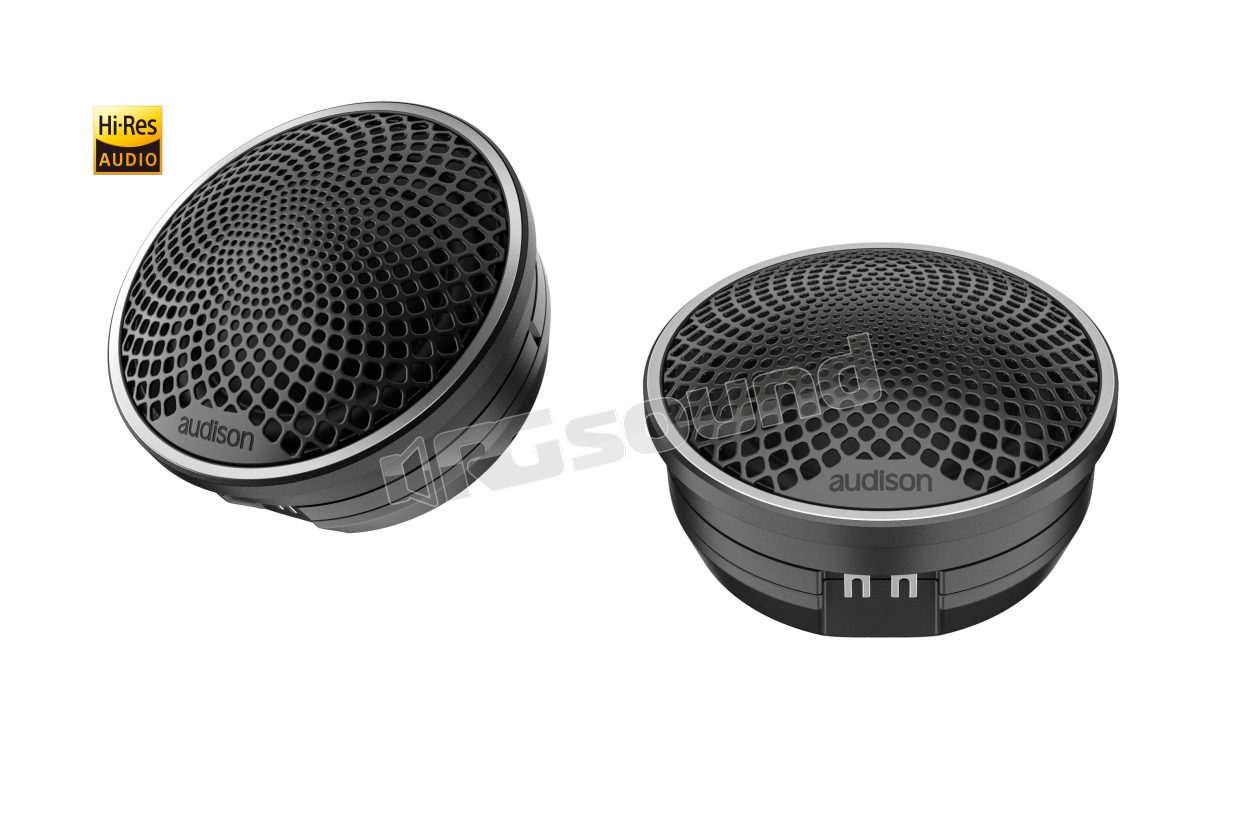

AV 1.1 II Pair of 28mm tweeters, Voce II series

Audison
Your price:
€ 399,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
MAX Power
180 Watt
Frequency Response
1000 - 40000 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Outer Diameter
48 mm
Installation Depth
16 mm
Tweeter Material
Tetolon

Audison AV 1.1 II Pair of tweeters Voce II series with 180 Watt peak power, 4 Ohm impedance

The Audison Voce AV 1.1 II tweeter demonstrates its engineering ability by obtaining Hi-Res Audio certification, a remarkable achievement for a tweeter with a soft Tetolon dome. Tetolon was chosen specifically for its superb sound timbre, which allows the tweeter to extend its frequency response to 40 kHz. This design offers unparalleled clarity and depth in high-frequency sound reproduction.

Equipped with AIF (Any Install Faceplate) technology, the AV 1.1 II offers flexible installation options with various faceplates and accessories, ensuring perfect integration in any vehicle environment. This careful mix of advanced materials and installation versatility underscores the appeal of the tweeter to today's car audio enthusiasts who demand the best performance.

High-resolution audio

The Audison AV 1.1 II tweeter was developed with a no-compromise approach, with the goal of achieving maximum performance in high-frequency reproduction. Every detail, from the materials used to the geometry of the magnetic group, was carefully studied to achieve exceptional acoustic performance, ensuring detailed and accurate sound reproduction even in the most difficult listening conditions.

Beyond sound quality, the tweeters in the VOCE II line feature distinctive design elements, including an elegant mesh grille and a textured ray grille with customized texture for a refined and modern look. Additionally, each component includes a complete set of accessories, which facilitates the installation process and ensures a perfect fit to any vehicle.

Obtaining Hi-Res Audio certification with a soft dome tweeter has been a real challenge. Many tweeters obtain certification using rigid dome materials, which make it easier to achieve the required high-frequency performance.

The AV 1.1 II uses a larger chamber, which improves impedance and damping characteristics and provides a resonance frequency of 900 Hz. This allows for an even lower crossover frequency "transition" to the AV 6.5 P II woofer. Installed in the car door, the midwoofer struggles to reach the upper midrange and most tweeters fail to sound low enough to bridge the gap. The AV 1.1 II sounds more than an octave lower than other tweeters in its category!

AIF Technology

AIF (Any Install Faceplate) technology ensures extraordinary flexibility for OEM integration, offering two different types of faceplates to fit any installation scenario:

  1. OEM: ideal for positioning in pre-installation.
  2. Mesh grille: designed for the best compromise between protection and performance, ideal for pillar installations.
  3. Ray grille: optimized to achieve maximum acoustic performance, perfect for pillar installations

Audison AV 1.1 II Technical specifications

  • Nominal diameter 28 mm (1.1")
  • External diameter 48 mm
  • Depth 16 mm
  • Impedance 4 Ohm
  • Minimum impedance 3.9 Ohm
  • Power handling - Peak 180 W
  • High-Pass filter at 1.8 kHz - 12 dB oct.
  • Power handling - continuous 10 W
  • Sensitivity 91 dB
  • SPL measured at 2.83 V/1m
  • Frequency response 1000 - 40000 Hz Hz
  • HiRes Audio JAS compliant, test conditions IEC 60268-5
  • Voice coil Ø 28 mm (1.1")
  • Magnet material NEODYMIUM
  • Voice coil material CCAW
  • Dome material TETOLON FIBER
  • Adapter material ALUMINUM
  • Diaphragm edge material TETOLON FIBER

Electrical-acoustic specifications

  • Re 3.2 Ohm
  • Fs 900 Hz
  • Le 0.02 mH
  • Mms 0.38 g
  • Cms 0.088 mm/N
  • BL 2.15 T•m
  • Qts 1.1
  • Qes 1.5
  • Qms 4.4
