ASS 3 110mm Midrange Speakers with Grille

Audio System Italy
Your price:
€ 399,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
RMS Power
70 Watt
Frequency Response
100 - 12000 Hertz
Sensitivity
86 dB
Impedance
4 Ohm
Midrange Cone Material
Fibra di carbonio

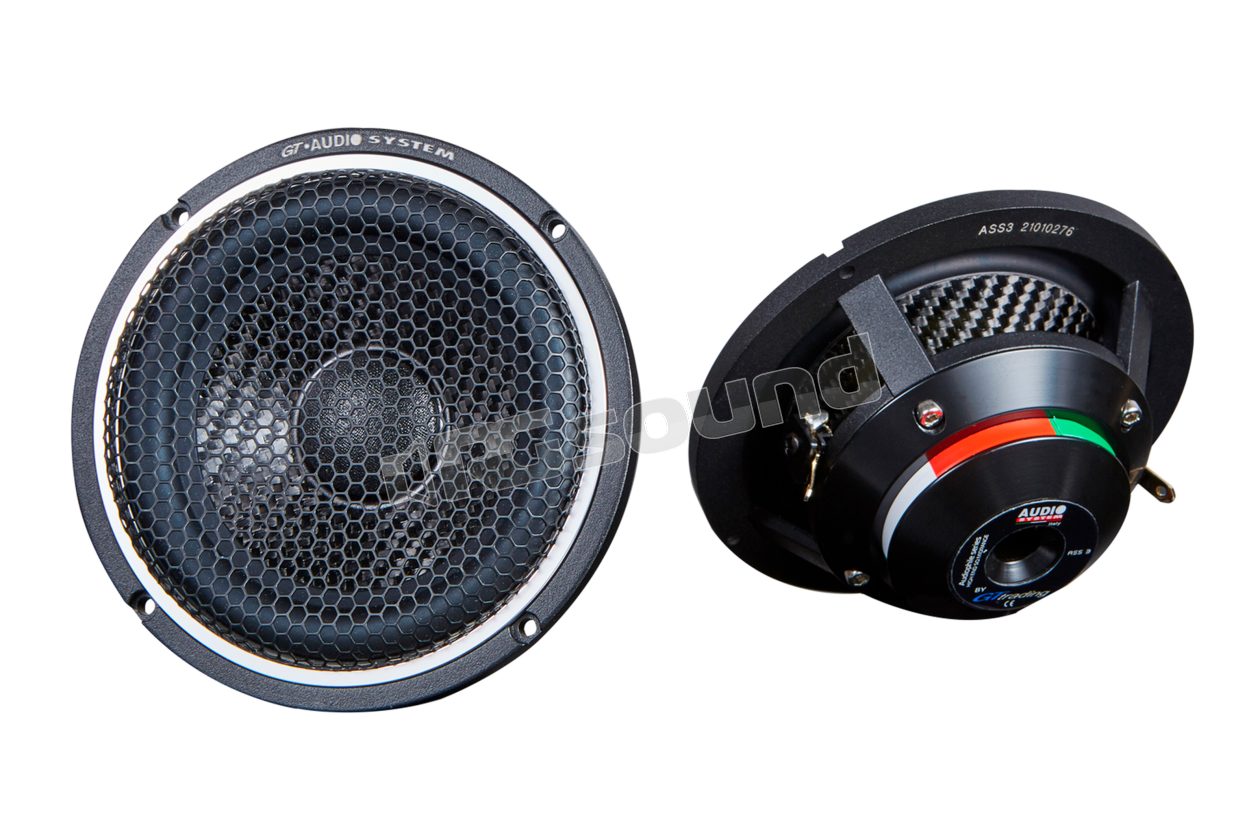

Audio System Italy ASS 3 110mm Midrange Speakers with Grille

The basket is milled from a solid aluminum block, this allows it to have no resonances, thanks to its design studied exclusively to be first class, to not fall short in anything, and tested with the best simulators, and its extremely high mass.

Thanks to its extremely low resonance frequency it captivates the listener with its sound quality, the precision of the timbre and the impulse response.

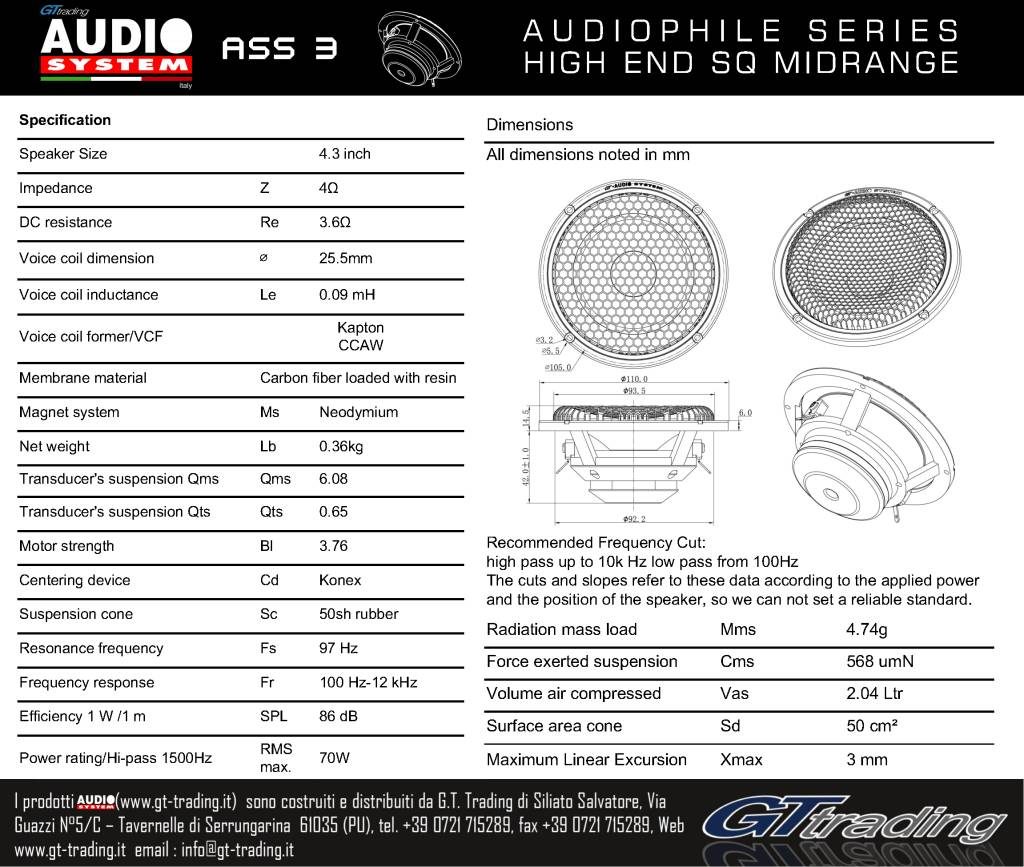

Scheda Tecnica

n-20240703095520-ass3.pdf

Audio System Italy ASS 3 Technical Specifications

  • Specifications Speaker Size 4.3 inches
  • Impedance 40 Ω
  • DC Resistance Re 3.6Ω
  • Voice Coil Size ø 25.5 mm
  • Voice Coil Inductance Le 0.09 mH
  • Voice Coil Shaper/VCF Kapton CCAW
  • Diaphragm Material Carbon Fiber Loaded with Resin
  • Magnetic System Ms Neodymium
  • Net Weight Lb 0.36 kg
  • Transducer Suspension Qms 6.08
  • Transducer Suspension Qts 0.65
  • Motor Force BI 3.76
  • Centering Device Cd Konex
  • Suspension Cone Sc 50sh Rubber
  • Resonance Frequency FS 97 Hz
  • Frequency Response Fr 100 Hz-12 kHz
  • Efficiency 1 W/1 m SPL 86 dB
  • Rated Power/Hi-pass 1500Hz RMS 70W
€ 399,00 Price incl. VAT
