ASE 165 S 16.5cm 2-way Auditor series kit with reduced mounting depth

Focal

Discontinued

Your price:
€ 109,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
60 - 21.000 Hertz
Woofer Size
165 mm
MAX Power
110 Watt
RMS Power
55 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Cono in polipropilene
Tweeter Material
Mylar

Focal ASE-165 S 2-way speaker system 16.5 cm with reduced depth

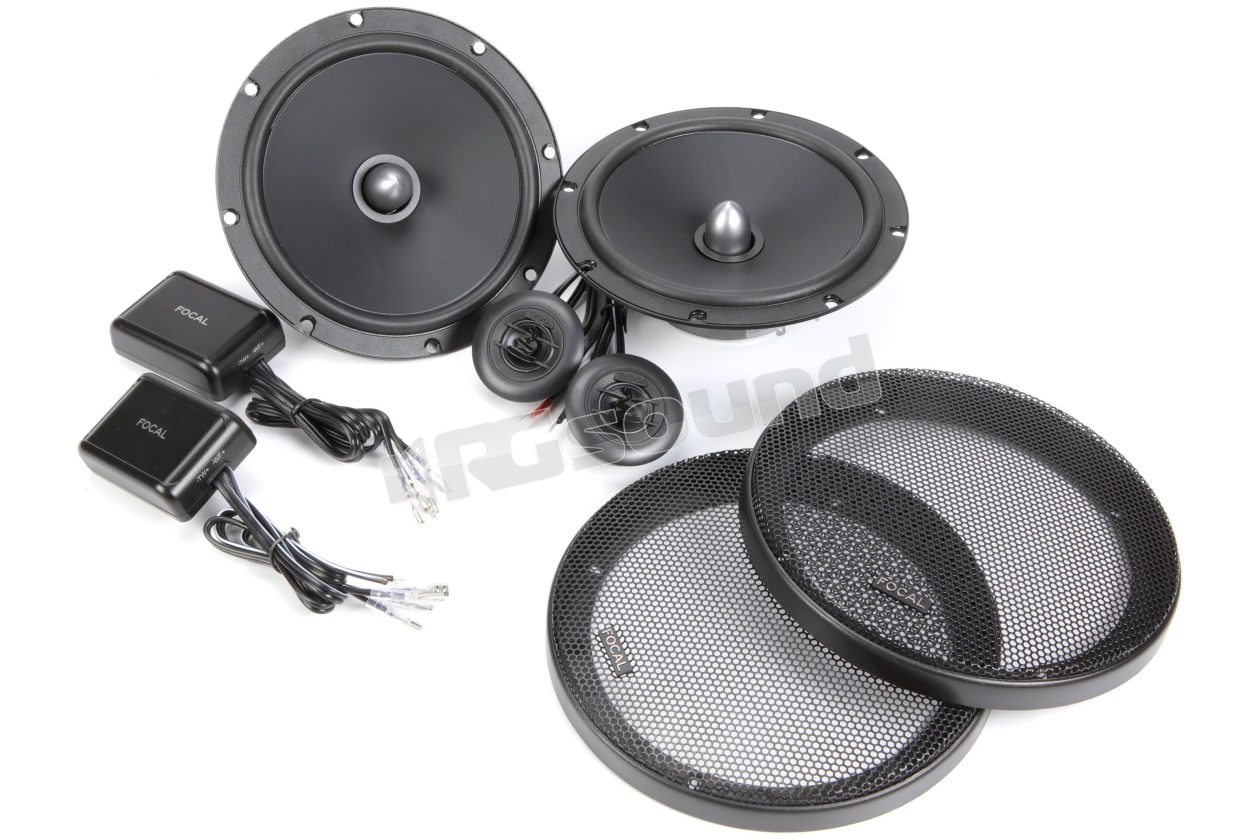

The 2-way ASE 165 S component kit delivers neutral and dynamic sound, precise highs and an improved soundstage thanks to its 6 1/2" (16.5 cm) woofer with polypropylene cone and adjustable inverted mylar dome tweeter. It has the added advantage of being shallow - only 1 7/8" (4.8 cm) deep making installation easier and helping it disappear into the doors. Offering numerous installation options, the ASE 165 S can be connected to other electronic components or hooked directly to the vehicle's original amplifier.

The tweeters can be mounted directly on the front pillars or positioned in the vehicle's original locations. The woofers can be surface mounted (grille provided) or installed in the vehicle's original locations. The inverted dome tweeters are supplied with brackets for surface mounting or "flush" mounting. The tweeter can also be removed from its flush mount bracket if you wish to install it in the original tweeter location.

Scheda tecnica

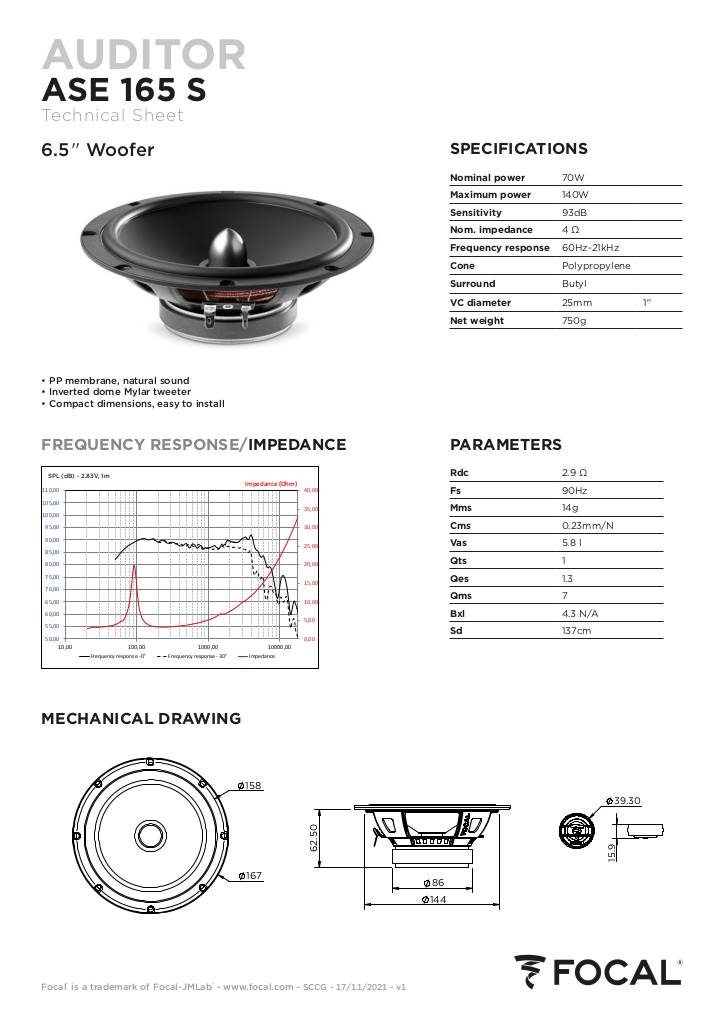

n-20220624160617-technical-sheet-ase-165-s.pdf

Focal ASE-165 S Technical specifications

  • Type: shallow 2-way component kit
  • Woofer: 165 mm
  • Depth: 48.5 mm
  • Cone: polypropylene
  • Maximum power: 110 W
  • Nominal power: 55 W RMS
  • Sensitivity (2.83 V/1 m): 91 dB
  • Frequency response: 60 Hz - 21 kHz
  • Impedance: 4 Ω
  • Voice coil diameter: 25 mm
  • Magnet: ferrite
  • Suspension: butyl
  • Tweeter: inverted dome tweeter
  • Crossover: crossover box
Discontinued
