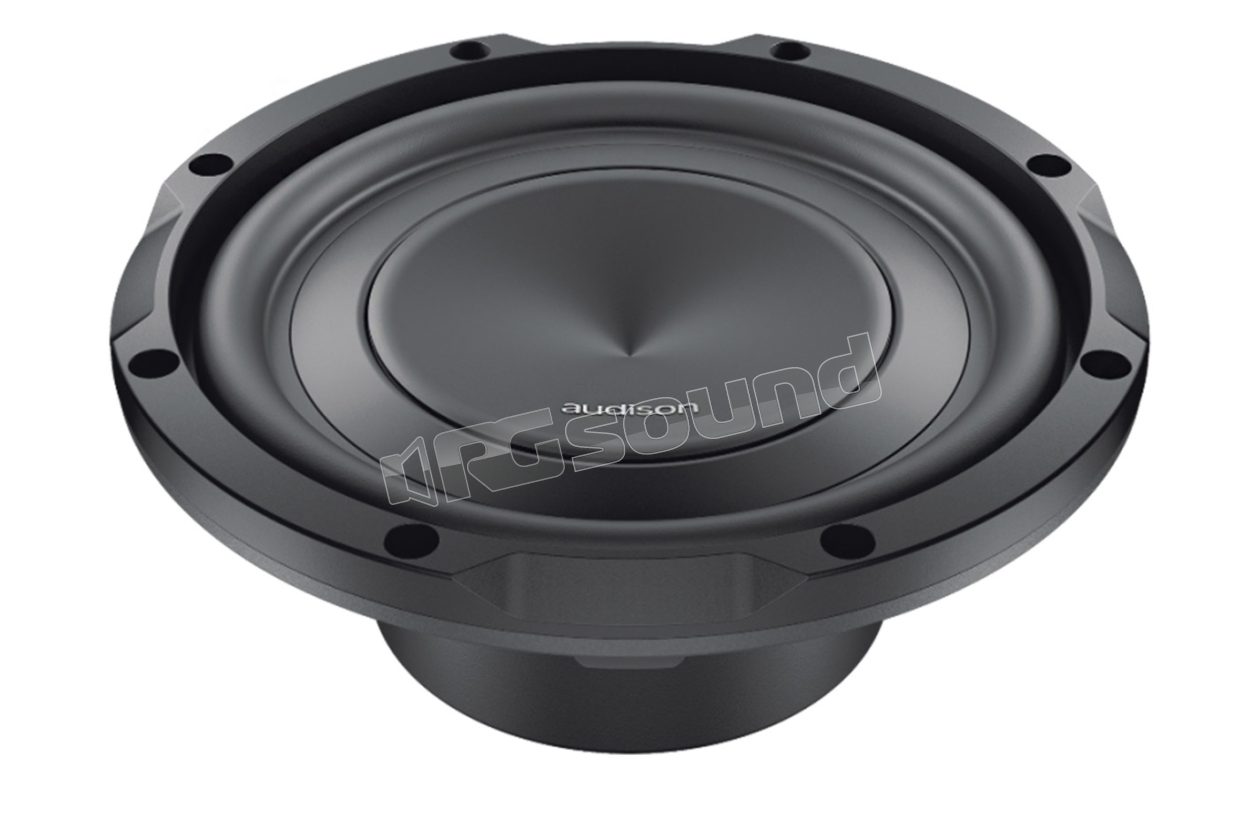

APS 8 R 20cm slim subwoofer, single voice coil

Audison
Your price:
€ 149,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Sensitivity
84 dB
Impedance
4 Ohm
Weight
3 Kg
Installation Depth
79 mm
Woofer Material
Cellulosa trattata

Audison APS 8 R Slim 20cm Single Coil Subwoofer

With the objective of providing high acoustic output even when used with lower power, the APS 8 R was designed to be used in an 8.5 liter reflex enclosure, with tuning between 30 and 40Hz. The APS 8 R was specifically developed to be paired with the AP8.9 bit or AP4.9 bit / AP4 D. The components of Prima subwoofers were developed with a primary objective: to provide high output in restricted spaces. Output is a matter of excursion: the greater the amount of air displaced by the cone, the greater the output.

However, reduced mounting depth has traditionally meant low excursion. Prima subwoofers employ a special cone-cover-dust-basket geometry that ensures wide excursion of the moving assembly while keeping mounting depth to a minimum. The surround and spider have been carefully designed to avoid the rocking-mode phenomenon. The cooling circuit was designed with air inlets on the basket under the spider, eliminating the need for air inlets on the bottom plate. This allows the subwoofer to be mounted close to the rear wall of the enclosure, maximizing the reduced mounting depth.

FeaturesAPS 8 R

  • Ultra-low profile (3.11 in / 79 mm) for maximum installation flexibility.
  • Designed to deliver best performance in a reflex enclosure starting from 8.5 liters.
  • Push connectors
  • Exclusive cone geometry, dust cover and basket design to achieve wide linear excursion (9 mm in one direction), while keeping the depth required for mounting to a minimum.
  • Holes in the basket under the spider that eliminate the need for the center hole in the bottom-plate and allow installation flush against the rear wall of the box.
  • Impressive magnetic assembly optimized with FEM (Finite Element Modeling) methods for perfect control under wide excursion conditions.
  • 20 cm cellulose fiber cone with water-repellent treatment, with a profile developed using FEM simulations and optimized with Klippel Scan Vibrometer.
  • Designed to deliver best performance in combination with Audison amplifiers AP8.9 bit (2 channels bridged), AP4.9 bit/AP4 D (2 channels bridged).
  • Metal mesh grille and plastic gasket included.

Scheda tecnica

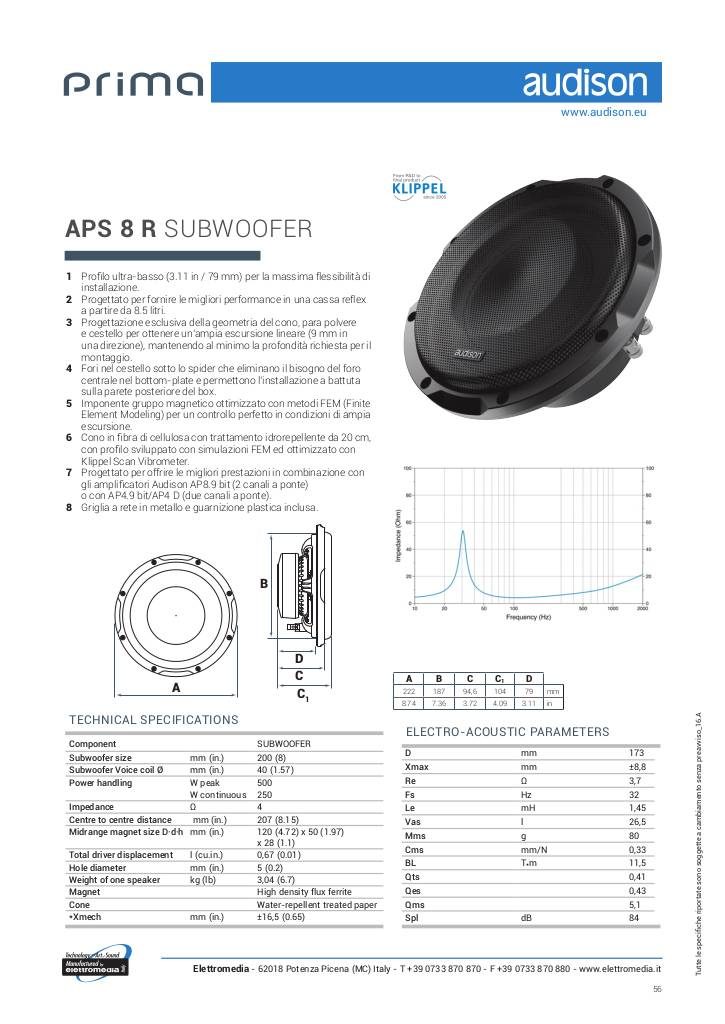

n-20161128152852-aps-8-r-scheda-tecnica-tech-sheet.pdf

manuale e progetti box subwoofer

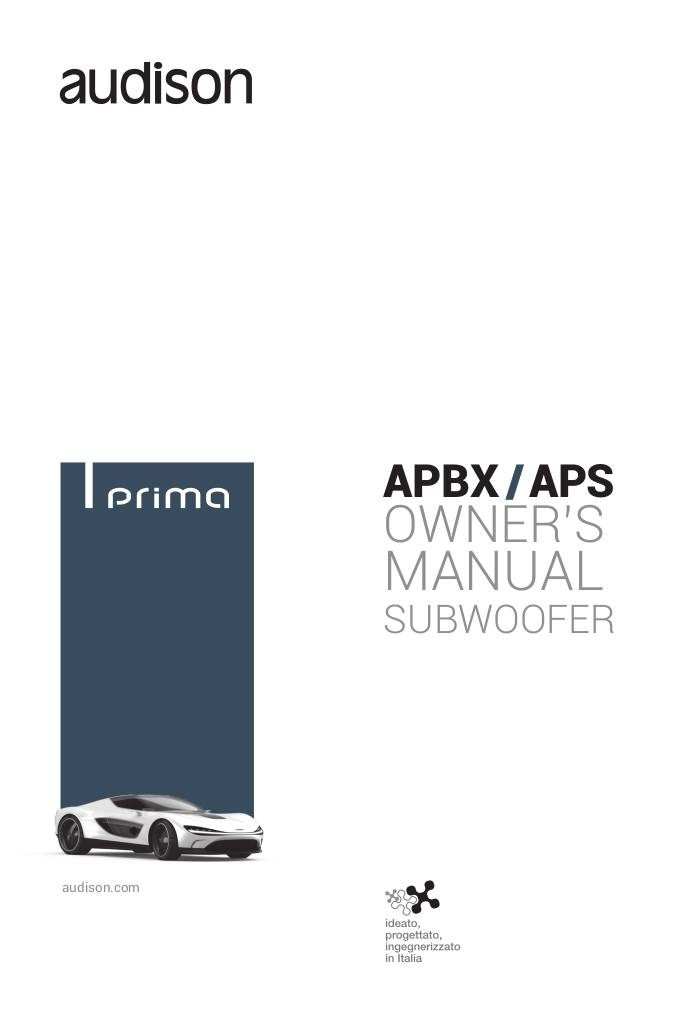

n-20220811232314-jbl009-audison-prima-apbx-aps-owner-manual-revn-x-web.pdf

Audison APS 8 R Technical Specifications

  • Nominal diameter 200 mm (8")
  • Impedance 4 Ohm
  • Power handling - Peak 500 W
  • Power handling - continuous 250 W
  • Sensitivity 84 dB
  • Voice coil Ø 40 mm (1.6 inches)
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Magnet dimensions D x d x h 120 x 50 x 28 mm (in.)
  • Cone material Water-repellent printed paper
  • Xmax 8.8 mm (0.35 inches)
  • Xmech 16.5 mm (0.65 inches)
  • Driver displacement volume 0.67 l (0.024 ft)
  • Weight 3.04 kg

Electrical-acoustic specifications

  • Re 3.7 Ohm
  • Fs 32 Hz
  • Le 1.45 mH
  • Vas 26.5 l (0.936 ft)
  • Mms 80 g (2.822 oz)
  • Cms 0.33 mm/N
  • BL 11.5 T-m
  • Qts 0.41
  • Qes 0.43
  • Qms 5.1
